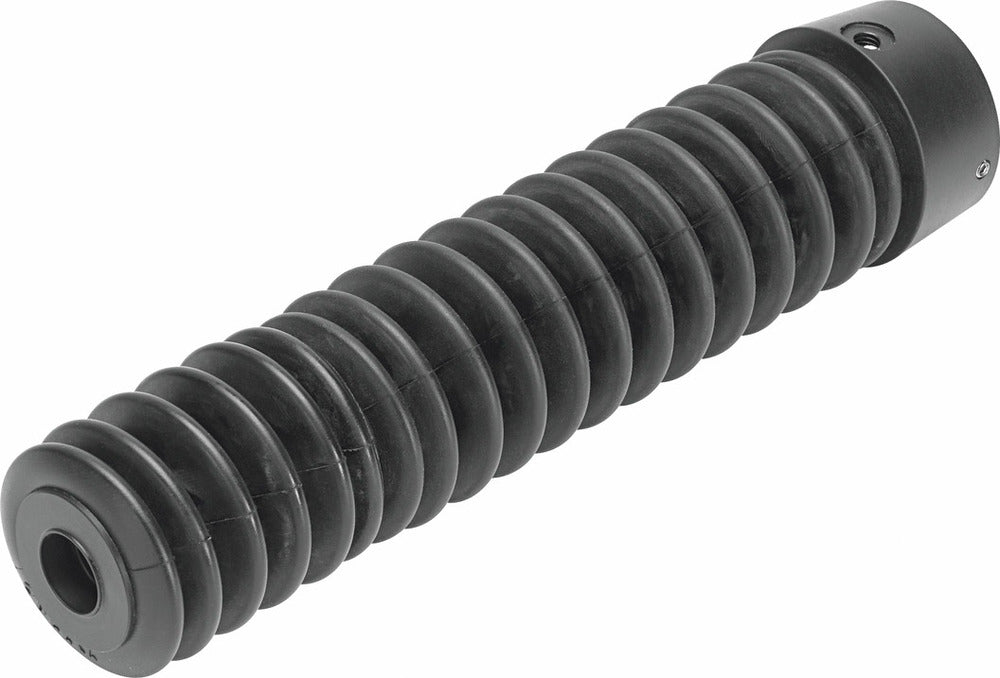

Festo Bellows Kit Size 32 Stroke 51..125mm - 553443

Festo Bellows Kit Size 32 Stroke 51..125mm - 553443
Festo Bellows Kit Size 32 Stroke 51..125mm - 553443
Reference: P2HKH
Brand: Festo
Mfr. Part: DADB-S1-32-S51-125

Festo Bellows Kit Size 32 Stroke 51..125mm - 553443

View all
£112.76
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads

Description

Festo Bellows Kit Size 32 Stroke 51..125mm - 553443

Downloads

Product datasheet (EN)
pdf
Download
Brochure - DSNU_ENUS
pdf
Download
Brochure - DSBC_ENUS
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/8 inch
Sensor mounting style
Bellows kit, With ducted exhaust air
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP54
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Temperature (°C)
-10 °C to 80 °C
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
NBR (nitrile rubber)
Outer diameter (mm)
38
Mounting method
With threaded pin, With external thread
Corrosion resistance class (CRC)
3 - High corrosion stress
Note on materials
RoHS-compliant
Size
32
Bellows material
NBR (nitrile rubber)
Threaded pin material
High-alloy stainless steel
Design
Round
Stroke range (mm)
51 mm to 125 mm
Piston rod extension (mm)
48
Media resistance
Dust, Chips, Oil, Grease, Petrol
Adaption parts material
PA-reinforced
