Festo Compact Cylinder 12mm Bore 40mm Stroke ISO 21287 Double Acting - 554211

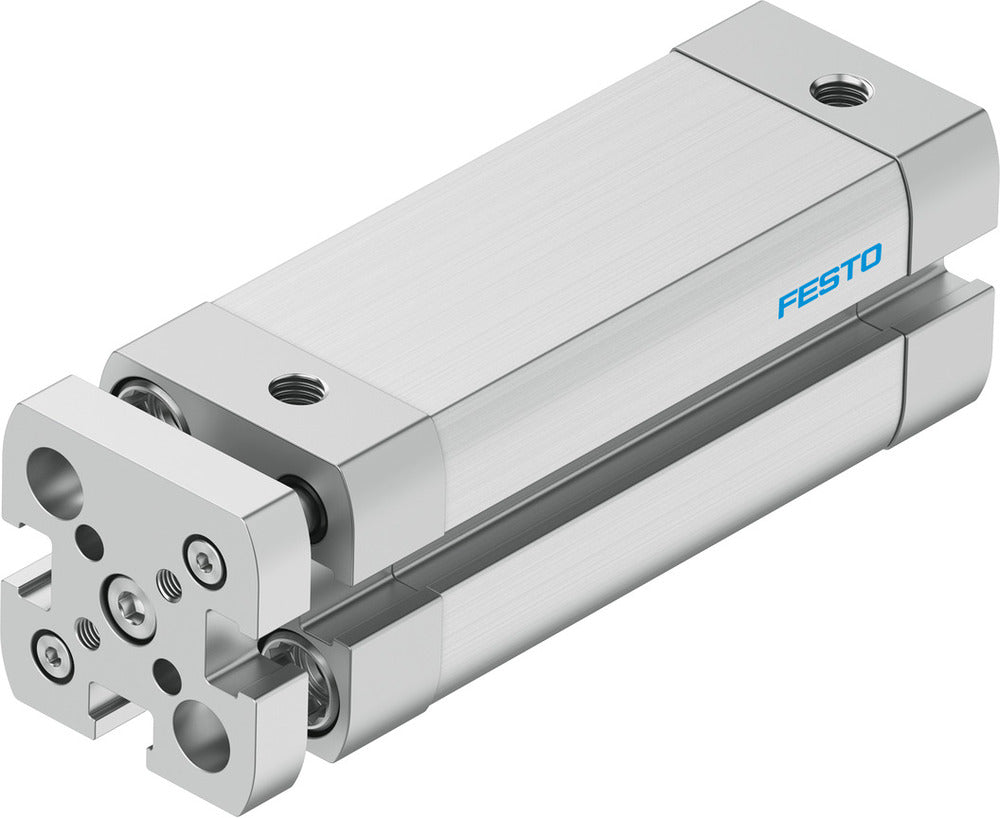

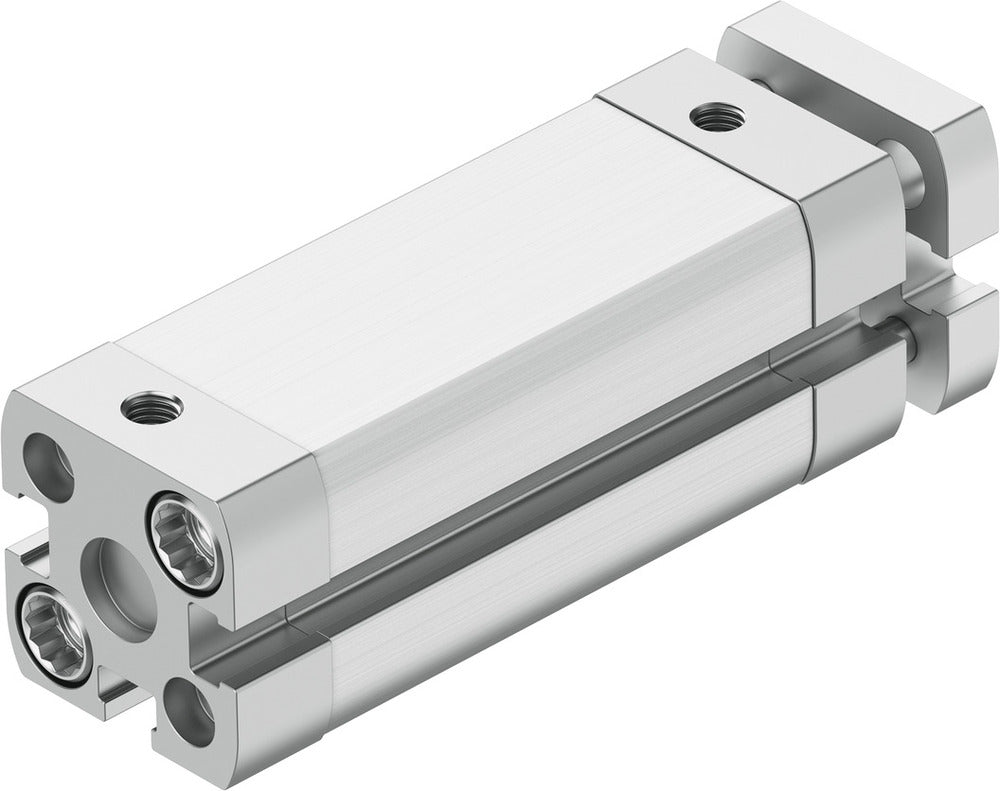

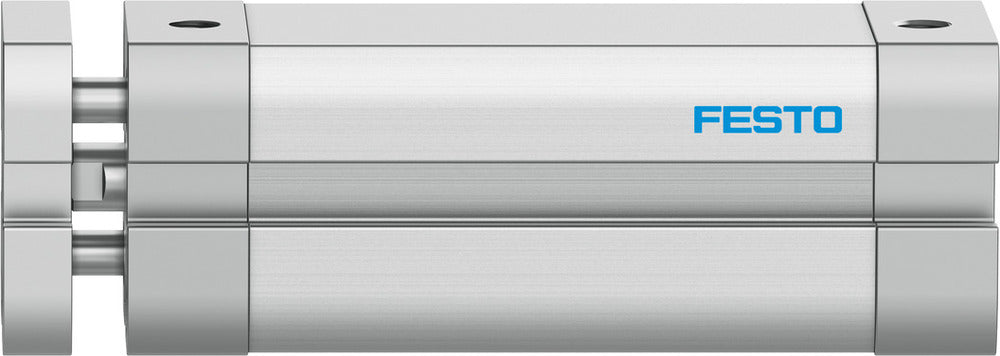

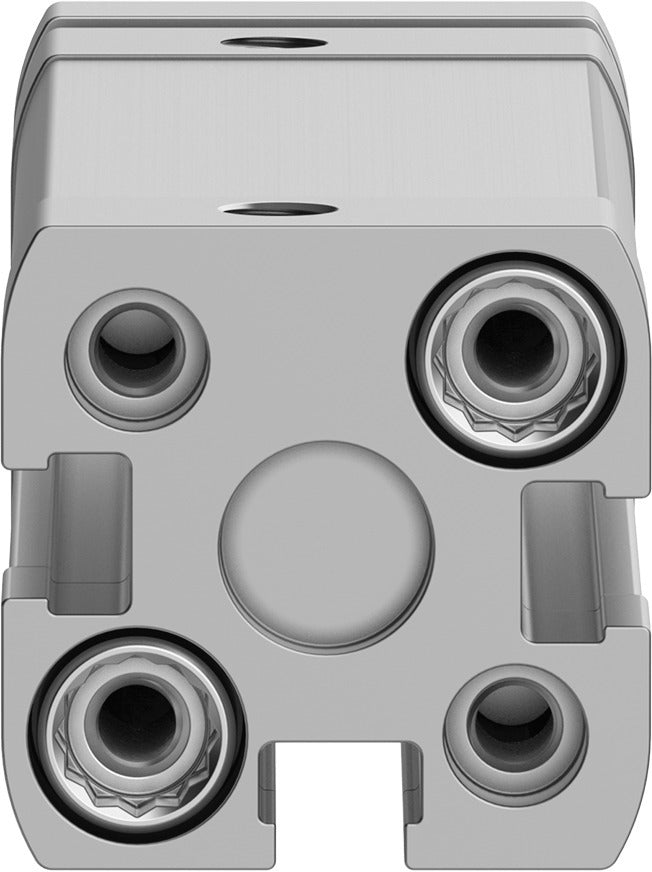

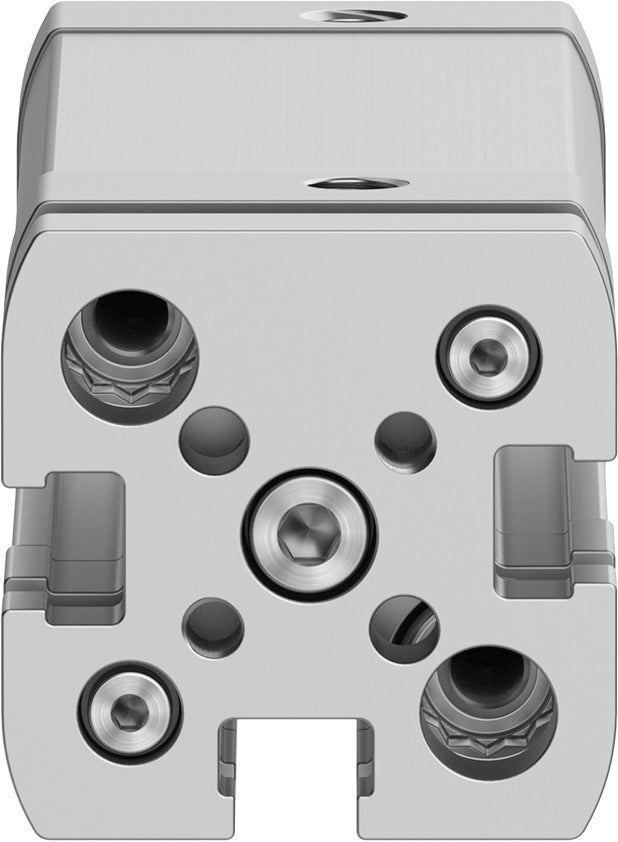

This compact air cylinder features a 12 mm piston diameter and 40 mm stroke, delivering a theoretical force of 68 N at 6 bar when advancing. The double-acting cylinder includes elastic cushioning rings at both ends and is compatible with proximity sensors for position sensing. Designed to ISO 21287 standards, it incorporates a guide rod and yoke plate to secure the piston rod against rotation and enhance load capacity. The magnetic piston enables reliable position detection in automated systems.
- Regular price
- £82.62
Description
This compact air cylinder features a 12 mm piston diameter and 40 mm stroke, delivering a theoretical force of 68 N at 6 bar when advancing. The double-acting cylinder includes elastic cushioning rings at both ends and is compatible with proximity sensors for position sensing. Designed to ISO 21287 standards, it incorporates a guide rod and yoke plate to secure the piston rod against rotation and enhance load capacity. The magnetic piston enables reliable position detection in automated systems.
