Festo Compact Cylinder 25mm Bore 15mm Stroke Double Acting - 156782

Festo Compact Cylinder 25mm Bore 15mm Stroke Double Acting - 156782
Festo Compact Cylinder 25mm Bore 15mm Stroke Double Acting - 156782
Festo Compact Cylinder 25mm Bore 15mm Stroke Double Acting - 156782
Festo Compact Cylinder 25mm Bore 15mm Stroke Double Acting - 156782
Reference: P2FTM
Brand: Festo
Mfr. Part: ADVULQ-25-15-A-P-A

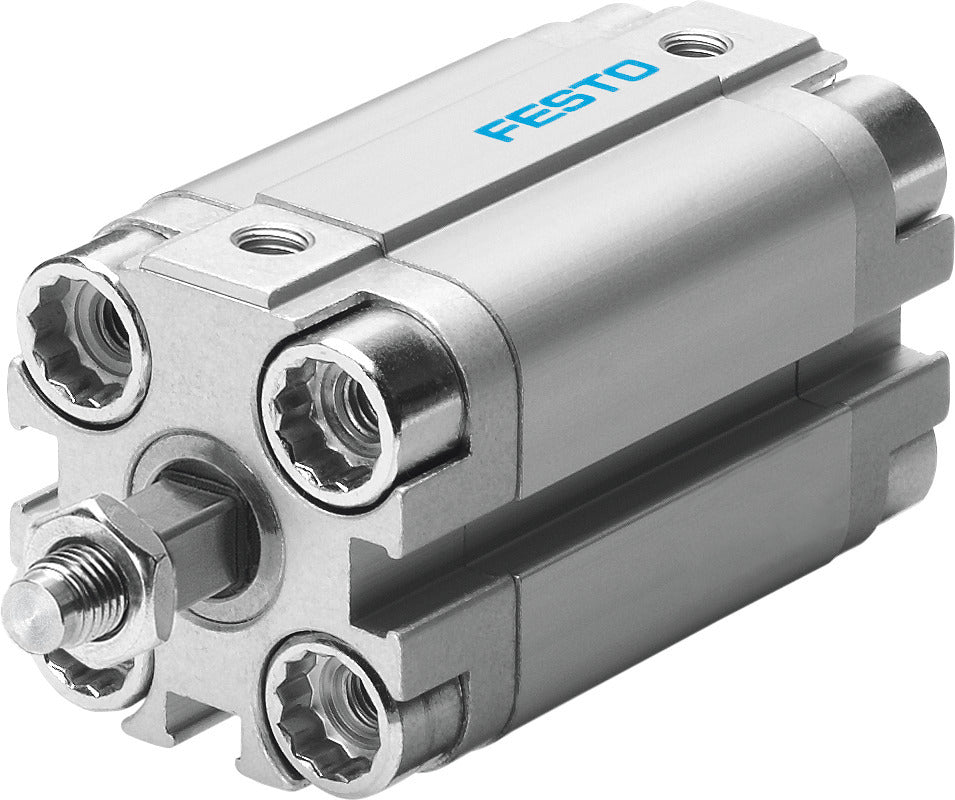

This compact, double-acting air cylinder offers a space-efficient solution for pneumatic applications, requiring 50% less installation space compared to standard ISO 15552 cylinders. With a 25 mm piston diameter and 15 mm stroke, it delivers a theoretical force of 295 N at 6 bar when advancing. The cylinder features elastic cushioning rings at both ends for smooth operation and includes a magnetic piston for position sensing. Its compact design and performance characteristics make it suitable for various industrial automation tasks where space is at a premium.

View all
£166.10
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This compact, double-acting air cylinder offers a space-efficient solution for pneumatic applications, requiring 50% less installation space compared to standard ISO 15552 cylinders. With a 25 mm piston diameter and 15 mm stroke, it delivers a theoretical force of 295 N at 6 bar when advancing. The cylinder features elastic cushioning rings at both ends for smooth operation and includes a magnetic piston for position sensing. Its compact design and performance characteristics make it suitable for various industrial automation tasks where space is at a premium.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - ADVU_ENUS
pdf
Download

Specifications

Piston diameter (mm)
Diameter of the piston that moves inside the cylinder.
25
Stroke (mm)
The stroke length is how far the piston travels inside the cylinder.
15
Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Double acting
Pressure (bar)
The pressure at which the pneumatic cylinder operates.
1 bar to 10 bar
Max force in (N)
Max force extend is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
247
Max force out (N)
Max force retract is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
295
Cylinder feature
Additional features or capabilities of the cylinder.
Reed switch, Operation with oil lubrication possible
Connection size
The size of the connection ports for the air hoses.
M5
Connection type
Refers to the type of port connection used on the pneumatic cylinder. This parameter is important in selecting the appropriate fittings or silencers to ensure proper installation and operation of the cylinder.
Inner thread metric
Temperature (°C)
Safe and efficient operating temperature range.
-20 °C to 80 °C
Rod style
Shape and design of the piston rod.
Single rod - male thread, Square piston rod
Mounting method
With through-hole, With accessories
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Impact energy in the end positions (J)
0.1
Moving mass at 0 mm stroke (g)
26
Additional moving mass per 10 mm stroke (g)
28
Basic weight with 0 mm stroke (g)
180
Additional weight per 10 mm stroke (g)
6
