Festo Compact Cylinder 32mm Bore 10mm Stroke Single Acting - 157273

Festo Compact Cylinder 32mm Bore 10mm Stroke Single Acting - 157273
Festo Compact Cylinder 32mm Bore 10mm Stroke Single Acting - 157273
Festo Compact Cylinder 32mm Bore 10mm Stroke Single Acting - 157273
Festo Compact Cylinder 32mm Bore 10mm Stroke Single Acting - 157273
Reference: P2G4Z
Brand: Festo
Mfr. Part: AEVUZ-32-10-A-P-A

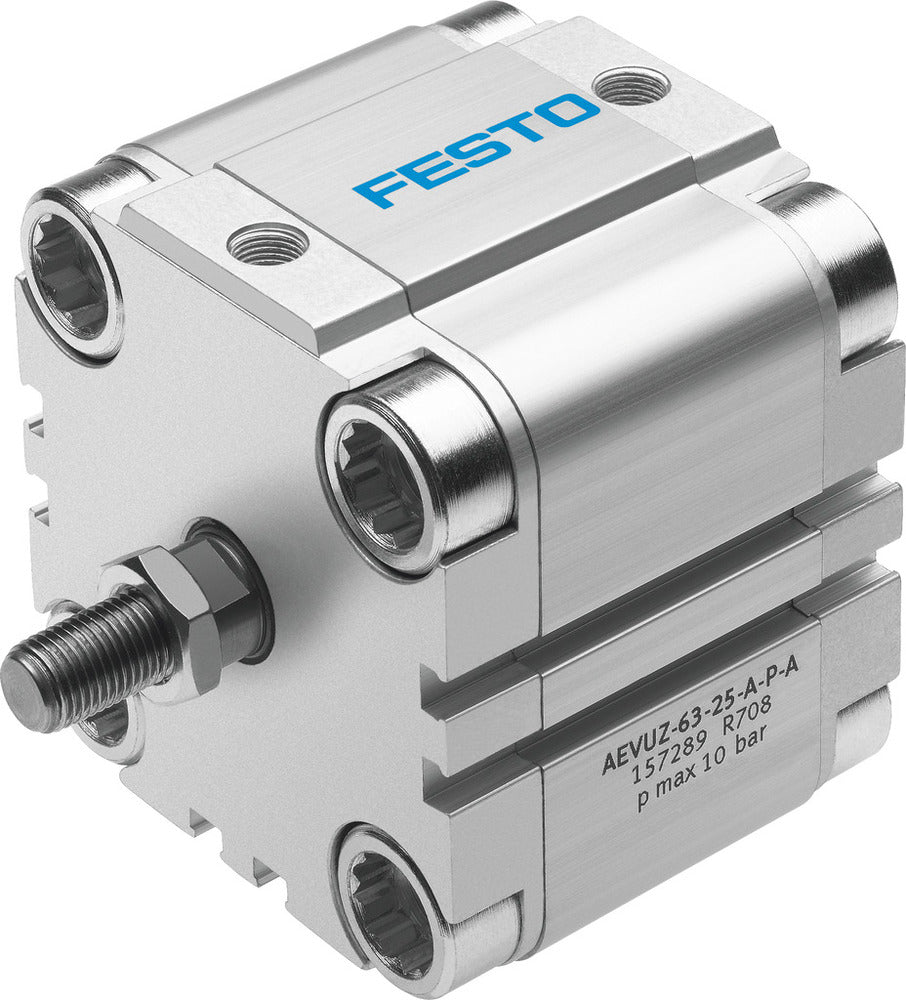

This compact air cylinder offers space-efficient pneumatic actuation with a 32 mm piston diameter and 10 mm stroke. The single-acting, pulling design provides a theoretical force of 382 N at 6 bar, suitable for various industrial applications. Featuring elastic cushioning rings at both ends for smooth operation and a magnetic piston for position sensing, this cylinder combines performance with versatility. Its compact design requires 50% less installation space compared to standard ISO 15552 cylinders, making it ideal for applications with limited space constraints.

View all
£172.34
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This compact air cylinder offers space-efficient pneumatic actuation with a 32 mm piston diameter and 10 mm stroke. The single-acting, pulling design provides a theoretical force of 382 N at 6 bar, suitable for various industrial applications. Featuring elastic cushioning rings at both ends for smooth operation and a magnetic piston for position sensing, this cylinder combines performance with versatility. Its compact design requires 50% less installation space compared to standard ISO 15552 cylinders, making it ideal for applications with limited space constraints.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - ADVU_ENUS
pdf
Download

Specifications

Piston diameter (mm)
Diameter of the piston that moves inside the cylinder.
32
Stroke (mm)
The stroke length is how far the piston travels inside the cylinder.
10
Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Single-action pulling
Pressure (bar)
The pressure at which the pneumatic cylinder operates.
0.8 bar to 10 bar
Max force out (N)
Max force retract is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
382
Cylinder feature
Additional features or capabilities of the cylinder.
Reed switch, Operation with oil lubrication possible
Connection size
The size of the connection ports for the air hoses.
1/8 inch
Connection type
Refers to the type of port connection used on the pneumatic cylinder. This parameter is important in selecting the appropriate fittings or silencers to ensure proper installation and operation of the cylinder.
Inner thread cylindrical BSPP-G
Temperature (°C)
Safe and efficient operating temperature range.
-20 °C to 80 °C
Rod style
Shape and design of the piston rod.
Single rod - male thread
Mounting method
With through-hole, With accessories
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Impact energy in the end positions (J)
0.4
Moving mass at 0 mm stroke (g)
49
Additional moving mass per 10 mm stroke (g)
40
Basic weight with 0 mm stroke (g)
300
Additional weight per 10 mm stroke (g)
9
Piston rod material
High-alloy stainless steel
