Reference: P2D7G
Brand: Festo
Mfr. Part: DPDM-Q-6-15-P-PA

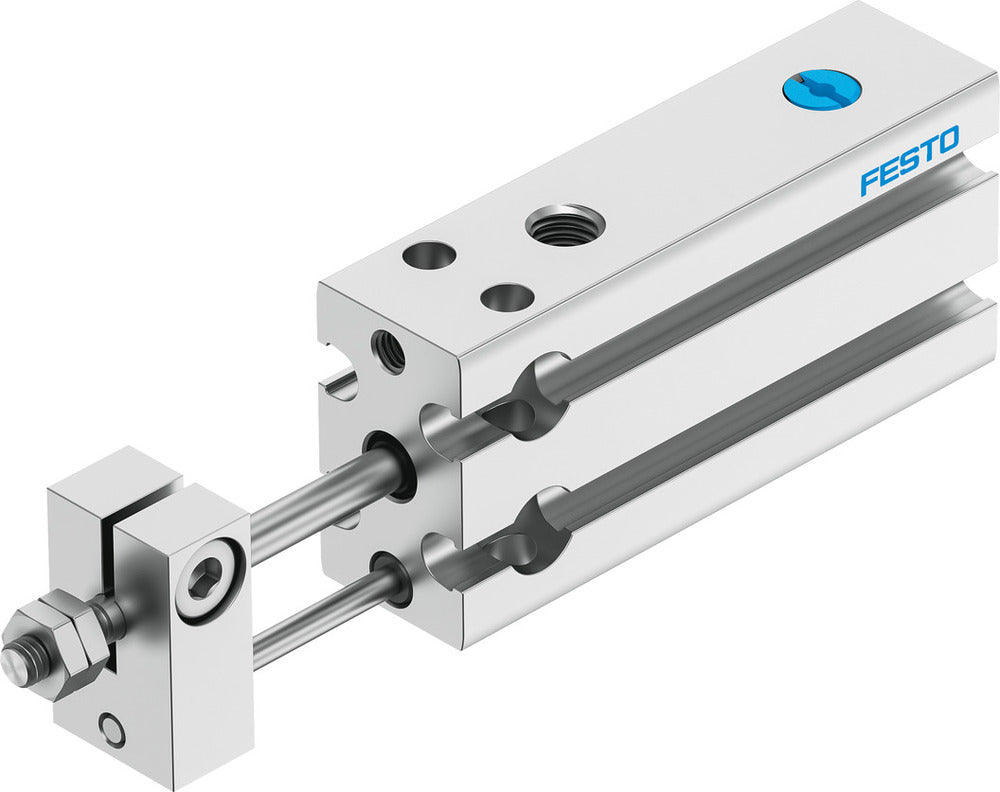

This compact air cylinder features a 6 mm piston diameter and 15 mm stroke, delivering a theoretical force of 9 N at 6 bar when advancing. The single-acting, pulling design includes protection against rotation and elastic cushioning rings at both ends. Its compact size and direct mounting options via through-hole and internal thread make it ideal for space-constrained applications. The magnetic piston allows for position sensing, enhancing control and precision in automated systems.

View all
£73.63
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads

Description

This compact air cylinder features a 6 mm piston diameter and 15 mm stroke, delivering a theoretical force of 9 N at 6 bar when advancing. The single-acting, pulling design includes protection against rotation and elastic cushioning rings at both ends. Its compact size and direct mounting options via through-hole and internal thread make it ideal for space-constrained applications. The magnetic piston allows for position sensing, enhancing control and precision in automated systems.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - DPDM_ENUS
pdf
Download

Specifications

Piston diameter (mm)
Diameter of the piston that moves inside the cylinder.
6
Stroke (mm)
The stroke length is how far the piston travels inside the cylinder.
15
Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Single-action pulling
Pressure (bar)
The pressure at which the pneumatic cylinder operates.
2.5 bar to 8 bar
Max force in (N)
Max force extend is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
9
Max force out (N)
Max force retract is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
9
Cylinder feature
Additional features or capabilities of the cylinder.
Reed switch, Operation with oil lubrication possible
Connection size
The size of the connection ports for the air hoses.
M5
Connection type
Refers to the type of port connection used on the pneumatic cylinder. This parameter is important in selecting the appropriate fittings or silencers to ensure proper installation and operation of the cylinder.
Inner thread metric
Material
The material used to construct the outer casing of the pneumatic cylinder. It determines the cylinder's durability, resistance to corrosion, and other environmental factors.
Aluminum alloy anodized
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
Polyurethane (PUR)
Temperature (°C)
Safe and efficient operating temperature range.
-10 °C to 80 °C
Rod style
Shape and design of the piston rod.
Single rod, Guide rod with yoke
Mounting method
With through-hole, With internal thread
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Structural design
Piston, Piston rod, Profile barrel
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
1 - Low corrosion stress
Moving mass at 0 mm stroke (g)
7.5
Additional moving mass per 10 mm stroke (g)
6.3
