Festo Compact Cylinder 80mm Bore 10mm Stroke Single Acting - 157106

Festo Compact Cylinder 80mm Bore 10mm Stroke Single Acting - 157106
Festo Compact Cylinder 80mm Bore 10mm Stroke Single Acting - 157106
Festo Compact Cylinder 80mm Bore 10mm Stroke Single Acting - 157106
Festo Compact Cylinder 80mm Bore 10mm Stroke Single Acting - 157106
Reference: P2G2S
Brand: Festo
Mfr. Part: AEVULQ-80-10-A-P-A

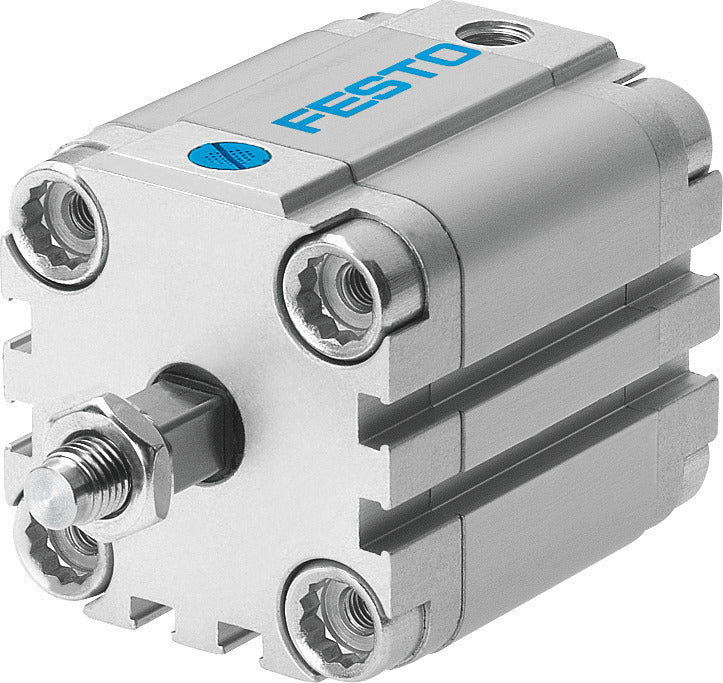

This compact air cylinder offers a space-efficient solution with a 50% smaller footprint compared to standard ISO 15552 cylinders. Featuring a piston diameter of 80 mm and a 10 mm stroke, it delivers a theoretical force of 2902 N at 6 bar in pushing operation. The single-acting design includes elastic cushioning rings at both ends for smooth operation. With a magnetic piston for position sensing, this cylinder provides precise control in confined spaces, making it suitable for various industrial applications where space optimization is crucial.

View all
£439.21
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This compact air cylinder offers a space-efficient solution with a 50% smaller footprint compared to standard ISO 15552 cylinders. Featuring a piston diameter of 80 mm and a 10 mm stroke, it delivers a theoretical force of 2902 N at 6 bar in pushing operation. The single-acting design includes elastic cushioning rings at both ends for smooth operation. With a magnetic piston for position sensing, this cylinder provides precise control in confined spaces, making it suitable for various industrial applications where space optimization is crucial.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - ADVU_ENUS
pdf
Download

Specifications

Piston diameter (mm)
Diameter of the piston that moves inside the cylinder.
80
Stroke (mm)
The stroke length is how far the piston travels inside the cylinder.
10
Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Pushing single-acting
Pressure (bar)
The pressure at which the pneumatic cylinder operates.
0.6 bar to 10 bar
Max force out (N)
Max force retract is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
2902
Cushioning
Elastic cushioning rings/pads at both ends
Cylinder feature
Additional features or capabilities of the cylinder.
Reed switch, Operation with oil lubrication possible
Connection size
The size of the connection ports for the air hoses.
1/8 inch
Connection type
Refers to the type of port connection used on the pneumatic cylinder. This parameter is important in selecting the appropriate fittings or silencers to ensure proper installation and operation of the cylinder.
Inner thread cylindrical BSPP-G
Temperature (°C)
Safe and efficient operating temperature range.
-20 °C to 80 °C
Rod style
Shape and design of the piston rod.
Single rod - male thread, Square piston rod
Mounting method
With through-hole, With accessories
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Impact energy in the end positions (J)
0.75
Moving mass at 0 mm stroke (g)
307
Additional moving mass per 10 mm stroke (g)
168
Basic weight with 0 mm stroke (g)
1772
Additional weight per 10 mm stroke (g)
25
