Reference: P2FPJ
Brand: Festo
Mfr. Part: ADVU-80-20-A-P-A

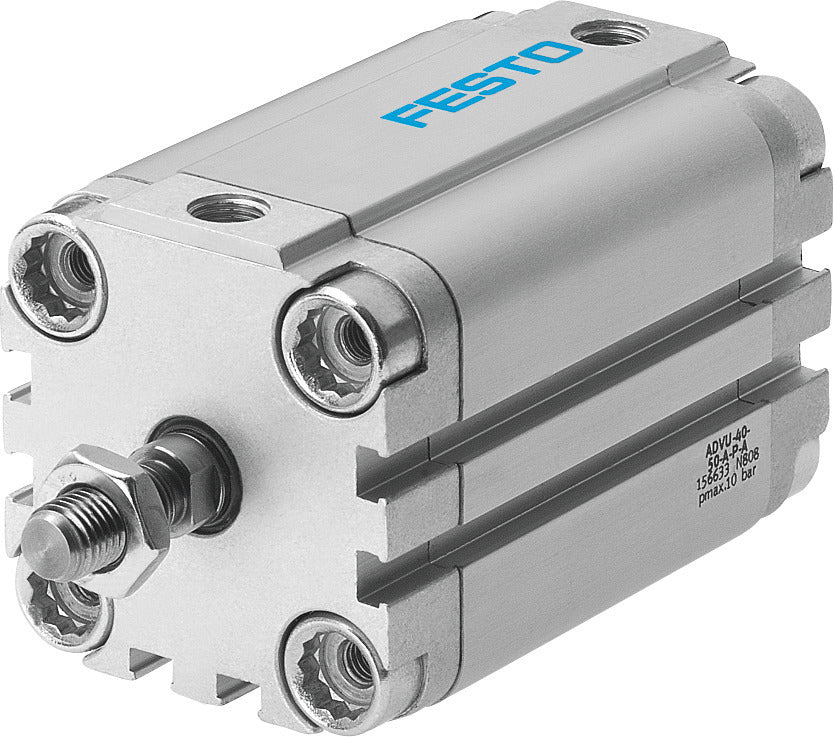

This compact air cylinder offers a space-efficient solution with 50% less installation space compared to standard ISO 15552 cylinders. The double-acting cylinder features a piston diameter of 80 mm and a stroke of 20 mm, delivering a theoretical force of 3016 N at 6 bar when advancing. Equipped with elastic cushioning rings at both ends and a magnetic piston for position sensing, this cylinder provides precise control and smooth operation in confined spaces.

View all
£373.07
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This compact air cylinder offers a space-efficient solution with 50% less installation space compared to standard ISO 15552 cylinders. The double-acting cylinder features a piston diameter of 80 mm and a stroke of 20 mm, delivering a theoretical force of 3016 N at 6 bar when advancing. Equipped with elastic cushioning rings at both ends and a magnetic piston for position sensing, this cylinder provides precise control and smooth operation in confined spaces.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - ADVU_ENUS
pdf
Download

Specifications

Piston diameter (mm)
Diameter of the piston that moves inside the cylinder.
80
Stroke (mm)
The stroke length is how far the piston travels inside the cylinder.
20
Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Double acting
Pressure (bar)
The pressure at which the pneumatic cylinder operates.
0.6 bar to 10 bar
Max force in (N)
Max force extend is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
2827
Max force out (N)
Max force retract is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
3016
Cylinder feature
Additional features or capabilities of the cylinder.
Reed switch, Operation with oil lubrication possible
Connection size
The size of the connection ports for the air hoses.
1/8 inch
Connection type
Refers to the type of port connection used on the pneumatic cylinder. This parameter is important in selecting the appropriate fittings or silencers to ensure proper installation and operation of the cylinder.
Inner thread cylindrical BSPP-G
Temperature (°C)
Safe and efficient operating temperature range.
-20 °C to 80 °C
Rod style
Shape and design of the piston rod.
Single rod - male thread
Mounting method
With through-hole, With accessories
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Impact energy in the end positions (J)
0.75
Moving mass at 0 mm stroke (g)
307
Additional moving mass per 10 mm stroke (g)
168
Basic weight with 0 mm stroke (g)
1772
Additional weight per 10 mm stroke (g)
25
