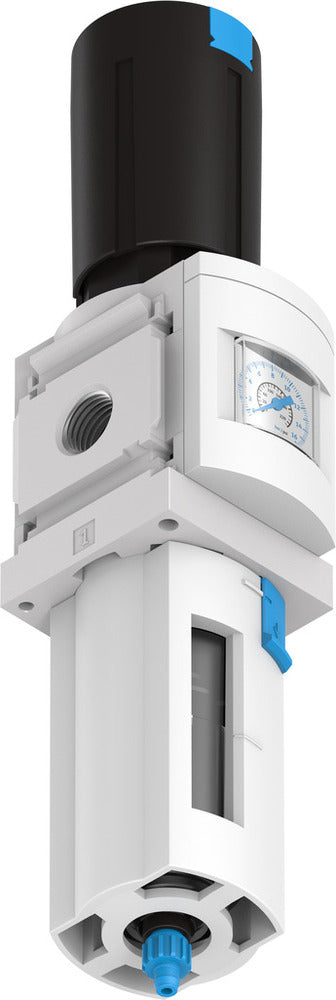

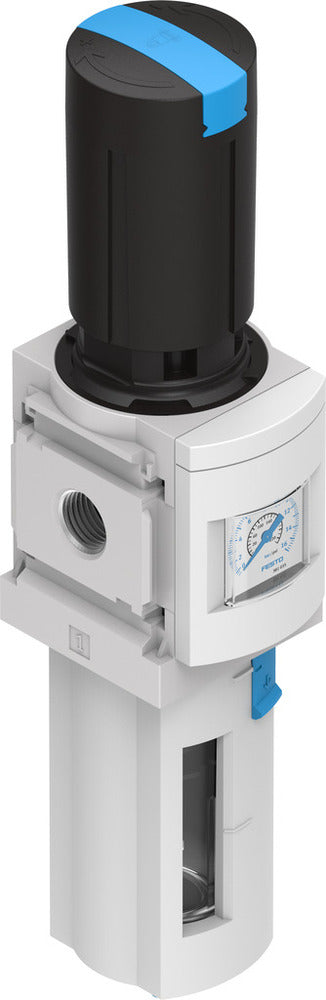

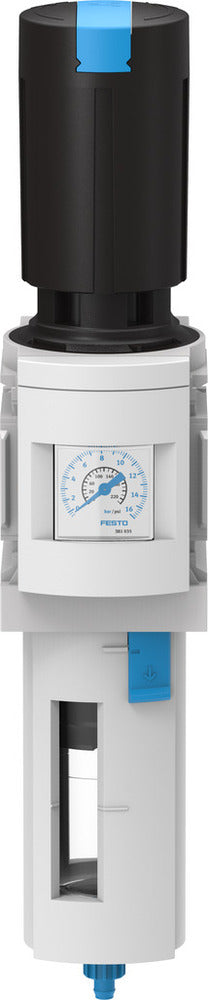

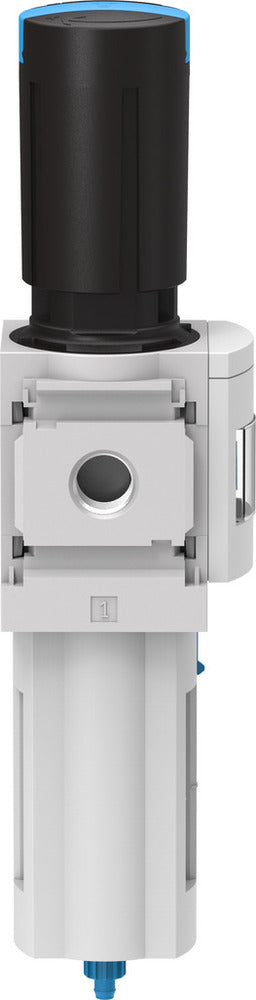

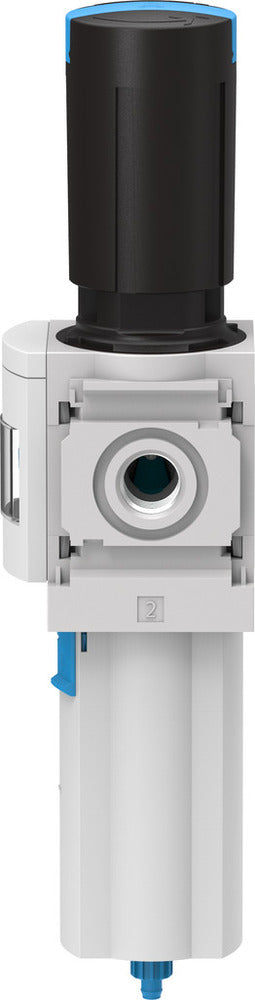

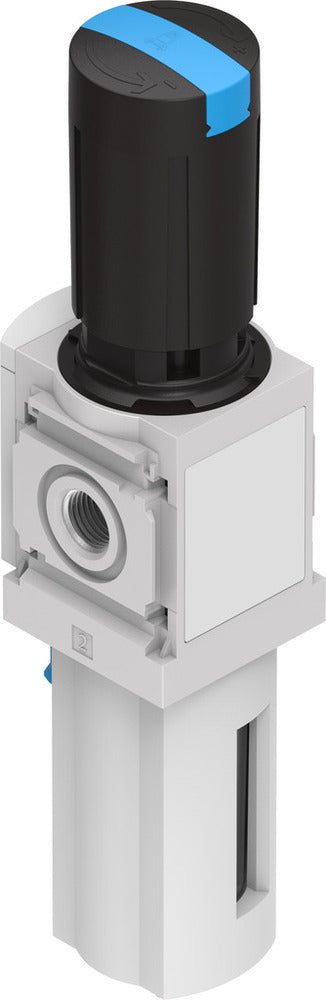

Festo Compressed Air Filter Regulator G1/2'' 0.3-7bar 6200l/min 40µm - 529180
This compressed air filter regulator combines pressure regulation and filtration in a compact 62 mm width unit. It offers a standard nominal flow rate of 6200 l/min and a pressure regulation range of 0.3 - 7 bar. The G1/2 pneumatic connection and 40 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. A lockable rotary knob allows for secure pressure settings, while the integrated return flow option enables exhausting from output to input.
- Regular price
- £88.31
Description
This compressed air filter regulator combines pressure regulation and filtration in a compact 62 mm width unit. It offers a standard nominal flow rate of 6200 l/min and a pressure regulation range of 0.3 - 7 bar. The G1/2 pneumatic connection and 40 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. A lockable rotary knob allows for secure pressure settings, while the integrated return flow option enables exhausting from output to input.
