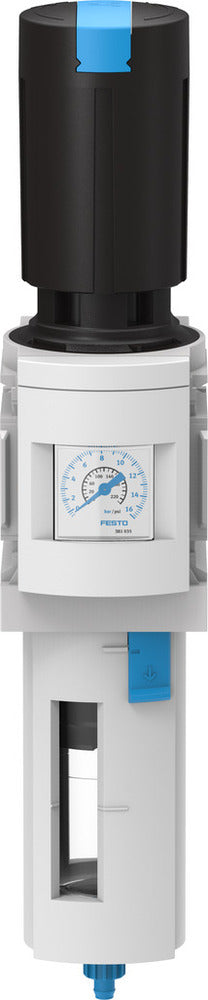

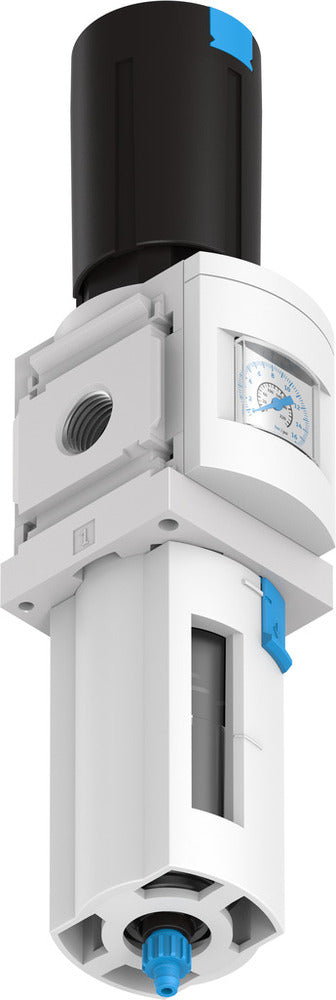

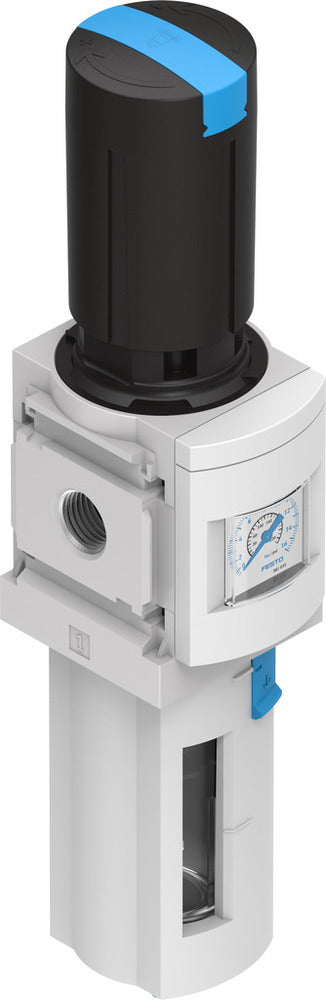

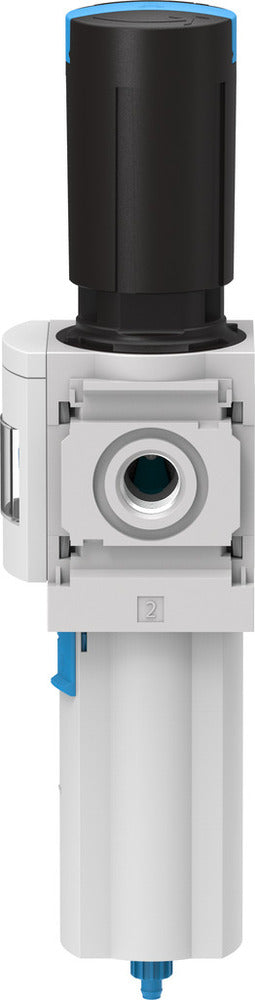

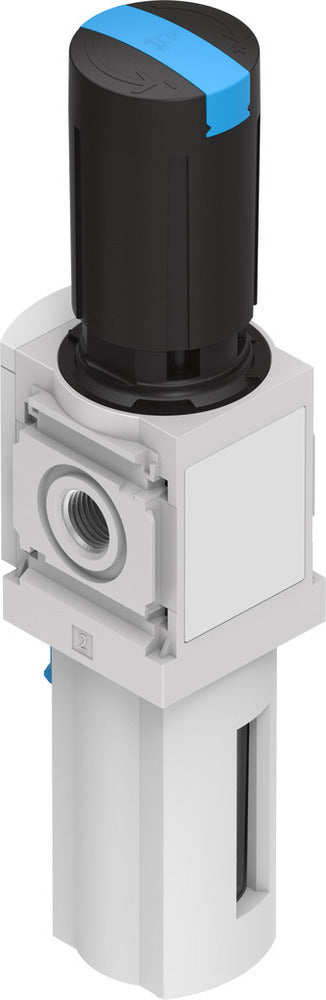

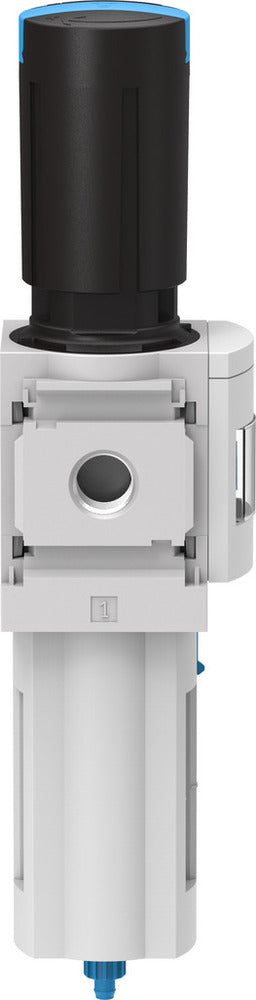

Festo Compressed Air Filter Regulator G1/2'' 0.5-12bar 4500l/min 40µm - 529189
This compressed air filter regulator combines pressure regulation and filtration in a compact 62 mm wide unit. It offers a standard nominal flow rate of 4500 l/min and a pressure regulation range of 0.5 - 12 bar. The G1/2 pneumatic connection and 40 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. A lockable rotary knob and integrated return flow option enhance functionality for technical applications.
- Regular price
- £88.16
Description
This compressed air filter regulator combines pressure regulation and filtration in a compact 62 mm wide unit. It offers a standard nominal flow rate of 4500 l/min and a pressure regulation range of 0.5 - 12 bar. The G1/2 pneumatic connection and 40 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. A lockable rotary knob and integrated return flow option enhance functionality for technical applications.
