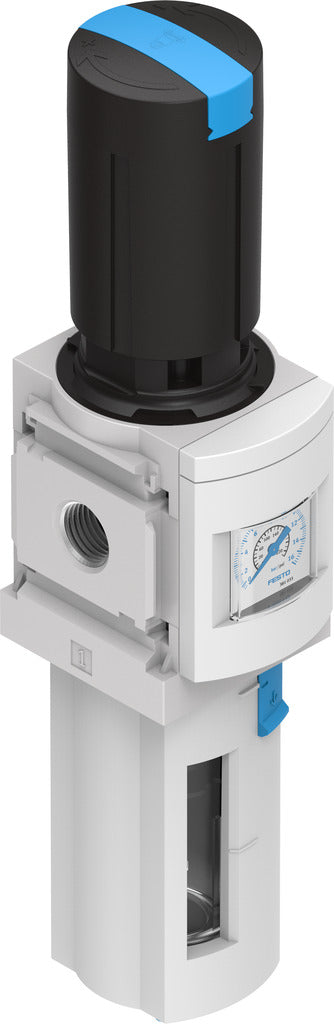

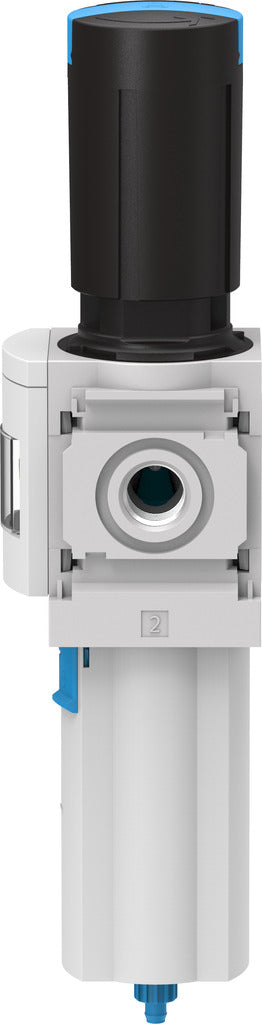

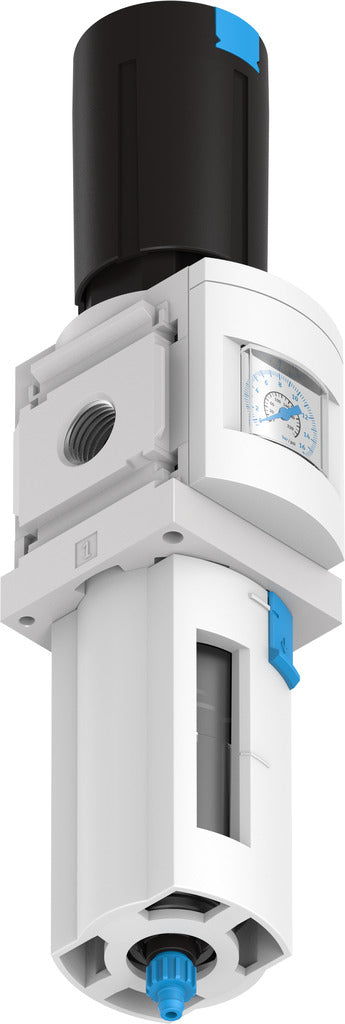

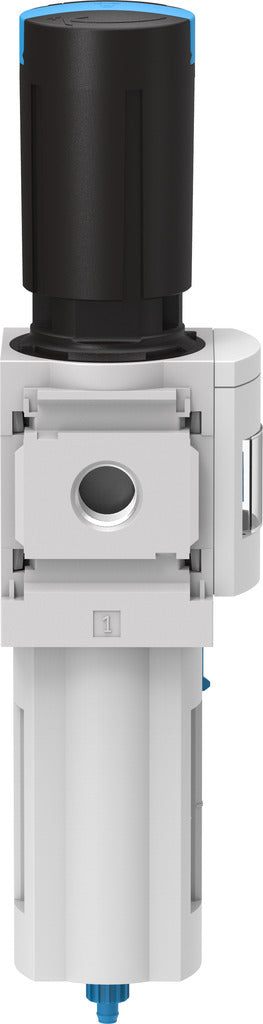

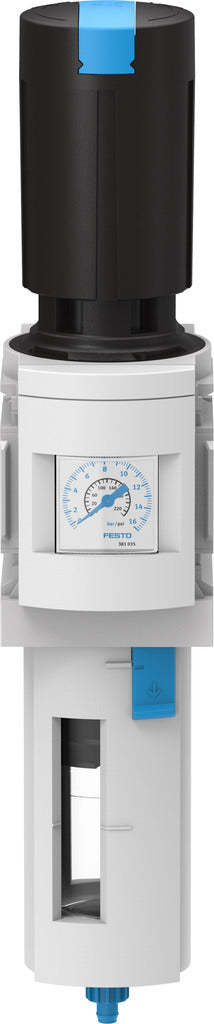

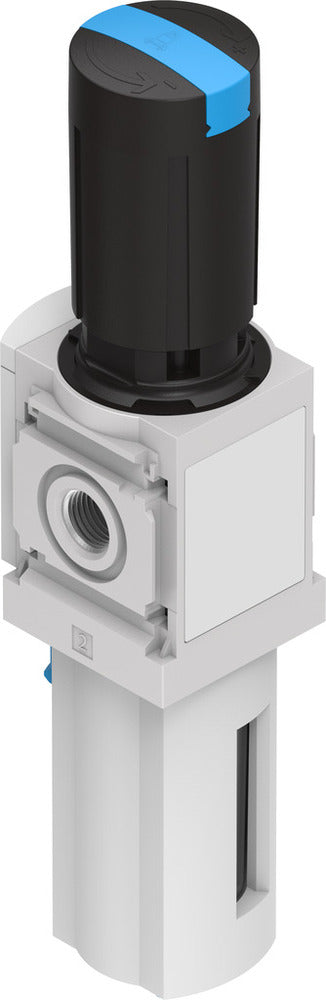

Festo Compressed Air Filter Regulator G3/8'' 0.5-12bar 3500l/min 5µm - 529224
This compressed air filter regulator combines pressure regulation and filtration in a compact 62 mm wide unit. It offers a standard nominal flow rate of 3500 l/min and a pressure regulation range of 0.5 - 12 bar. The G3/8 pneumatic connection and 5 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. The lockable rotary knob allows for secure pressure settings, while the integrated return flow option enables exhausting from output to input.
- Regular price
- £88.16
Description
This compressed air filter regulator combines pressure regulation and filtration in a compact 62 mm wide unit. It offers a standard nominal flow rate of 3500 l/min and a pressure regulation range of 0.5 - 12 bar. The G3/8 pneumatic connection and 5 µm filtration grade ensure efficient particle and condensate separation. The directly actuated diaphragm regulator provides precise pressure control with minimal hysteresis and primary pressure compensation. The lockable rotary knob allows for secure pressure settings, while the integrated return flow option enables exhausting from output to input.
