Festo Flat Cylinder 20mm Bore 80mm Stroke Double Acting - 151137

Festo Flat Cylinder 20mm Bore 80mm Stroke Double Acting - 151137
Festo Flat Cylinder 20mm Bore 80mm Stroke Double Acting - 151137
Festo Flat Cylinder 20mm Bore 80mm Stroke Double Acting - 151137
Festo Flat Cylinder 20mm Bore 80mm Stroke Double Acting - 151137
Image may vary slightly
See specifications for accurate information.
Reference: P2DZ9
Brand: Festo
Mfr. Part: DZH-20-80-PPV-A

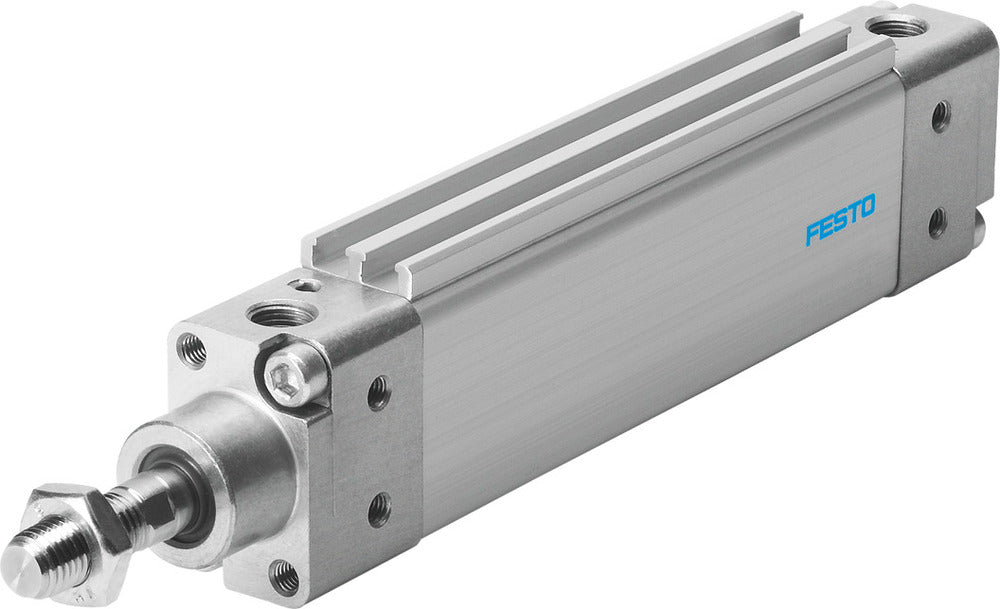

This double-acting flat cylinder features a 20 mm piston diameter and 80 mm stroke, delivering a theoretical force of 188 N at 6 bar when advancing. Its compact design with block mounting capability allows for high packing density in applications. The cylinder includes adjustable pneumatic cushioning at both ends and an anti-rotation feature due to its oval piston shape. It also offers external piston rod threading and magnetic position sensing compatibility, enhancing its versatility in various industrial automation setups.

View all
£209.60
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

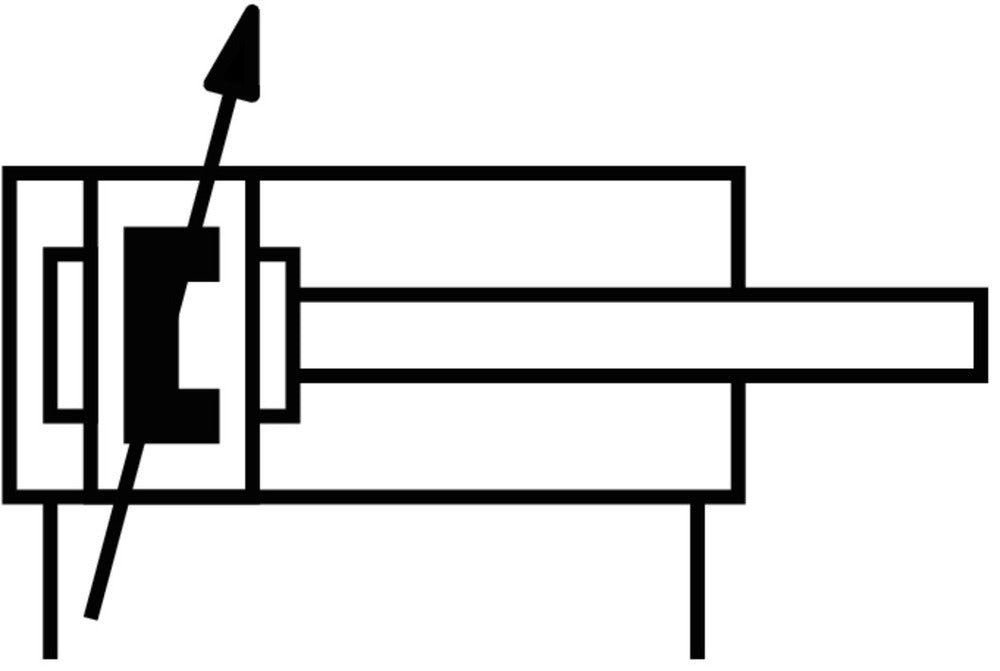

This double-acting flat cylinder features a 20 mm piston diameter and 80 mm stroke, delivering a theoretical force of 188 N at 6 bar when advancing. Its compact design with block mounting capability allows for high packing density in applications. The cylinder includes adjustable pneumatic cushioning at both ends and an anti-rotation feature due to its oval piston shape. It also offers external piston rod threading and magnetic position sensing compatibility, enhancing its versatility in various industrial automation setups.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - EZH-DZF-DZH_ENUS
pdf
Download

Specifications

Piston diameter (mm)i
20
Stroke (mm)i
80
Operationi
Double acting
Pressure (bar)i
1 bar to 10 bar
Max force in (N)i
158
Max force out (N)i
188
Dampingi
Pneumatic cushioning, adjustable at both ends
Cylinder featurei
Reed switch,Operation with oil lubrication possible (required in further operations)
Rod stylei
Oval piston
Connection sizei
1/8 inch
Connection typei
Inner thread cylindrical BSPP-G
Materiali
Aluminium
Seal materiali
Polyurethane (PUR)
Temperature (°C)i
-20 °C to 80 °C
Mounting method
With accessories,With internal thread
Mounting dispositioni
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Additional moving mass per 10 mm stroke (g)
15
Basic weight with 0 mm stroke (g)
230
