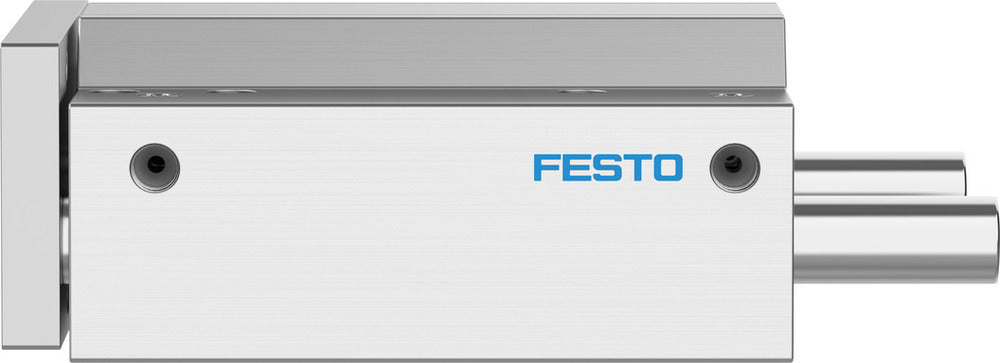

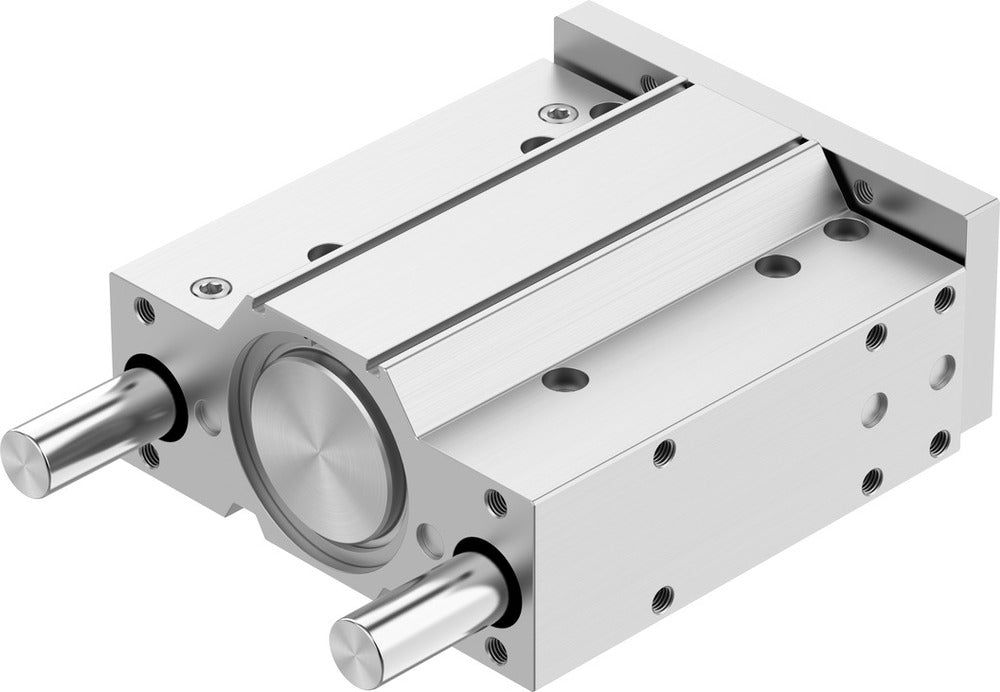

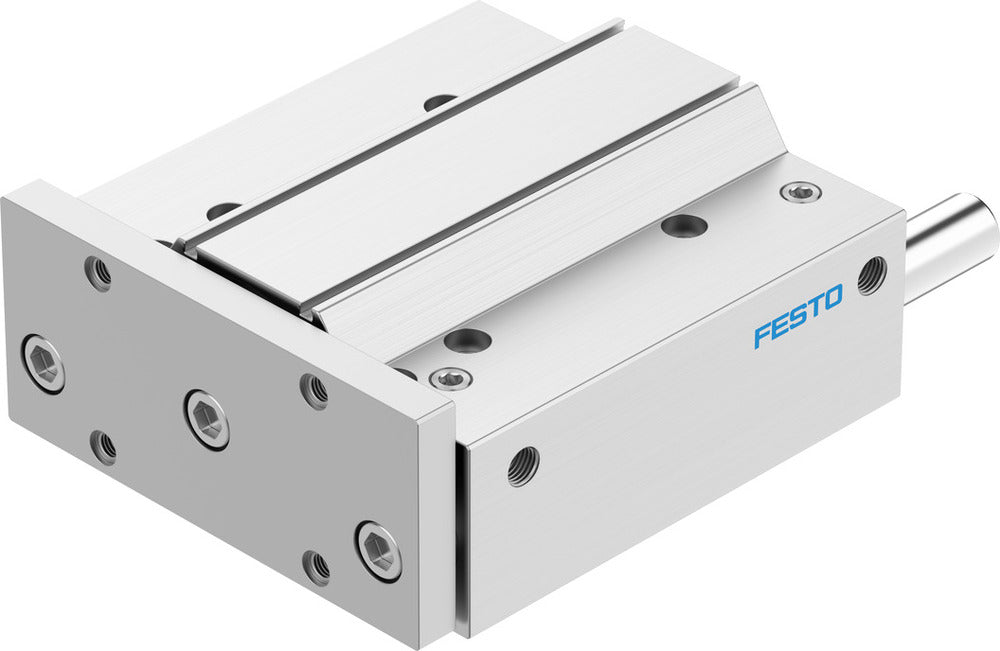

Festo Guided Actuator 100mm Bore 160mm Stroke Double Acting - 170972
The DFM guided actuator combines a recirculating ball bearing guide with a double-acting pneumatic cylinder in a single compact housing. With a 100 mm piston diameter and 160 mm stroke, it delivers a theoretical force of 4712 N at 6 bar when advancing. The design offers high resistance to torques and lateral forces, making it suitable for precise clamping, lifting, and stopping tasks. Elastic cushioning rings at both ends provide smooth operation, while the integrated position sensing capability allows for easy integration with proximity sensors.
- Regular price
- £1,409.21
Description
The DFM guided actuator combines a recirculating ball bearing guide with a double-acting pneumatic cylinder in a single compact housing. With a 100 mm piston diameter and 160 mm stroke, it delivers a theoretical force of 4712 N at 6 bar when advancing. The design offers high resistance to torques and lateral forces, making it suitable for precise clamping, lifting, and stopping tasks. Elastic cushioning rings at both ends provide smooth operation, while the integrated position sensing capability allows for easy integration with proximity sensors.
