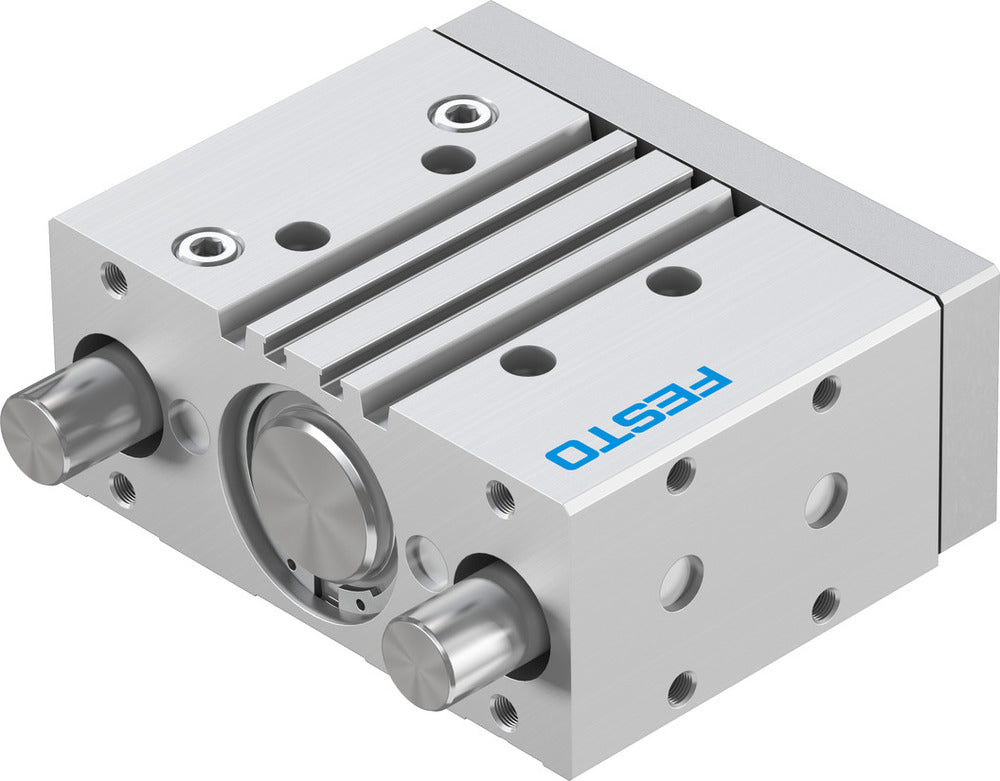

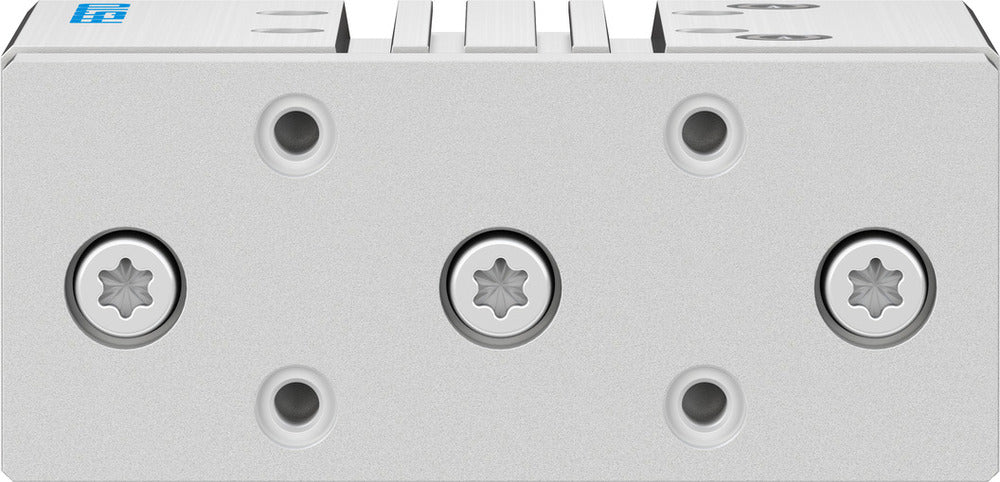

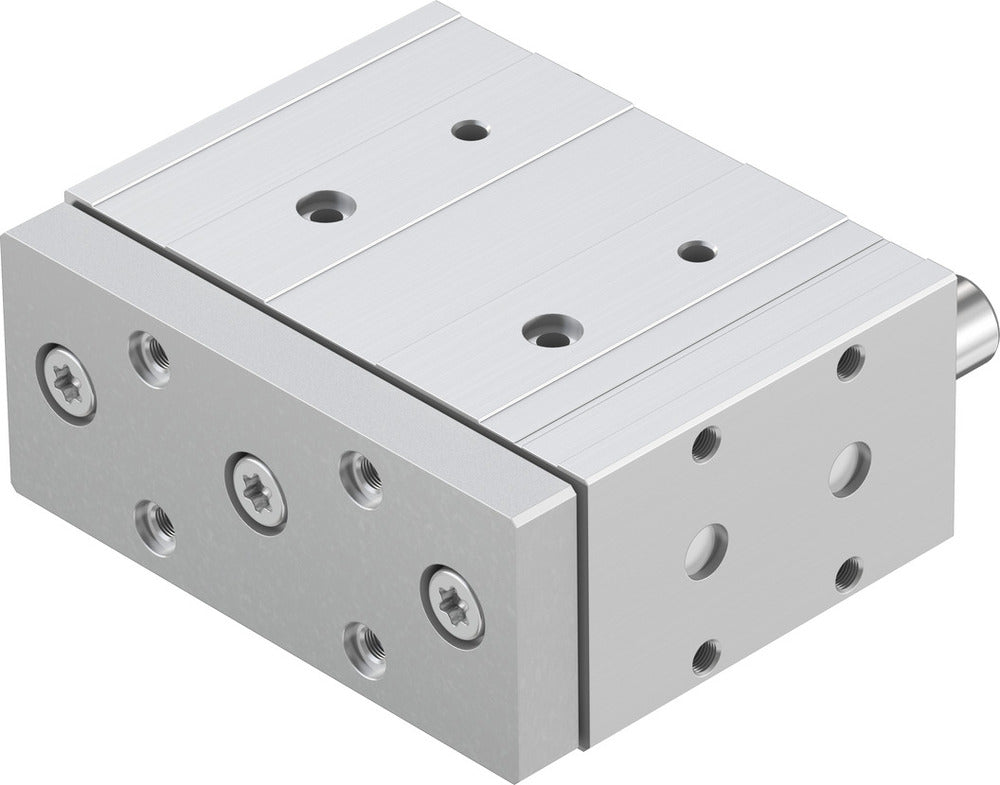

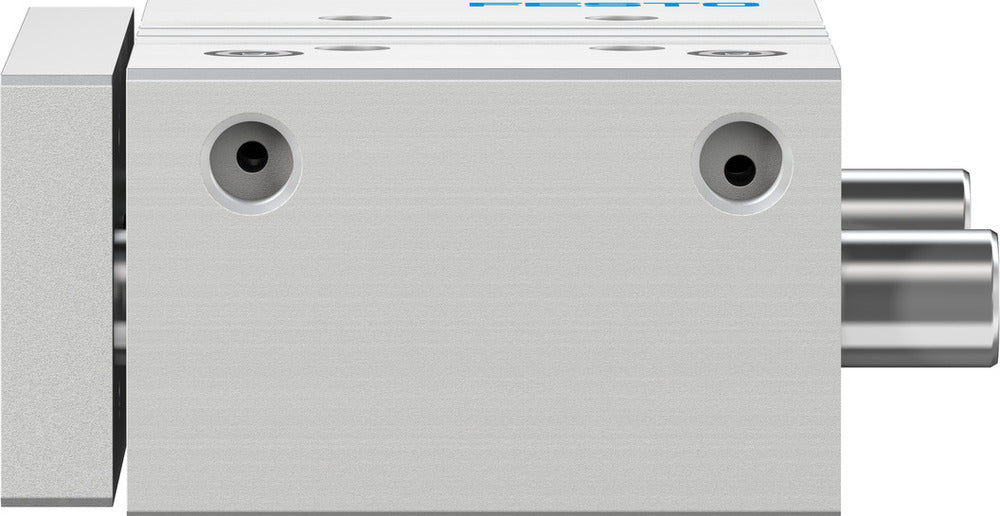

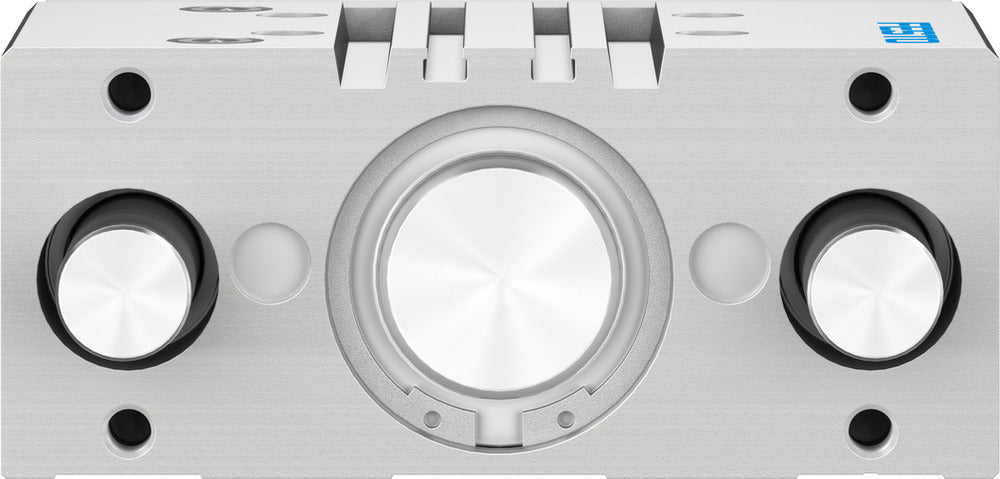

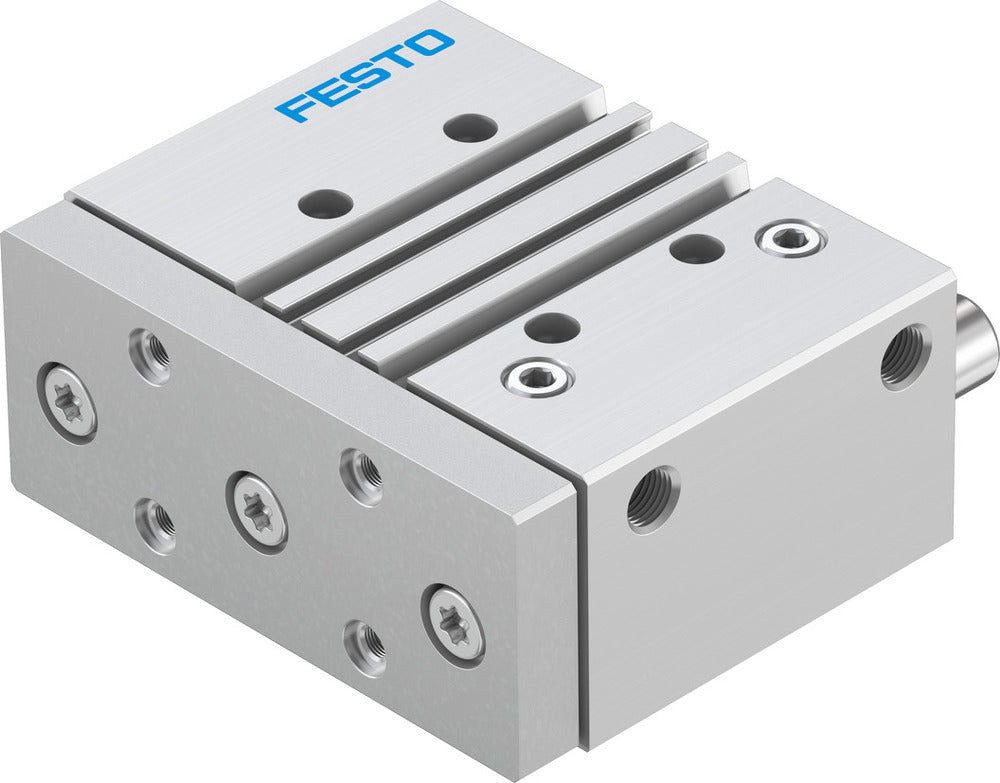

Festo Guided Actuator 50mm Bore 50mm Stroke Double Acting - 170947
The DFM guided actuator combines a double-acting pneumatic cylinder with a recirculating ball bearing guide in a single compact unit. With a 50 mm piston diameter and 50 mm stroke, it delivers 1178 N of force at 6 bar pressure. The integrated guide provides high resistance to torques and lateral forces, making it suitable for precise clamping, lifting, and stopping applications. Elastic cushioning rings at both ends ensure smooth operation, while proximity sensor compatibility allows for position monitoring.
- Regular price
- £514.75
Description
The DFM guided actuator combines a double-acting pneumatic cylinder with a recirculating ball bearing guide in a single compact unit. With a 50 mm piston diameter and 50 mm stroke, it delivers 1178 N of force at 6 bar pressure. The integrated guide provides high resistance to torques and lateral forces, making it suitable for precise clamping, lifting, and stopping applications. Elastic cushioning rings at both ends ensure smooth operation, while proximity sensor compatibility allows for position monitoring.
