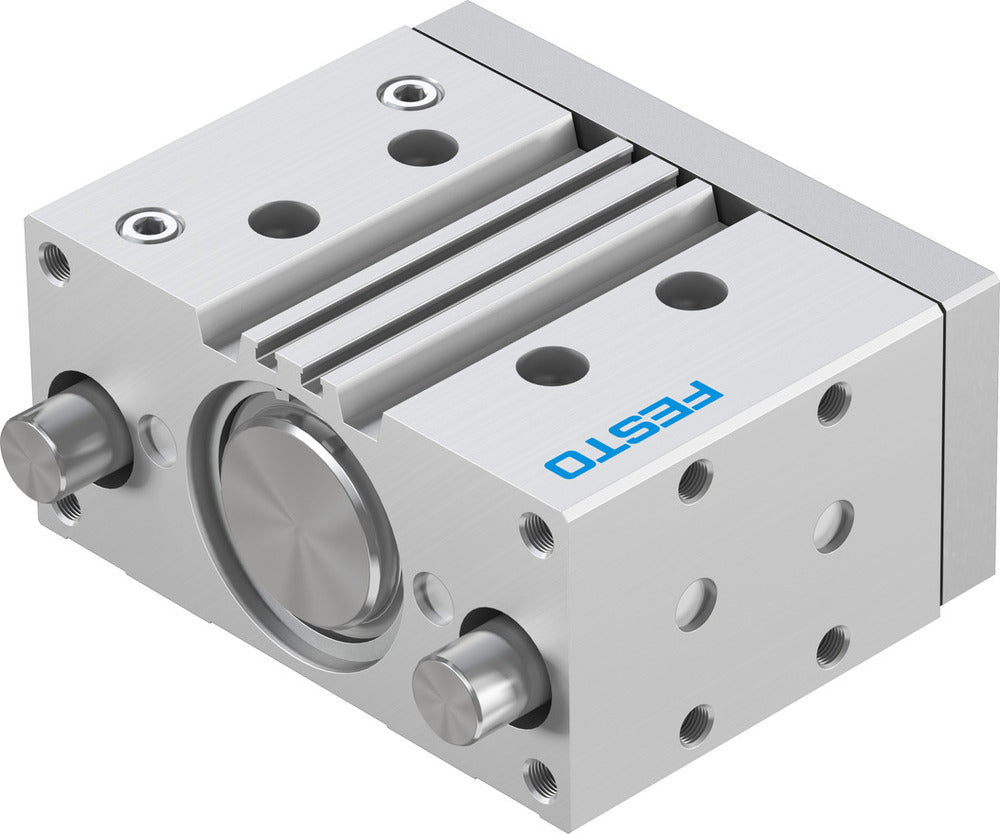

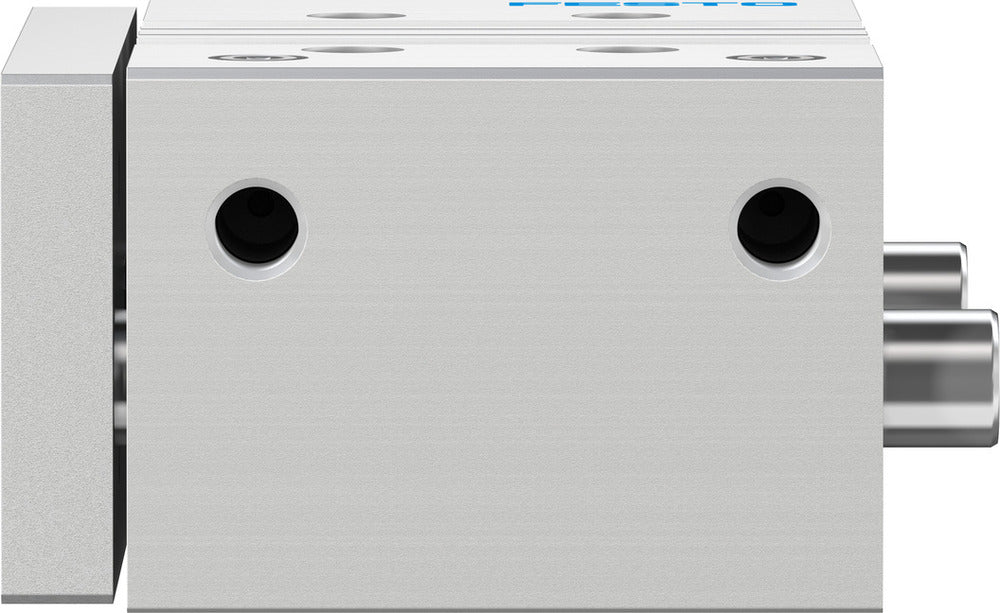

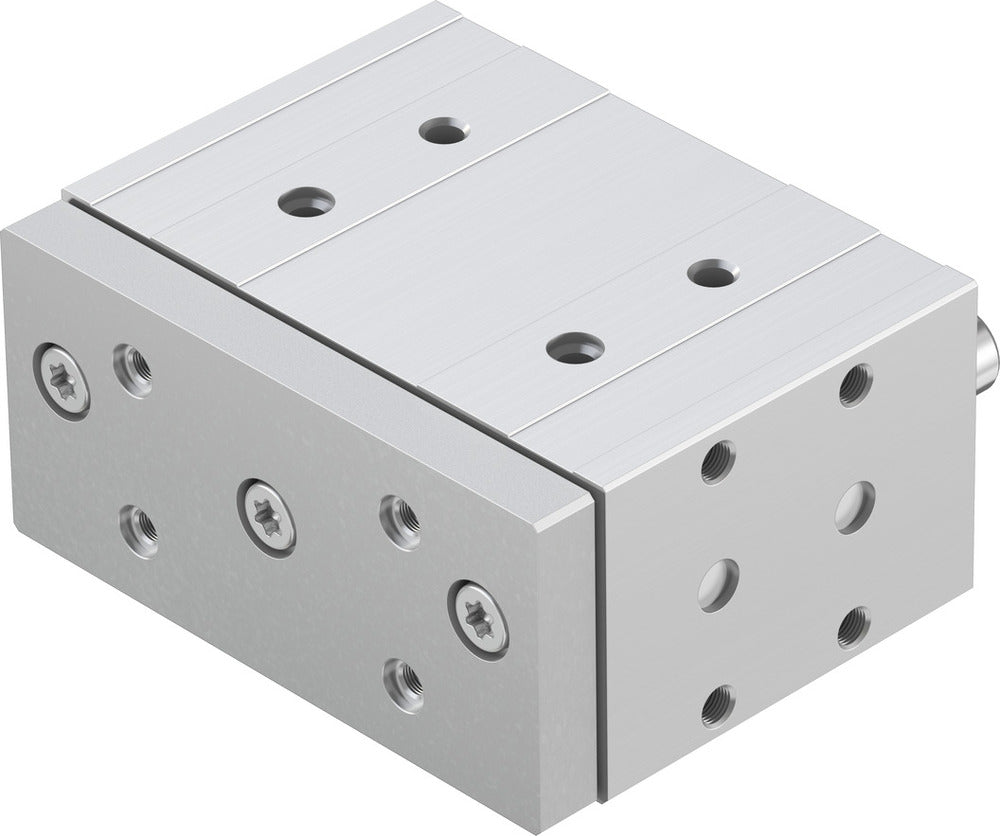

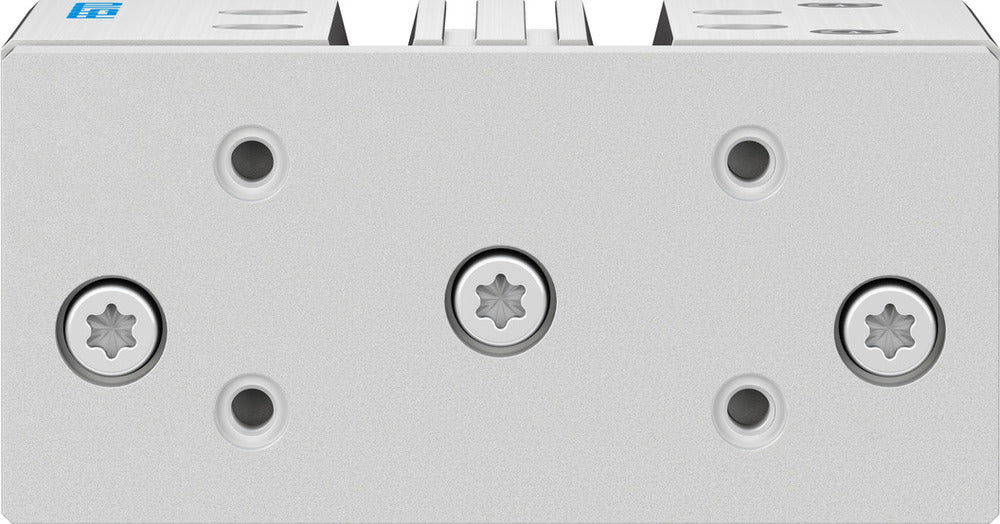

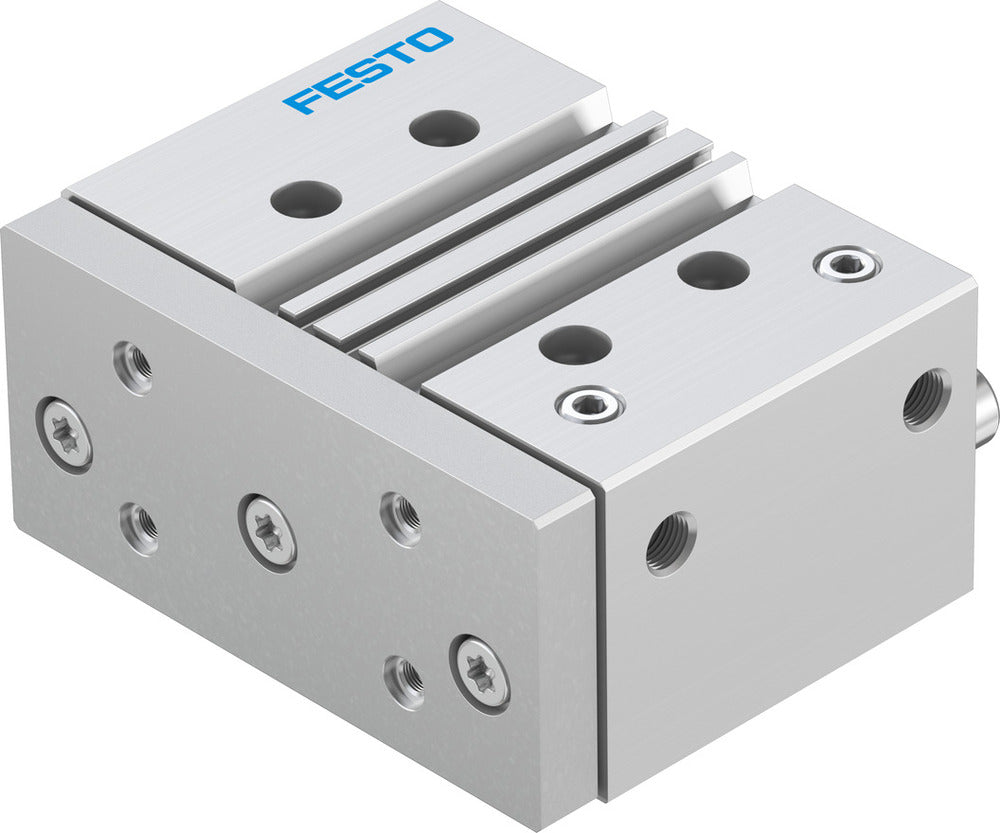

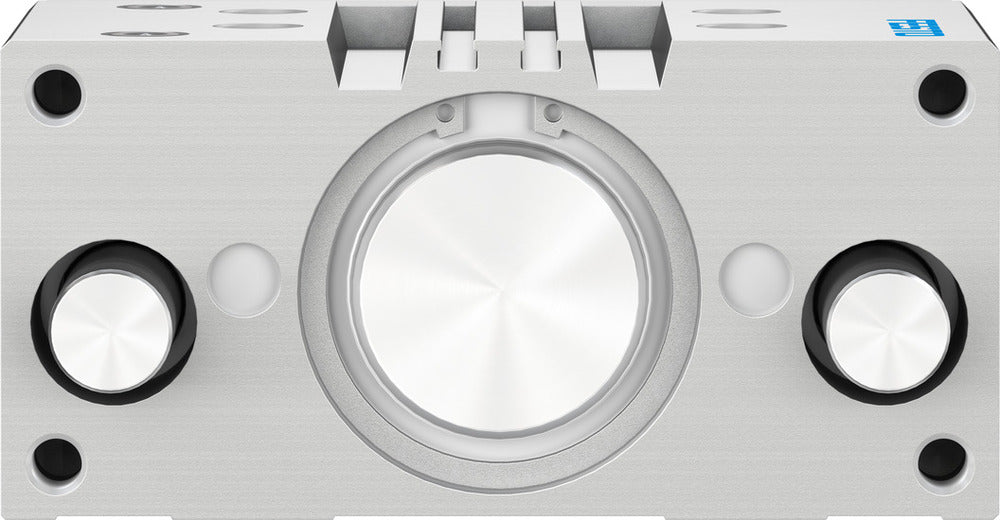

Festo Guided Actuator 63mm Bore 50mm Stroke Double Acting - 170954
The DFM guided actuator combines a double-acting pneumatic cylinder with a recirculating ball bearing guide in a single compact unit. With a 63 mm piston diameter and 50 mm stroke, it delivers 1870 N of force at 6 bar pressure. The design offers high resistance to torques and lateral forces, making it suitable for precise clamping, lifting, and stopping applications. Elastic cushioning rings at both ends provide smooth operation, while the integrated position sensing capability allows for easy integration with control systems.
- Regular price
- £566.13
Description
The DFM guided actuator combines a double-acting pneumatic cylinder with a recirculating ball bearing guide in a single compact unit. With a 63 mm piston diameter and 50 mm stroke, it delivers 1870 N of force at 6 bar pressure. The design offers high resistance to torques and lateral forces, making it suitable for precise clamping, lifting, and stopping applications. Elastic cushioning rings at both ends provide smooth operation, while the integrated position sensing capability allows for easy integration with control systems.
