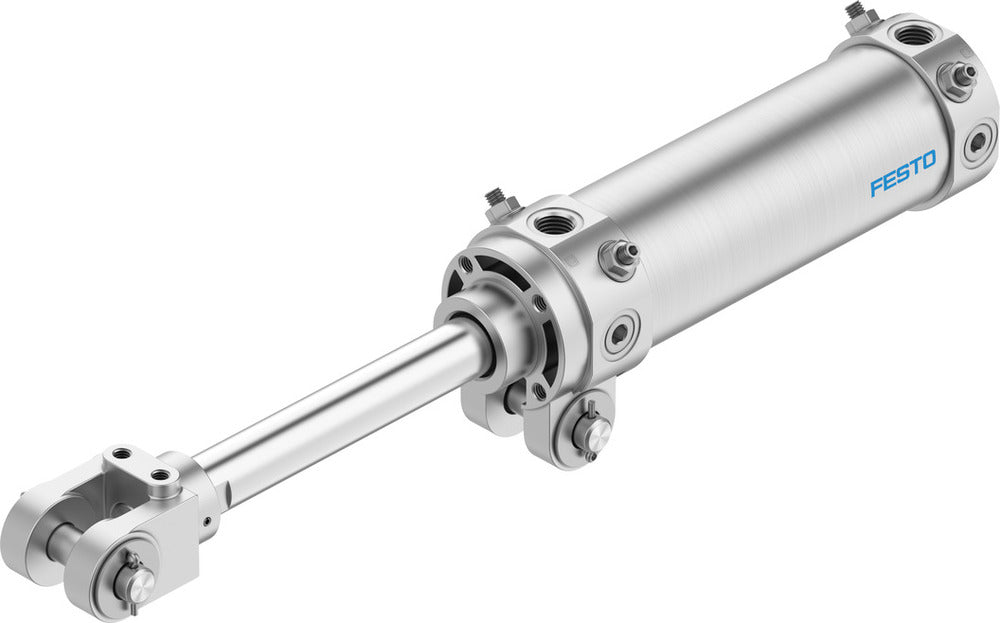

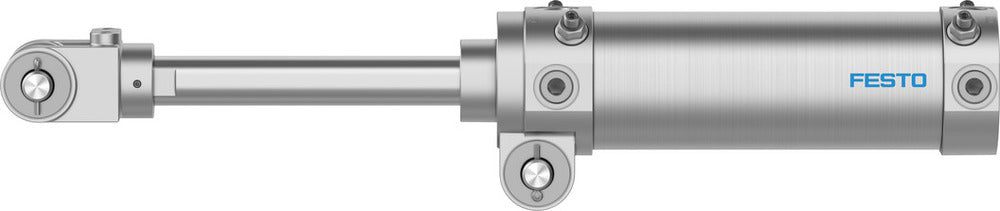

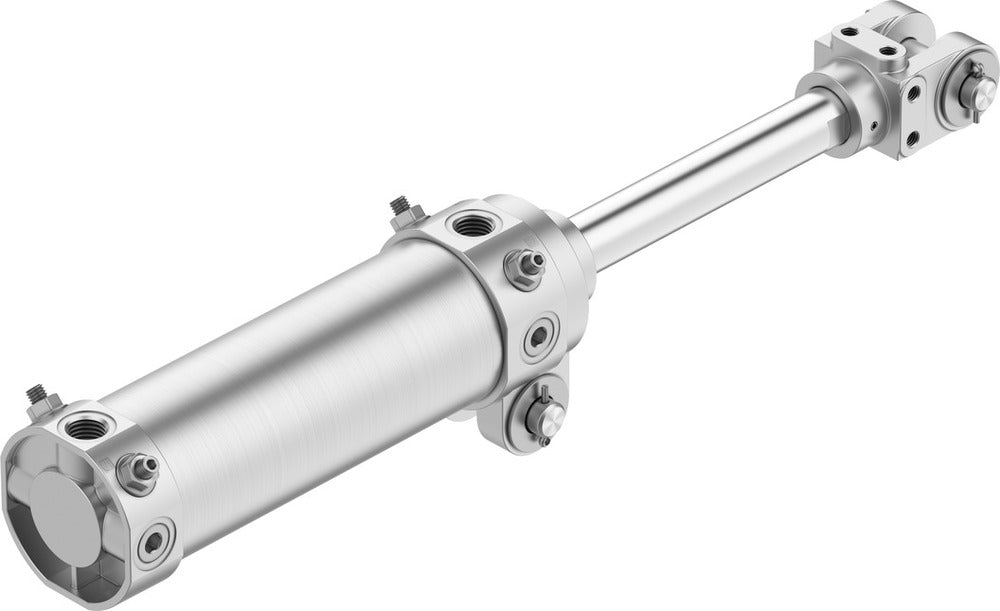

Festo Hinge Cylinder 50mm Bore 100mm Stroke Double Acting - 558099
This double-acting hinge cylinder with a 50 mm piston diameter and 100 mm stroke is designed for clamping components in welding processes. It features a joint yoke on the bearing cap for easy mounting and integrated throttling for precise control. The cylinder provides a theoretical force of 1178 N when advancing and 990 N when retracting at 6 bar pressure. With a Rc1/4 pneumatic connection, this cylinder is compatible with standard industrial pneumatic systems.
- Regular price
- £146.07
Description
This double-acting hinge cylinder with a 50 mm piston diameter and 100 mm stroke is designed for clamping components in welding processes. It features a joint yoke on the bearing cap for easy mounting and integrated throttling for precise control. The cylinder provides a theoretical force of 1178 N when advancing and 990 N when retracting at 6 bar pressure. With a Rc1/4 pneumatic connection, this cylinder is compatible with standard industrial pneumatic systems.
