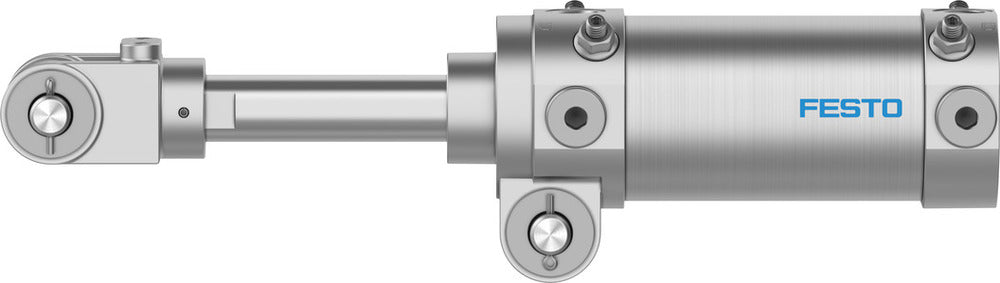

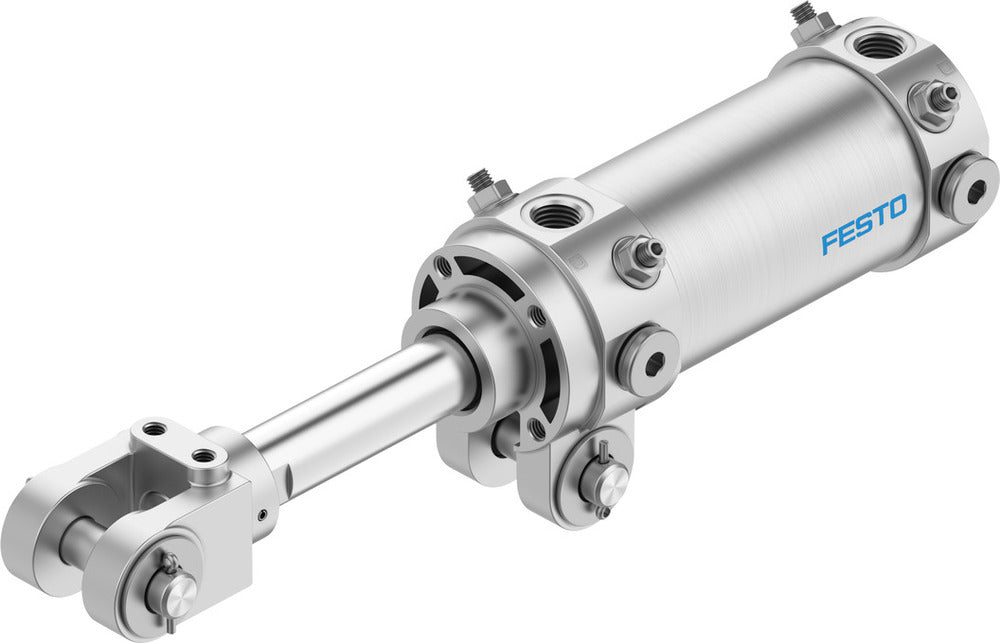

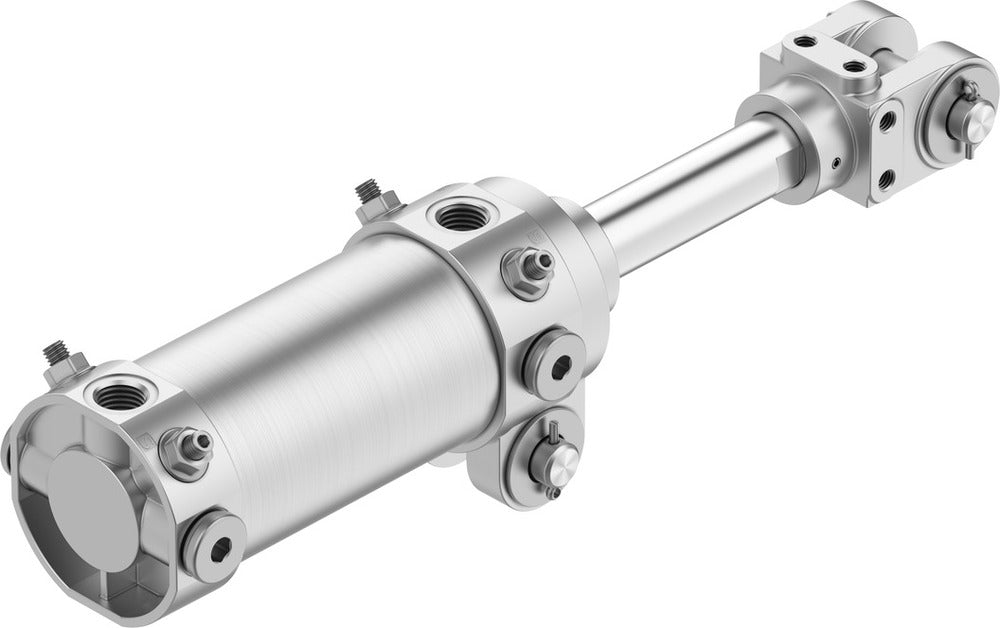

Festo Hinge Cylinder 50mm Bore 50mm Stroke Double Acting - 572341
This double-acting hinge cylinder with a 50 mm piston diameter and 50 mm stroke is designed for clamping components in welding processes. It features a G1/4 pneumatic connection and delivers theoretical forces of 1178 N advancing and 990 N retracting at 6 bar. The cylinder's articulated design with a joint yoke on the bearing cap facilitates easy mounting. Integrated throttling, end-position cushioning, and a rod wiper seal protect against welding spatter, enhancing durability in automotive production environments.
- Regular price
- £164.45
Description
This double-acting hinge cylinder with a 50 mm piston diameter and 50 mm stroke is designed for clamping components in welding processes. It features a G1/4 pneumatic connection and delivers theoretical forces of 1178 N advancing and 990 N retracting at 6 bar. The cylinder's articulated design with a joint yoke on the bearing cap facilitates easy mounting. Integrated throttling, end-position cushioning, and a rod wiper seal protect against welding spatter, enhancing durability in automotive production environments.
