Festo Hinge Cylinder 80mm Bore 75mm Stroke Double Acting - 557910

Festo Hinge Cylinder 80mm Bore 75mm Stroke Double Acting - 557910
Festo Hinge Cylinder 80mm Bore 75mm Stroke Double Acting - 557910
Reference: P2F86
Brand: Festo
Mfr. Part: DW-80-75-Y-A

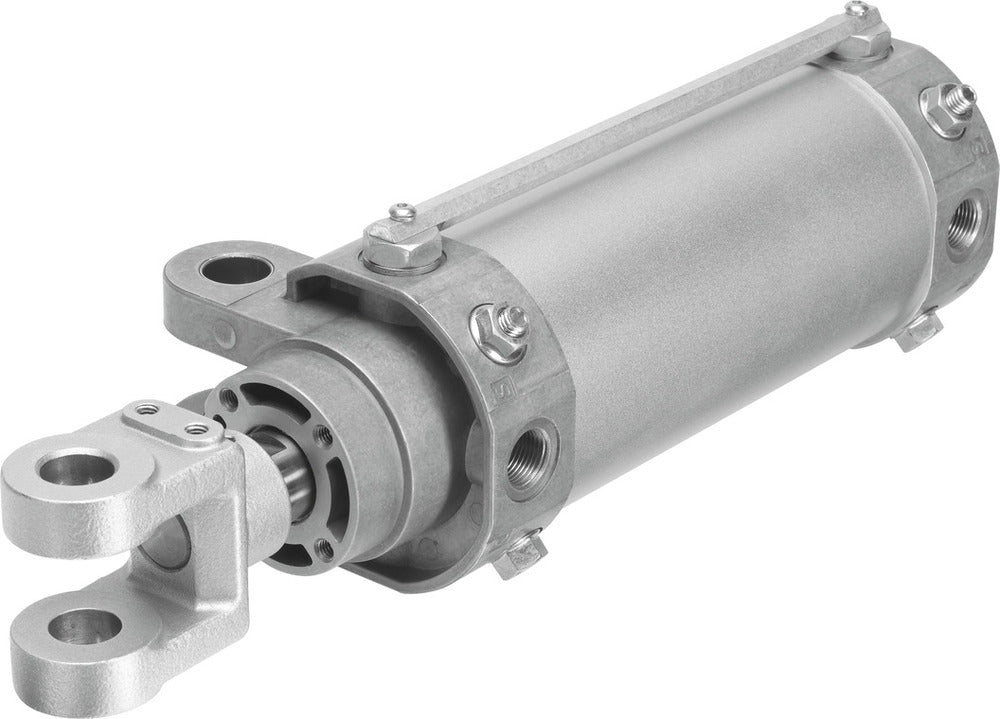

This double-acting hinge cylinder features an 80 mm piston diameter and a 75 mm stroke, providing theoretical forces of 3016 N advancing and 2721 N retracting at 6 bar. With a Rc3/8 pneumatic connection, it offers easy mounting due to its articulated design with a joint yoke on the bearing cap. The cylinder includes integrated throttling and end-position cushioning, enhancing control and longevity in demanding industrial applications.

View all
£310.60
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This double-acting hinge cylinder features an 80 mm piston diameter and a 75 mm stroke, providing theoretical forces of 3016 N advancing and 2721 N retracting at 6 bar. With a Rc3/8 pneumatic connection, it offers easy mounting due to its articulated design with a joint yoke on the bearing cap. The cylinder includes integrated throttling and end-position cushioning, enhancing control and longevity in demanding industrial applications.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - DW_ENUS
pdf
Download

Specifications

Piston diameter (mm)
Diameter of the piston that moves inside the cylinder.
80
Stroke (mm)
The stroke length is how far the piston travels inside the cylinder.
75
Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Double acting
Pressure (bar)
The pressure at which the pneumatic cylinder operates.
1 bar to 10 bar
Max force in (N)
Max force extend is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
2721
Max force out (N)
Max force retract is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
3016
Cylinder feature
Additional features or capabilities of the cylinder.
Reed switch, Operation with oil lubrication possible
Rod thread
Thread used to connect the piston rod to the load.
M20 x 1.5
Connection size
The size of the connection ports for the air hoses.
3/8 inch
Connection type
Refers to the type of port connection used on the pneumatic cylinder. This parameter is important in selecting the appropriate fittings or silencers to ensure proper installation and operation of the cylinder.
Inner thread conical BSPT-Rc
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
NBR (nitrile rubber)
Temperature (°C)
Safe and efficient operating temperature range.
-10 °C to 60 °C
Rod style
Shape and design of the piston rod.
Piston rod with rod clevis, Single rod - male thread
Mounting method
Swivel mounting on bearing cap, With accessories
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Structural design
Piston rod with rod clevis, Swivel mounting on bearing cap
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
0 - No corrosion stress
Impact energy in the end positions (J)
1.8
Moving mass at 0 mm stroke (g)
1651
