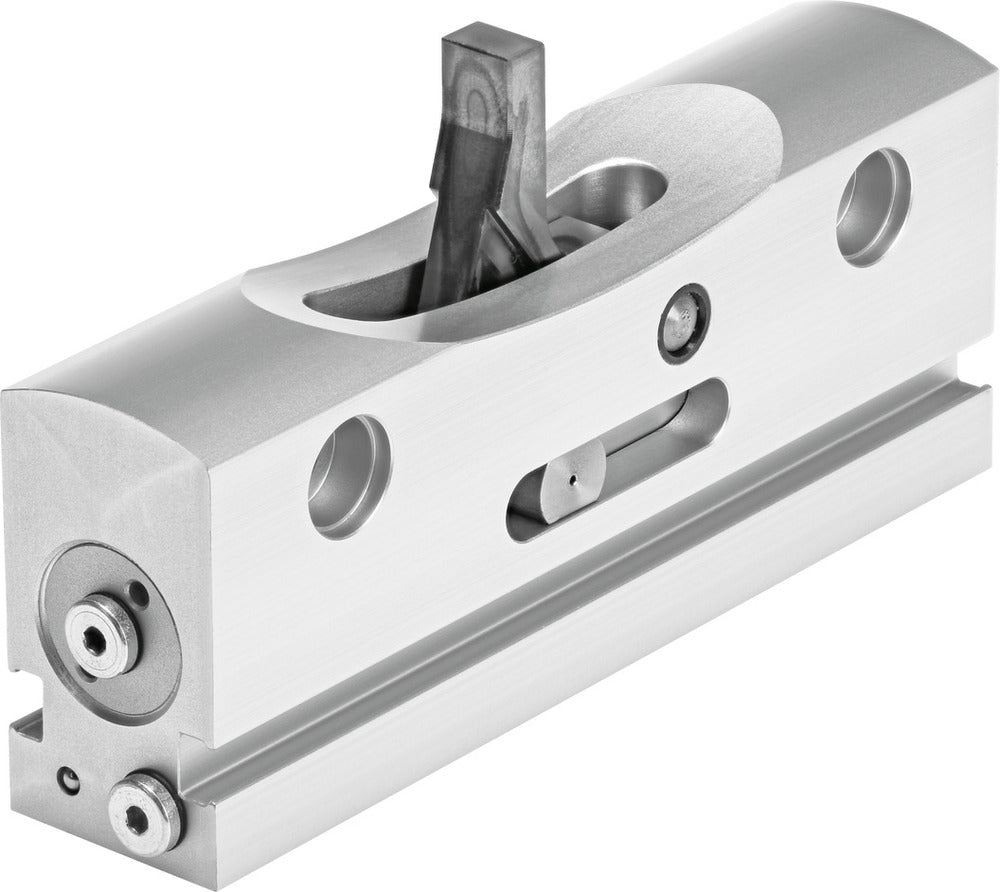

Festo Intermediate Position Module Size 16 - 1478121

Festo Intermediate Position Module Size 16 - 1478121
Festo Intermediate Position Module Size 16 - 1478121
Festo Intermediate Position Module Size 16 - 1478121
Festo Intermediate Position Module Size 16 - 1478121
Reference: P2HP3
Brand: Festo
Mfr. Part: DADM-EP-G6-16

Festo Intermediate Position Module Size 16 - 1478121

View all
£404.00
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads

Description

Festo Intermediate Position Module Size 16 - 1478121

Downloads

Product datasheet (EN)
pdf
Download
Brochure - DHTG_ENUS
pdf
Download
Brochure - SLG_ENUS
pdf
Download
Brochure - DADM-EP_ENUS
pdf
Download
Brochure - DSBC_ENUS
pdf
Download
Brochure - DGC_ENUS
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
M5
Sensor mounting style
Positively driven motion sequence
Cylinder feature
Reed switch, Operation with oil lubrication possible
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Temperature (°C)
0 °C to 60 °C
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium alloy
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
Polyurethane (PUR)
Pressure (bar)
3 bar to 6 bar
Mounting method
Centering sleeve, With through-hole
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)
1 - Low corrosion stress
Note on materials
RoHS-compliant
Repetition accuracy (mm)
0.02
Size
16
Max. stop force (N)
1100
Lever material
High-alloy stainless steel
Max. impact velocity (m/s)
0.8
Maximum pivot time (ms)
150
