Reference: P2G9G
Brand: Festo
Mfr. Part: DGPL-40-500-PPV-A-B-KF

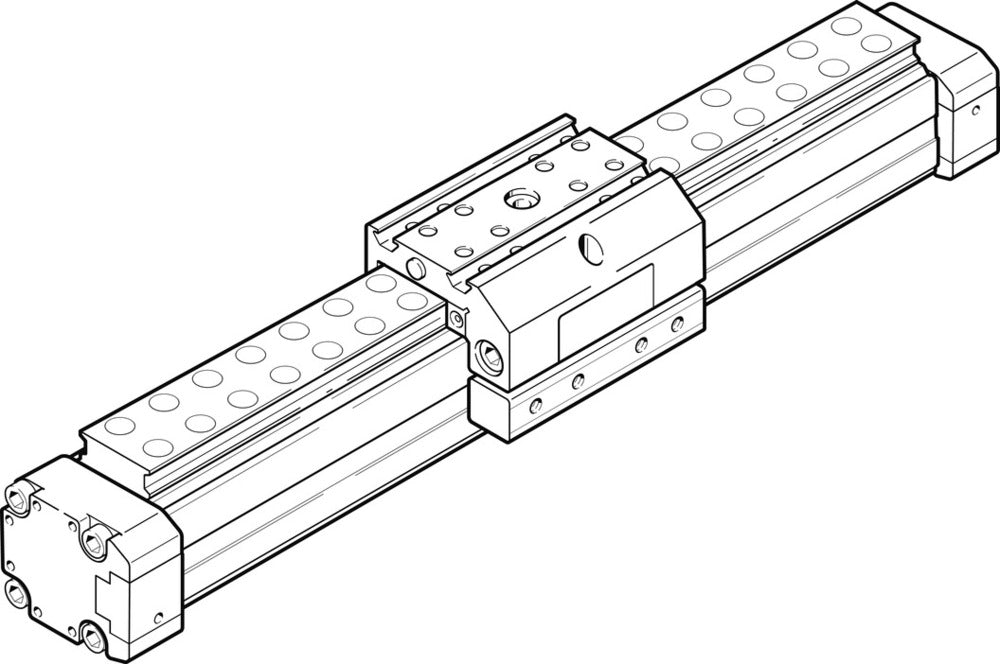

This double-acting linear actuator features a 40 mm piston diameter and 500 mm stroke, delivering a theoretical force of 754 N at 6 bar when advancing. It offers adjustable pneumatic cushioning at both ends with a hard characteristic curve for precise motion control. The actuator is compatible with proximity sensors for position sensing, ensuring accurate feedback in automated systems. Its robust design and customizable options make it suitable for various industrial applications requiring high precision and load capacity.

View all
£3,213.67
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This double-acting linear actuator features a 40 mm piston diameter and 500 mm stroke, delivering a theoretical force of 754 N at 6 bar when advancing. It offers adjustable pneumatic cushioning at both ends with a hard characteristic curve for precise motion control. The actuator is compatible with proximity sensors for position sensing, ensuring accurate feedback in automated systems. Its robust design and customizable options make it suitable for various industrial applications requiring high precision and load capacity.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - DGP_ENUS
pdf
Download
Brochure - DGPL_ENUS
pdf
Download

Specifications

Piston diameter (mm)
Diameter of the piston that moves inside the cylinder.
40
Stroke (mm)
The stroke length is how far the piston travels inside the cylinder.
500
Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Double acting
Pressure (bar)
The pressure at which the pneumatic cylinder operates.
1.5 bar to 8 bar
Max force in (N)
Max force extend is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
754
Max force out (N)
Max force retract is calculated with a standard formula, assuming 10 bar and 10% friction loss. Always consider the manufacturer datasheet and use high safety margins.
754
Cylinder feature
Additional features or capabilities of the cylinder.
Ball guided, Reed switch, Operation with oil lubrication possible
Connection size
The size of the connection ports for the air hoses.
1/4 inch
Connection type
Refers to the type of port connection used on the pneumatic cylinder. This parameter is important in selecting the appropriate fittings or silencers to ensure proper installation and operation of the cylinder.
Inner thread cylindrical BSPP-G
Material
The material used to construct the outer casing of the pneumatic cylinder. It determines the cylinder's durability, resistance to corrosion, and other environmental factors.
Aluminum alloy anodized
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
NBR/PUR
Temperature (°C)
Safe and efficient operating temperature range.
-10 °C to 60 °C
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)
0 - No corrosion stress
Moving mass at 0 mm stroke (g)
1700
Basic weight with 0 mm stroke (g)
4480
Additional weight per 10 mm stroke (g)
97
Cushioning length (mm)
30
Moving mass (g)
1700
