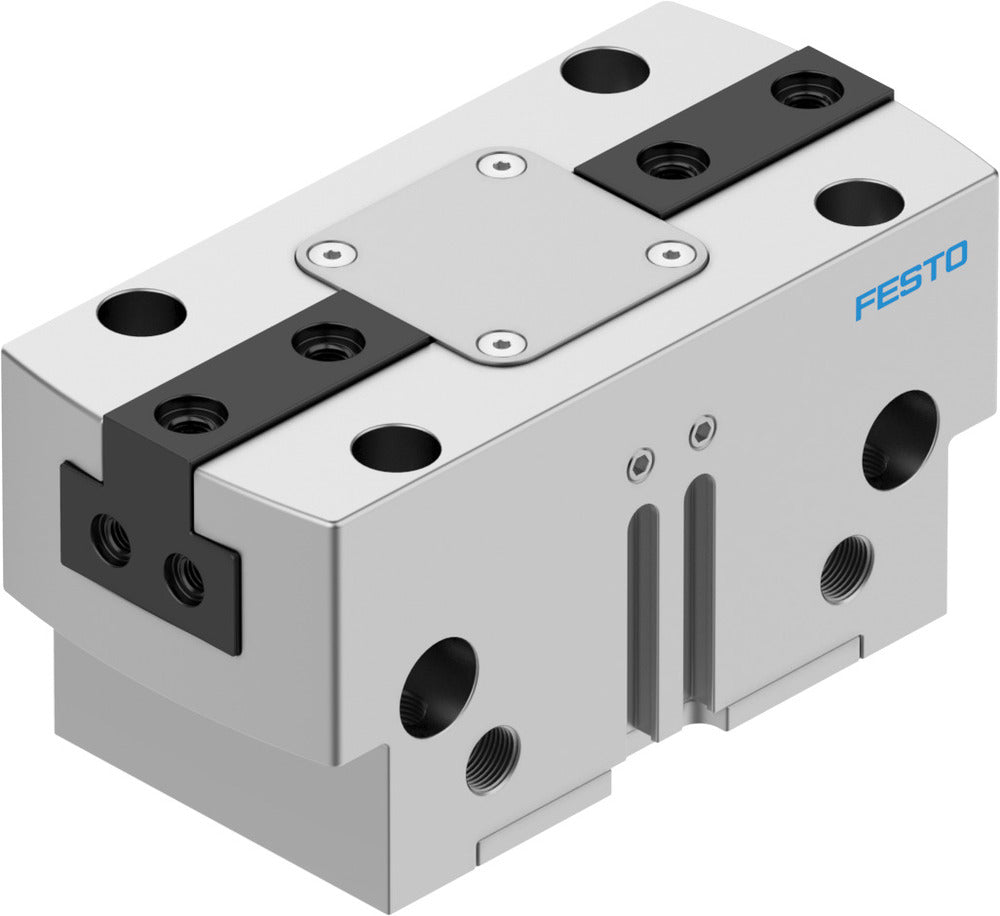

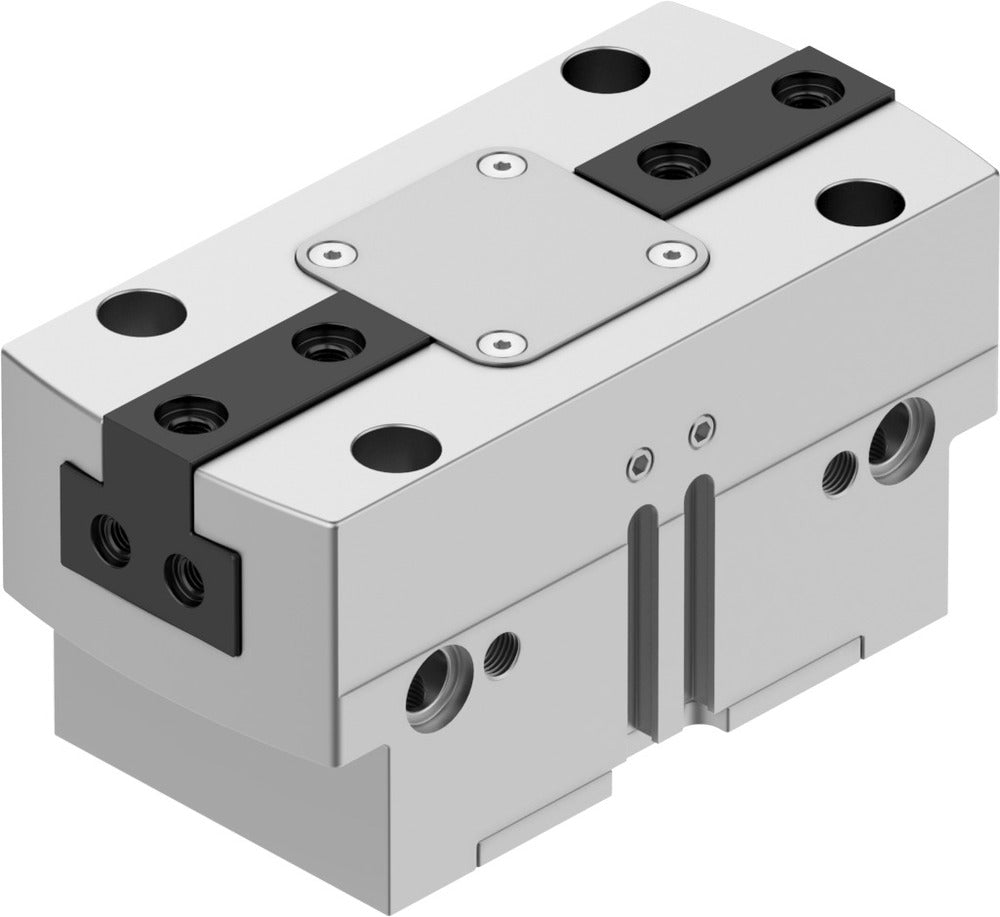

Festo Parallel Gripper 12mm Stroke - Size 50 Double Acting - 560222

Festo Parallel Gripper 12mm Stroke - Size 50 Double Acting - 560222
Festo Parallel Gripper 12mm Stroke - Size 50 Double Acting - 560222
Festo Parallel Gripper 12mm Stroke - Size 50 Double Acting - 560222
Festo Parallel Gripper 12mm Stroke - Size 50 Double Acting - 560222
Festo Parallel Gripper 12mm Stroke - Size 50 Double Acting - 560222
Festo Parallel Gripper 12mm Stroke - Size 50 Double Acting - 560222
Festo Parallel Gripper 12mm Stroke - Size 50 Double Acting - 560222
Festo Parallel Gripper 12mm Stroke - Size 50 Double Acting - 560222
Reference: P2HSE
Brand: Festo
Mfr. Part: HGPT-50-A-B

This parallel gripper is a double-acting, T-slot guided unit designed for demanding industrial applications. With a gripping force of 535 N per jaw at 6 bar and a 12 mm stroke per jaw, it offers robust performance for both external and internal gripping tasks. The gripper features a dust-protected jaw guide and is compatible with proximity sensors for position sensing. Its sturdy construction and powerful operation make it suitable for a wide range of technical applications where reliability and precision are essential.

View all
£1,290.53
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This parallel gripper is a double-acting, T-slot guided unit designed for demanding industrial applications. With a gripping force of 535 N per jaw at 6 bar and a 12 mm stroke per jaw, it offers robust performance for both external and internal gripping tasks. The gripper features a dust-protected jaw guide and is compatible with proximity sensors for position sensing. Its sturdy construction and powerful operation make it suitable for a wide range of technical applications where reliability and precision are essential.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - HGPT_ENUS
pdf
Download
Brochure - ADAPTER-FOR-GRIPPERS_ENUS
pdf
Download

Specifications

Jaw Travel (mm)
The maximum distance at which the fingers can travel relative to each other
12
Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Double acting
Pressure (bar)
The pressure at which the pneumatic cylinder operates.
3 bar to 8 bar
Size
50
Gripper function
Parallel
Cylinder feature
Additional features or capabilities of the cylinder.
Reed switch, Operation with oil lubrication possible
Connection size
The size of the connection ports for the air hoses.
1/8 inch
Connection type
Refers to the type of port connection used on the pneumatic cylinder. This parameter is important in selecting the appropriate fittings or silencers to ensure proper installation and operation of the cylinder.
Inner thread cylindrical BSPP-G
Material
The material used to construct the outer casing of the pneumatic cylinder. It determines the cylinder's durability, resistance to corrosion, and other environmental factors.
Aluminum alloy anodized
Temperature (°C)
Safe and efficient operating temperature range.
5 °C to 60 °C
External holding force (N)
The force with which the gripper will hold the object outside. The force rating is proportional with an air pressure.
1140
Internal holding force (N)
The force with which the gripper will hold the object inside. The force rating is proportional with an air pressure.
1070
Fingers quantity
The number of fingers or jaws on the gripper.
2
Mounting method
Centering sleeve, With through-hole, With internal thread
Closing time (max) (ms)
The maximum time it takes for the valve to close completely after the actuation signal is received. See "Solenoid valve response time" article.
85
Opening time (max) (ms)
The maximum time it takes for the valve to open completely after the actuation signal is received. See "Solenoid valve response time" article.
80
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Structural design
Inclined plane, Positively driven motion sequence
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP40
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
