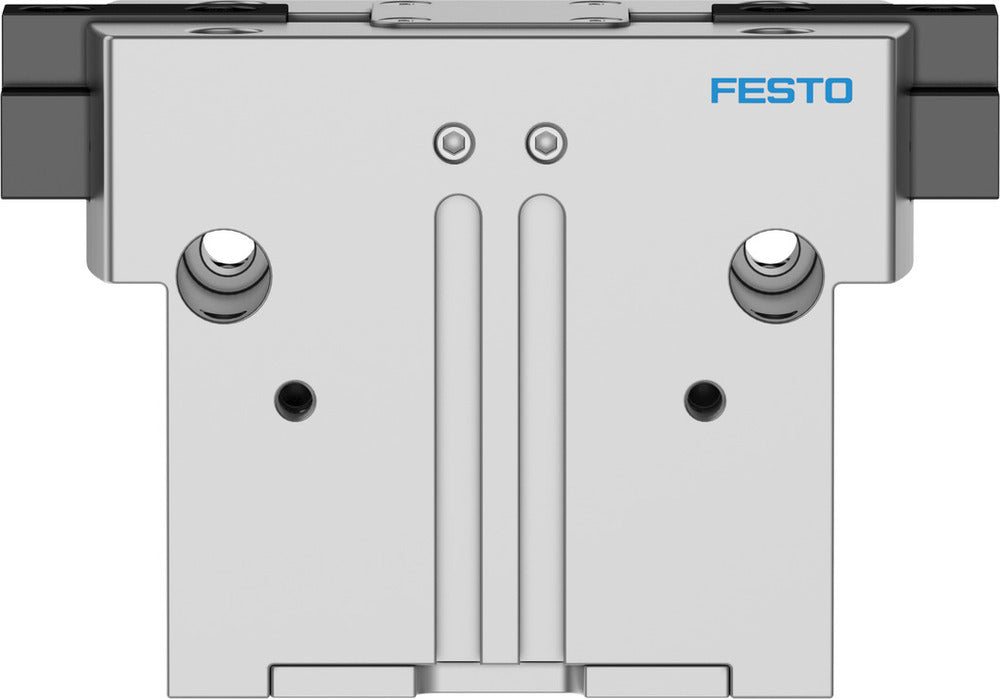

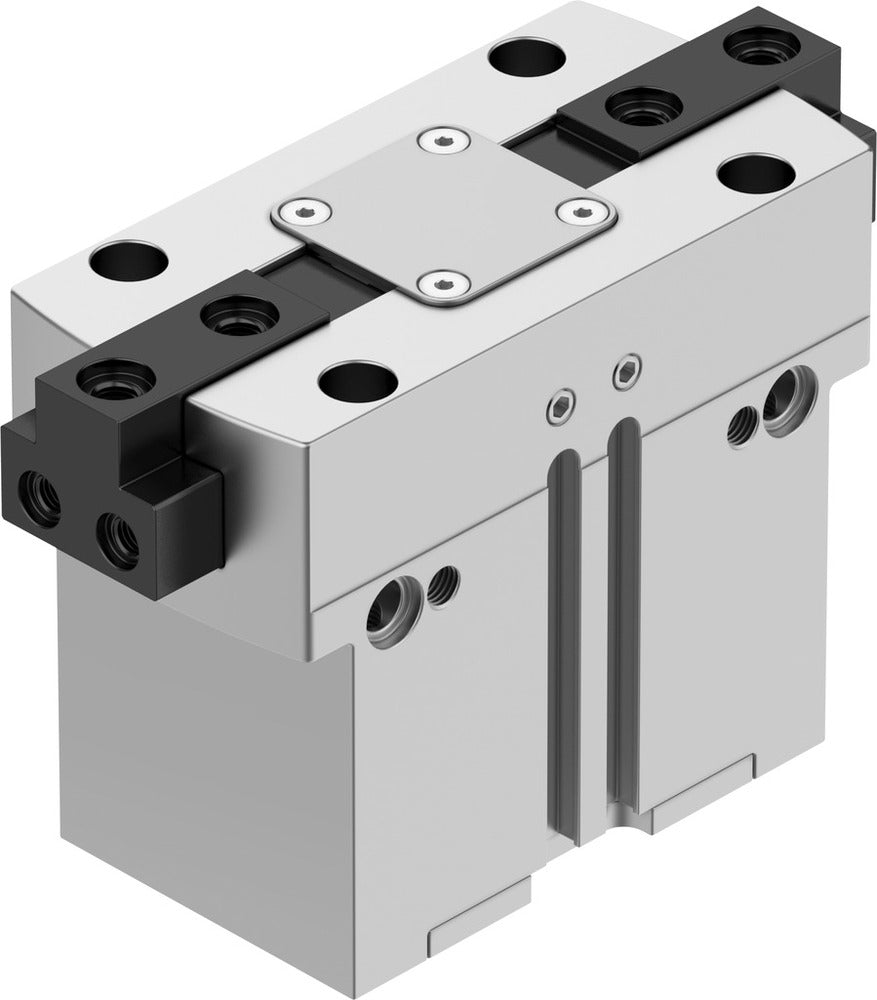

Festo Parallel Gripper 5mm Stroke - Size 40 Double Acting - 560220

Festo Parallel Gripper 5mm Stroke - Size 40 Double Acting - 560220
Festo Parallel Gripper 5mm Stroke - Size 40 Double Acting - 560220
Festo Parallel Gripper 5mm Stroke - Size 40 Double Acting - 560220
Festo Parallel Gripper 5mm Stroke - Size 40 Double Acting - 560220
Festo Parallel Gripper 5mm Stroke - Size 40 Double Acting - 560220
Festo Parallel Gripper 5mm Stroke - Size 40 Double Acting - 560220
Festo Parallel Gripper 5mm Stroke - Size 40 Double Acting - 560220
Festo Parallel Gripper 5mm Stroke - Size 40 Double Acting - 560220
Reference: P2HSC
Brand: Festo
Mfr. Part: HGPT-40-A-B-F-G1

This parallel gripper is a double-acting, T-slot guided unit designed for demanding industrial applications. With a stroke of 5 mm per jaw, it offers precise control for both external and internal gripping tasks. The gripper features position sensing compatibility for proximity sensors, enhancing operational accuracy. Its gripping force backup on opening ensures secure handling, while the sealing air protection guards against dust infiltration, maintaining performance in challenging environments. This robust gripper is engineered to meet the needs of technical professionals seeking reliable and efficient automation solutions.

View all
£1,132.94
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This parallel gripper is a double-acting, T-slot guided unit designed for demanding industrial applications. With a stroke of 5 mm per jaw, it offers precise control for both external and internal gripping tasks. The gripper features position sensing compatibility for proximity sensors, enhancing operational accuracy. Its gripping force backup on opening ensures secure handling, while the sealing air protection guards against dust infiltration, maintaining performance in challenging environments. This robust gripper is engineered to meet the needs of technical professionals seeking reliable and efficient automation solutions.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - HGPT_ENUS
pdf
Download
Brochure - ADAPTER-FOR-GRIPPERS_ENUS
pdf
Download

Specifications

Jaw Travel (mm)
The maximum distance at which the fingers can travel relative to each other
5
Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Double acting
Pressure (bar)
The pressure at which the pneumatic cylinder operates.
4 bar to 8 bar
Size
40
Gripper function
Parallel
Cylinder feature
Additional features or capabilities of the cylinder.
Reed switch, Operation with oil lubrication possible
Connection size
The size of the connection ports for the air hoses.
M5
Connection type
Refers to the type of port connection used on the pneumatic cylinder. This parameter is important in selecting the appropriate fittings or silencers to ensure proper installation and operation of the cylinder.
Inner thread metric
Material
The material used to construct the outer casing of the pneumatic cylinder. It determines the cylinder's durability, resistance to corrosion, and other environmental factors.
Aluminum alloy anodized
Temperature (°C)
Safe and efficient operating temperature range.
5 °C to 60 °C
Fingers quantity
The number of fingers or jaws on the gripper.
2
Mounting method
Centering sleeve, With through-hole, With internal thread
Closing time (max) (ms)
The maximum time it takes for the valve to close completely after the actuation signal is received. See "Solenoid valve response time" article.
143
Opening time (max) (ms)
The maximum time it takes for the valve to open completely after the actuation signal is received. See "Solenoid valve response time" article.
71
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Structural design
Inclined plane, Positively driven motion sequence
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP40
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Note on materials
RoHS-compliant
