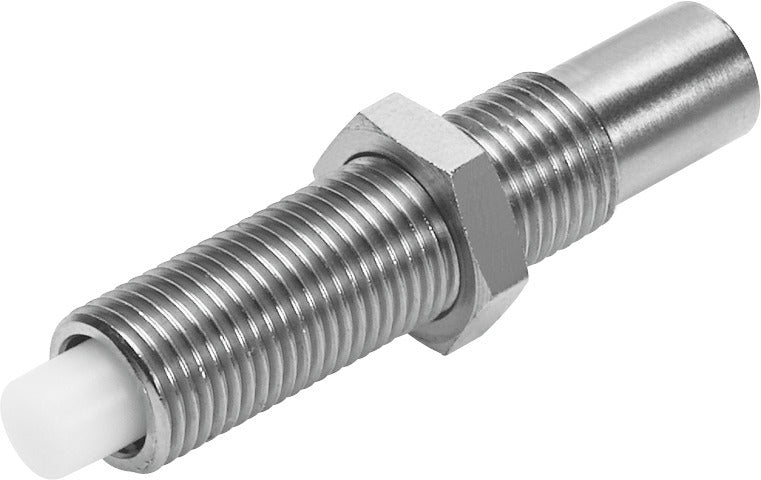

Festo Pneumatic Shock Absorber 5mm Stroke - Size 7 - 548012

Festo Pneumatic Shock Absorber 5mm Stroke - Size 7 - 548012
Festo Pneumatic Shock Absorber 5mm Stroke - Size 7 - 548012
Festo Pneumatic Shock Absorber 5mm Stroke - Size 7 - 548012
Festo Pneumatic Shock Absorber 5mm Stroke - Size 7 - 548012
Reference: P2FG3
Brand: Festo
Mfr. Part: DYSC-7-5-Y1F

This pneumatic shock absorber offers efficient energy absorption with a 5 mm stroke and a maximum energy absorption of 2 J per stroke. It features self-adjusting cushioning, ensuring optimal performance across various applications. The rapidly increasing cushioning force curve and path-controlled throttle function provide precise control and effective damping. Designed for easy installation with an end-to-end screw-in configuration, this shock absorber is ideal for applications requiring compact, high-performance energy absorption solutions.

View all
£83.10
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads

Description

This pneumatic shock absorber offers efficient energy absorption with a 5 mm stroke and a maximum energy absorption of 2 J per stroke. It features self-adjusting cushioning, ensuring optimal performance across various applications. The rapidly increasing cushioning force curve and path-controlled throttle function provide precise control and effective damping. Designed for easy installation with an end-to-end screw-in configuration, this shock absorber is ideal for applications requiring compact, high-performance energy absorption solutions.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - DYSC_ENUS
pdf
Download
Brochure - SHOCK-ABSORBER-ADD_ENUS
pdf
Download

Specifications

Stroke (mm)
The stroke length is how far the piston travels inside the cylinder.
5
Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Pushing single-acting
Cylinder feature
Additional features or capabilities of the cylinder.
Without
Material
The material used to construct the outer casing of the pneumatic cylinder. It determines the cylinder's durability, resistance to corrosion, and other environmental factors.
High-alloy steel
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
NBR (nitrile rubber)
Temperature (°C)
Safe and efficient operating temperature range.
-10 °C to 80 °C
Mounting method
Locking nut
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Note on materials
RoHS-compliant
Piston rod material
High-alloy steel
Cushioning length (mm)
5
Cushioning
Self-adjusting
Size
7
Max. stop force (N)
300
Max. impact velocity (m/s)
3
Resetting force (N)
1.2
Max. energy absorption per stroke (J)
2
Reset time at room temperature (s)
0.2
Reset time at min. ambient temperature (s)
1
