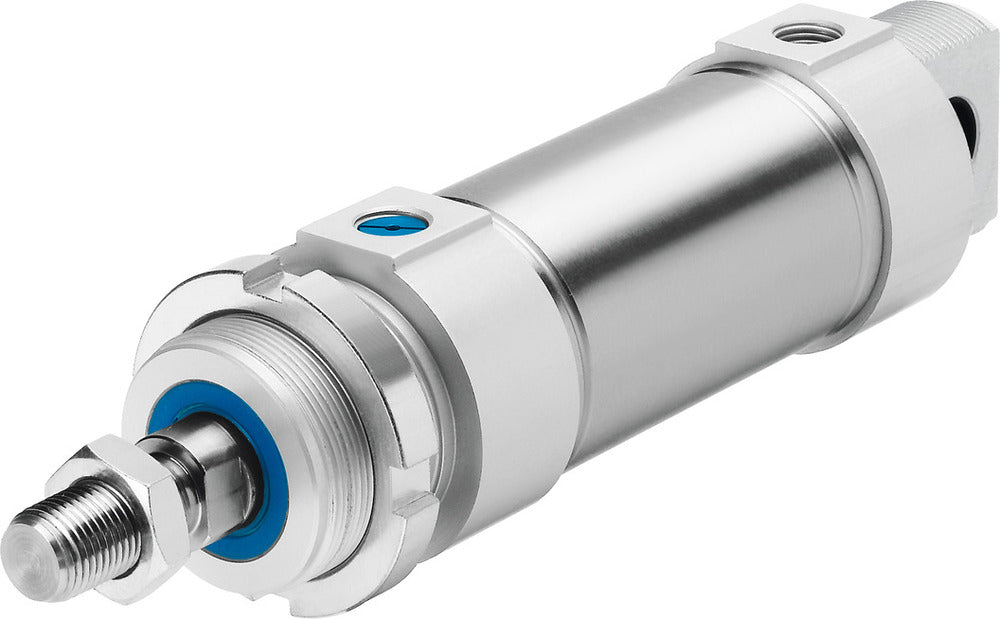

Festo Round Cylinder 50mm Bore 10mm Stroke Single Acting - 196382

Festo Round Cylinder 50mm Bore 10mm Stroke Single Acting - 196382
Festo Round Cylinder 50mm Bore 10mm Stroke Single Acting - 196382
Festo Round Cylinder 50mm Bore 10mm Stroke Single Acting - 196382
Festo Round Cylinder 50mm Bore 10mm Stroke Single Acting - 196382
Image may vary slightly
See specifications for accurate information.
Reference: P2D2C
Brand: Festo
Mfr. Part: ESNU-50-10-P-A

This round cylinder features a 50 mm piston diameter and 10 mm stroke, delivering a theoretical force of 1072.8 N at 6 bar when advancing. Operating in a single-acting, pushing mode, it incorporates elastic cushioning rings at both ends for smooth operation. The cylinder's magnetic piston allows for position sensing, enhancing control and precision in automated systems. Its durable construction ensures long service life and reliable performance in various industrial applications.

View all
£101.77
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Expected delivery in 4 - 6 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This round cylinder features a 50 mm piston diameter and 10 mm stroke, delivering a theoretical force of 1072.8 N at 6 bar when advancing. Operating in a single-acting, pushing mode, it incorporates elastic cushioning rings at both ends for smooth operation. The cylinder's magnetic piston allows for position sensing, enhancing control and precision in automated systems. Its durable construction ensures long service life and reliable performance in various industrial applications.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - ESNU_ENUS
pdf
Download

Specifications

Cylinder ISO standardi
Round 2-63mm
Piston diameter (mm)i
50
Stroke (mm)i
10

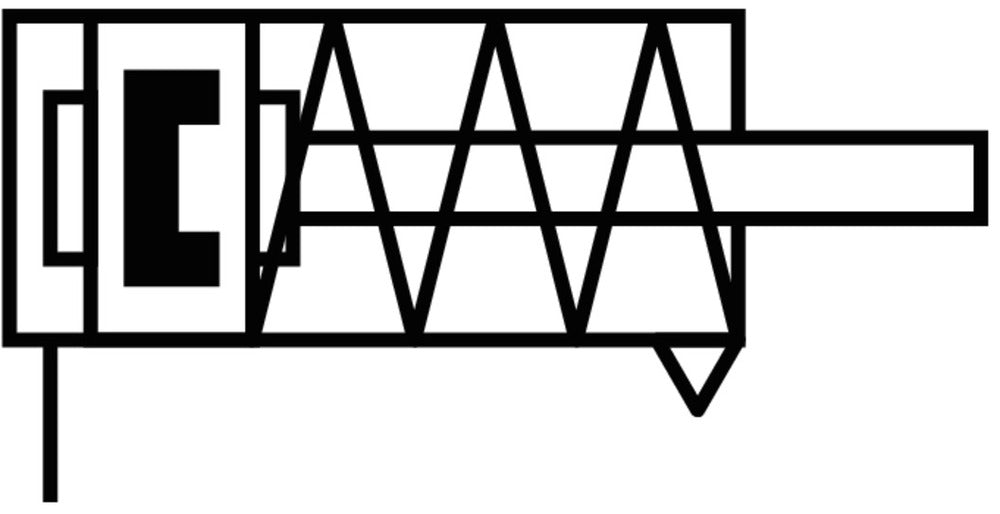

Operationi
Pushing single-acting
Pressure (bar)i
1.2 bar to 10 bar
Max force in (N)i
95
Max force out (N)i
1072.8
Dampingi
Elastic cushioning rings/pads at both ends
Cylinder featurei
Reed switch,Operation with oil lubrication possible (required in further operations)
Rod threadi
M16 x 1.5
Connection sizei
1/4 inch
Connection typei
Inner thread cylindrical BSPP-G
Seal materiali
NBR/PUR
Temperature (°C)i
-20 °C to 80 °C
Mounting method
With accessories
Mounting dispositioni
Any
Structural design
Piston,Piston rod,Cylinder barrel
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Moving mass at 0 mm stroke (g)
413
