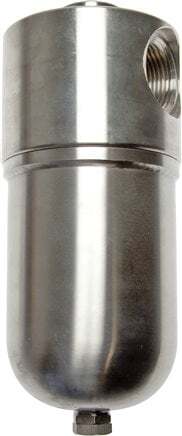

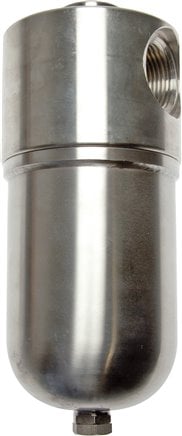

Filter 50microns G1/2'' 2500 l/min Auto Stainless Steel

Filter 50microns G1/2'' 2500 l/min Auto Stainless Steel
Image may vary slightly
See specifications for accurate information.
Reference: P27P3
Brand: Tameson

This G 1/2 inch pneumatic filter filters out contaminants larger than 50 microns to ensure clean air. The max flow rate is 2500 l/min (always use the flow chart for correct sizing). The auto drain valve will open and close automatically based on residue level. Suitable for a 50.0 bar (725 psi) max input and temperatures between -20 and 80 °C (-4 and 176 °F).

View all
Regular price
£430.82
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Related products

The filter removes water, dirt and other harmful particles larger than 50 microns. The filter removes water, dirt and other harmful particles for your air system. This model has G 1/2 inch ports. The maximum flow rate is 2500 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve.

The maximum input pressure is 50.0 bar (725 psi) and the temperature range is between -20 and 80 °C (-4 and 176 °F). It has an auto condensate drain. The housing material is made out of stainless steel and the filter has a bowl made of 1.4401.

Mounting brackets need to be ordered separately.
