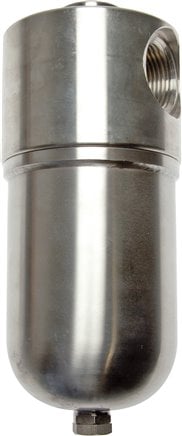

Filter 50microns G3/8'' 1000 l/min Manual Stainless Steel
Notice: This product is discontinued
This G 3/8 inch pneumatic filter filters out contaminants larger than 50 microns to ensure clean air. The max flow rate is 1000 l/min (always use the flow chart for correct sizing). The condensate drain is manual, requiring manual release of condensate.Suitable for a 50.0 bar (725 psi) max input and temperatures between -20 and 80 °C (-4 and 176 °F).
Notice: This product is discontinued
Description
The filter removes water, dirt and other harmful particles larger than 50 microns. The filter removes water, dirt and other harmful particles for your air system. This model has G 3/8 inch ports. The maximum flow rate is 1000 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve.
The maximum input pressure is 50.0 bar (725 psi) and the temperature range is between -20 and 80 °C (-4 and 176 °F). It has a manual condensate drain. The housing material is made out of stainless steel and the filter has a bowl made of 1.4401.
Mounting brackets need to be ordered separately.
