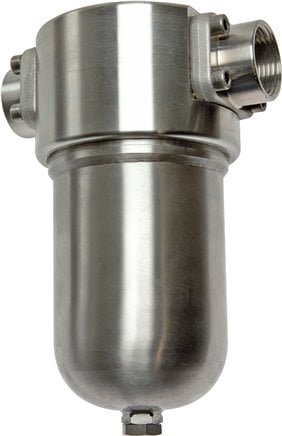

Filter 50microns 1'' NPT 7200 l/min Manual Stainless Steel
Notice: This product is discontinued
This 1 inch NPT pneumatic filter filters out contaminants larger than 50 microns to ensure clean air. The max flow rate is 7200 l/min. The condensate drain is manual, requiring manual release of condensate.Suitable for a 50.0 bar (725 psi) max input and temperatures between -20 and 80 °C (-4 and 176 °F).
Notice: This product is discontinued
Description
The filter removes water, dirt and other harmful particles larger than 50 microns. The filter removes water, dirt and other harmful particles for your air system. This model has 1 inch NPT ports. The maximum flow rate is 7200 l/min. It is recommended to select a filter with a maximum flow rate 1.5 to 2 times higher than the maximum flow rate in your system to avoid excessive pressure drop. Additionally, keep in mind that lower input pressures may reduce the achievable maximum flow rate, so ensure your system pressure is sufficient for optimal performance.
The maximum input pressure is 50.0 bar (725 psi) and the temperature range is between -20 and 80 °C (-4 and 176 °F). It has a manual condensate drain. The housing material is made out of stainless steel and the filter has a bowl made of 1.4401.
Mounting brackets need to be ordered separately.
