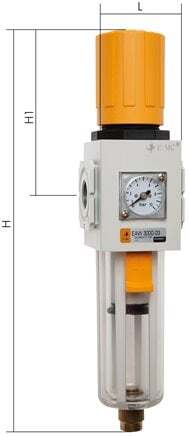

Filter-Regulator G1/4'' 900 l/min 0.5-9.0bar/7-130psi Manual Plastic EMC 2A
This G 1/4 inch high-quality pneumatic filter regulator (FR) removes moisture and contaminants over 5 microns and regulates the output pressure between 0.5 to 9.0 bar (7 to 130 psi). The regulator is self-relieving. Includes a pressure gauge. The max flow rate is 900 l/min. The condensate drain is manual, requiring manual release of condensate.Suitable for a 10.0 bar (145 psi) max input and temperatures between -10 and 60 °C (14 and 140 °F). To adjust the output pressure, pull the hand wheel up and twist. Lock by pushing the wheel back in.
- Regular price
- £38.67
Description
This filter regulator (FR) combines two functions. The filter removes water, dirt and other harmful particles larger than 5 microns. The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.5 to 9.0 bar (7 to 130 psi). This model has G 1/4 inch ports. The maximum flow rate is 900 l/min. It is recommended to select a filter with a maximum flow rate 1.5 to 2 times higher than the maximum flow rate in your system to avoid excessive pressure drop. Additionally, keep in mind that lower input pressures may reduce the achievable maximum flow rate, so ensure your system pressure is sufficient for optimal performance. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting. It can be locked after adjustment by pushing the hand wheel back in.
The maximum input pressure is 10.0 bar (145 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). It has a manual condensate drain with a drain capacity of 11 cm3. There is a built-in pressure relief valve on the outlet side when the set pressure is exceeded. The housing material is made out of aluminium and the filter has a bowl made of plastic. It has a mounting bracket to mount it to a wall or your machine.
