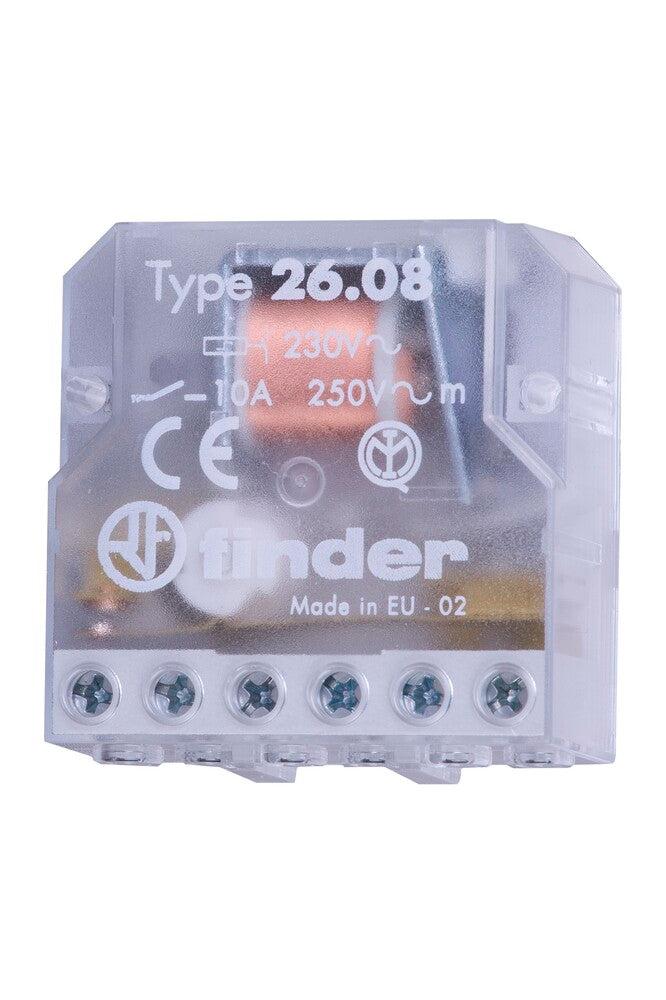

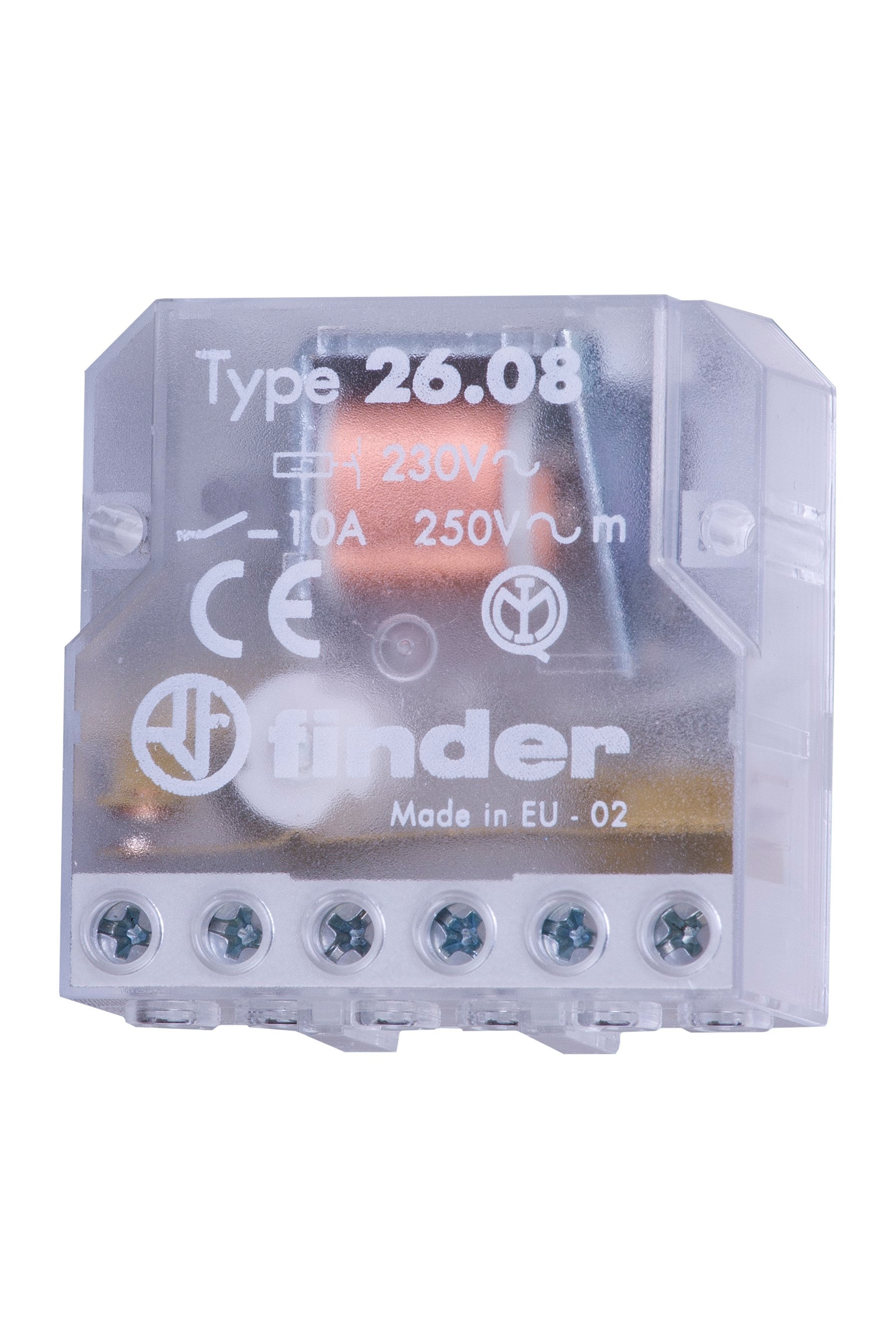

Finder 26 Bistable Relay - 26.08.8.230.0000

Finder 26 Bistable Relay - 26.08.8.230.0000
Finder 26 Bistable Relay - 26.08.8.230.0000
Image may vary slightly
See specifications for accurate information.
Reference: E2BKV
Brand: Finder
Mfr. Part: 26.08.8.230.0000

Finder 26 bistable relay, (WxDxH) 50x22x65mm, coil voltage 1 184 - 253V, coil voltage type 1 AC, supply voltage 230V, other, coil voltage AC 184 - 253V, 2 make contacts, nom. (measuring) switching current 10A, width in module units 1, frequency coil voltage 1 50 - 60Hz, mounting depth 22mm.

View all
£9.63
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Finder 26 bistable relay, (WxDxH) 50x22x65mm, coil voltage 1 184 - 253V, coil voltage type 1 AC, supply voltage 230V, other, coil voltage AC 184 - 253V, 2 make contacts, nom. (measuring) switching current 10A, width in module units 1, frequency coil voltage 1 50 - 60Hz, mounting depth 22mm.

Downloads

Specifications

Function
Mechanical switch
Mounting method
Other
Width in number of modular spacings
1
Built-in depth (mm)
22
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1 (V)
184 V to 253 V
Type of control voltage 1
AC
Frequency control voltage 1 (Hz)
50 Hz to 60 Hz
Control voltage 2 (V)
0 V to 0 V
Frequency control voltage 2 (Hz)
0 Hz to 0 Hz
Rated switch current (A)
10
Supply voltage (V)
230 V to 230 V
Voltage type of supply voltage
AC
Max. incandescent lamp load (W)
2000
Max. load fluorescent lamp (VA)
500
Max. load fluorescent lamp (Duo circuit) (VA)
360
Max. load fluorescent lamp (parallel compensated) (VA)
360
Max. switching current (cos phi = 0.6) (A)
12
Manual override
No
