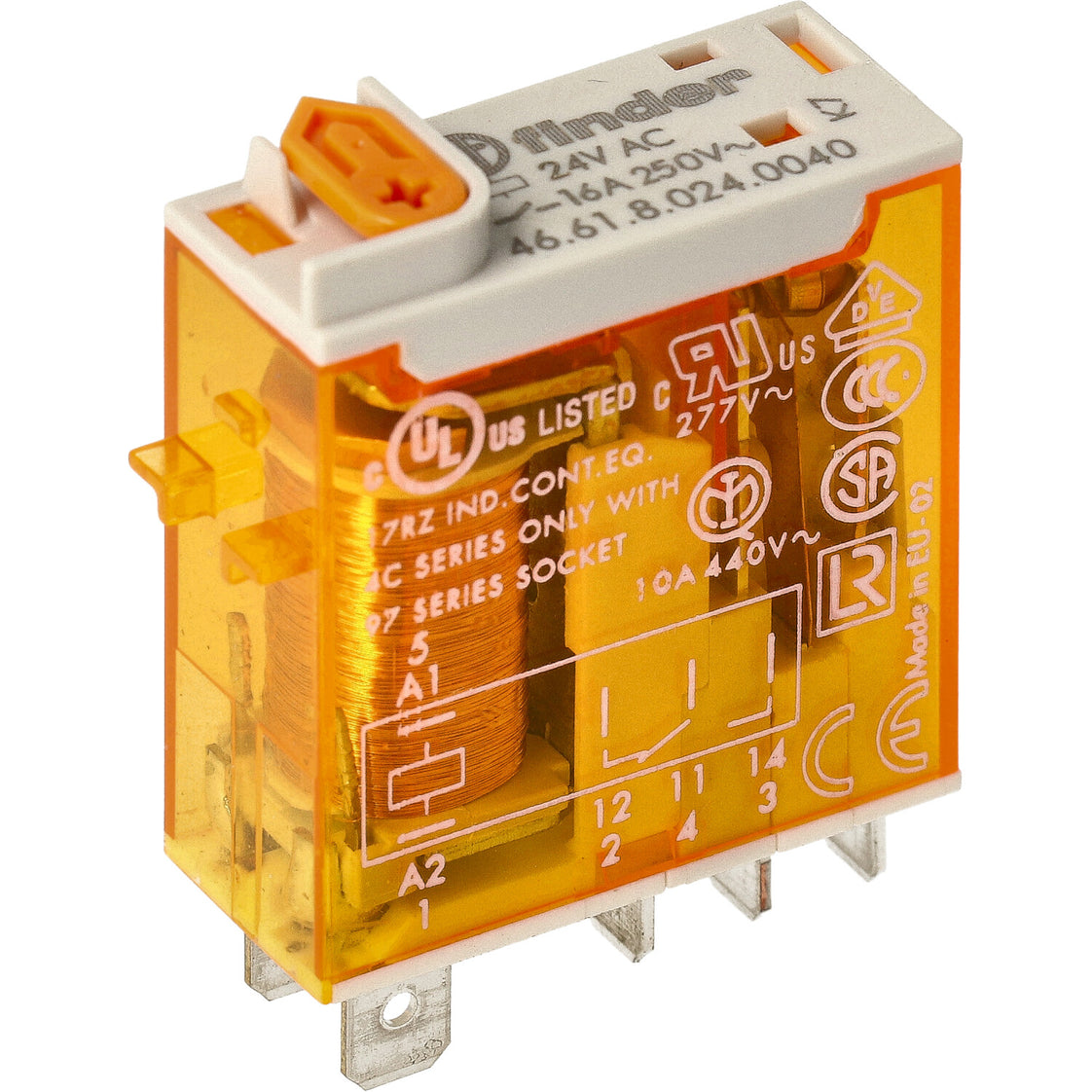

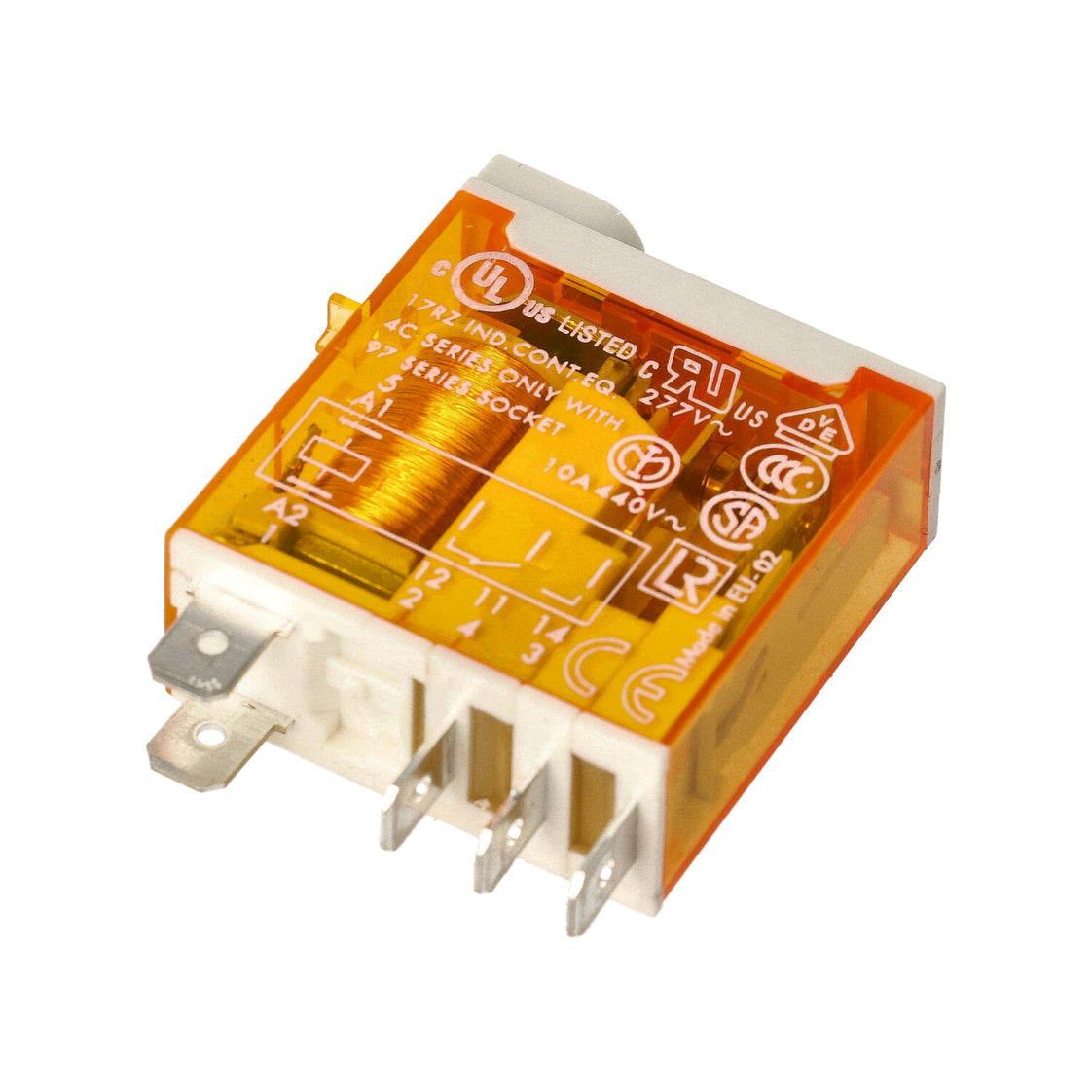

Finder 46 Series Industrial Relay 16A 24VAC SPDT - 46.61.8.024.0040
Reference:
E3VFW
Brand:
Finder
Mfr. Part:
46.61.8.024.0040
Compact industrial relay featuring a Single Pole Double Throw (SPDT) contact rated at 16A/250VAC. Operating on 24VAC with AgNi contact material, it includes a lockable test button and mechanical position indicator. Features 6000VAC isolation between coil and contacts with 8mm creepage distance. Operating temperature range: -40°C to +70°C. Dimensions: 29 x 12.4 x 32.8mm.
- Regular price
- £6.02
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00 (excl VAT)
Expected delivery in 4 - 5 business days
Description
Specifications
Downloads
Description
Compact industrial relay featuring a Single Pole Double Throw (SPDT) contact rated at 16A/250VAC. Operating on 24VAC with AgNi contact material, it includes a lockable test button and mechanical position indicator. Features 6000VAC isolation between coil and contacts with 8mm creepage distance. Operating temperature range: -40°C to +70°C. Dimensions: 29 x 12.4 x 32.8mm.
Pros:
- High isolation rating of 6000VAC between coil and contacts
- Wide operating temperature range -40°C to +70°C
- Includes lockable test button and position indicator
- Compact design with AgNi contact material
