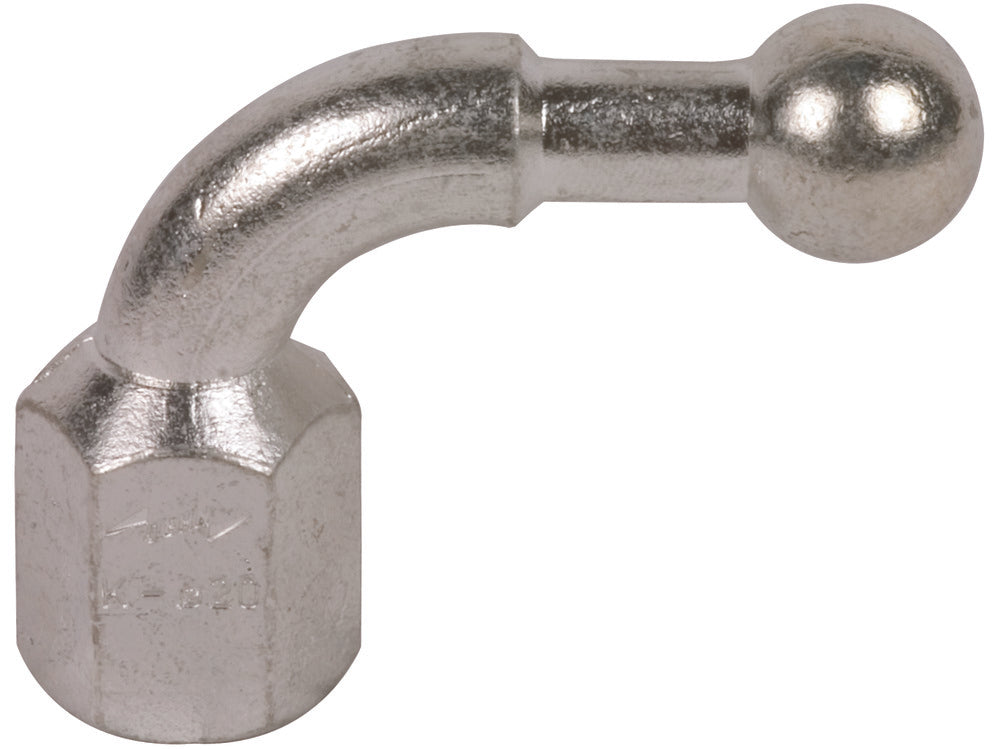

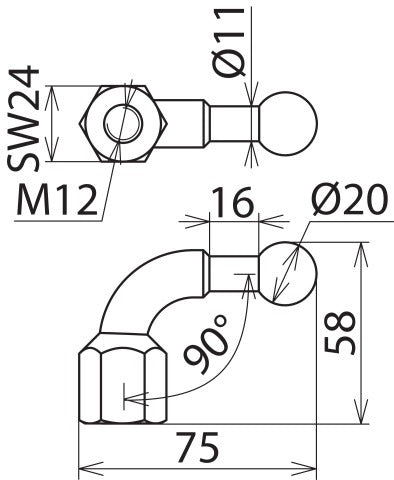

Fixed Ball Point Angled 20mm With M12 Female Thread - 707200
This is a 90° angled fixed ball point with a female thread designed for line and earth connection, complying with EN/IEC 61230 (DIN VDE 0683-100) standards. It features high mechanical strength, thanks to its uncut female thread. Ideally used for securing cable lugs or establishing connections with busbars according to DIN 43673-1. The maximum short-circuit current is rated at 19.5kA. The ball and earth-termination points are 20mm in diameter, with the maximum copper wire cross-section specified at 70mm².
- Regular price
- £61.04
Description
This is a 90° angled fixed ball point with a female thread designed for line and earth connection, complying with EN/IEC 61230 (DIN VDE 0683-100) standards. It features high mechanical strength, thanks to its uncut female thread. Ideally used for securing cable lugs or establishing connections with busbars according to DIN 43673-1. The maximum short-circuit current is rated at 19.5kA. The ball and earth-termination points are 20mm in diameter, with the maximum copper wire cross-section specified at 70mm².
