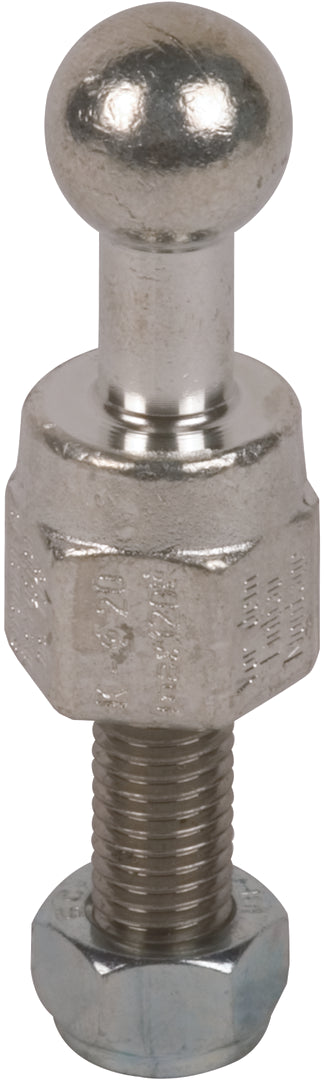

Fixed Ball Point D 20mm With Threaded Pin And Nut M12x45mm - 754238

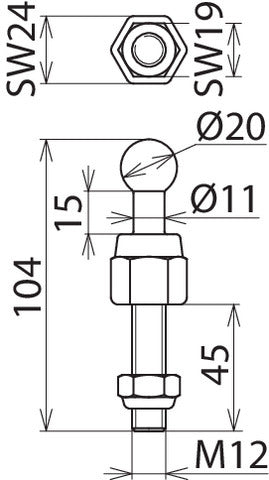

This is a straight fixed ball point boasting a threaded pin and nut, designed for both phase-side and earth-side connection points. It adheres to EN/IEC 61230 (DIN VDE 0683-100) standards, and can be utilized on the conductor and earthing systems. The thread isn't cut, which ensures high mechanical strength. It's also suitable for securing cable lugs or connecting busbars as per DIN 43673-1. The max short circuit current is 33.5kA, the construction is straight with a 20mm diameter fixed point, and the max wire cross-section is 120mm² for copper.
- Regular price
- £27.39
Description
This is a straight fixed ball point boasting a threaded pin and nut, designed for both phase-side and earth-side connection points. It adheres to EN/IEC 61230 (DIN VDE 0683-100) standards, and can be utilized on the conductor and earthing systems. The thread isn't cut, which ensures high mechanical strength. It's also suitable for securing cable lugs or connecting busbars as per DIN 43673-1. The max short circuit current is 33.5kA, the construction is straight with a 20mm diameter fixed point, and the max wire cross-section is 120mm² for copper.
