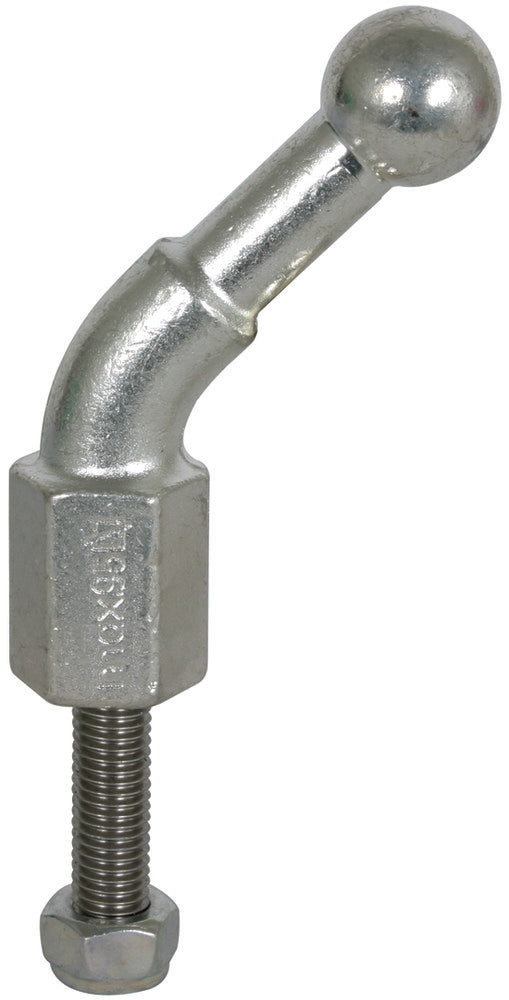

Fixed Ball Point D=25mm Angled 45 degrees With Threaded Bolt M16x4 - 756645

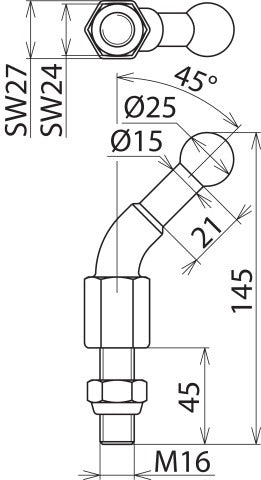

This is a 45° angled fixed ball point with a threaded pin and a self-locking nut, suitable for line and earth connection points in compliance with EN/IEC 61230 (DIN VDE 0683-100). It can be used at the conductor and earth-termination system, providing high mechanical strength due to its female thread, which is not cut. It is ideal for affixing cable lugs or connecting busbars following DIN 43673-1. The device can withstand a maximum short-circuit current of 26.5kA, has a 25mm diameter connection point, and can handle a maximum copper wire cross-section of 95mm².
- Regular price
- £62.22
Description
This is a 45° angled fixed ball point with a threaded pin and a self-locking nut, suitable for line and earth connection points in compliance with EN/IEC 61230 (DIN VDE 0683-100). It can be used at the conductor and earth-termination system, providing high mechanical strength due to its female thread, which is not cut. It is ideal for affixing cable lugs or connecting busbars following DIN 43673-1. The device can withstand a maximum short-circuit current of 26.5kA, has a 25mm diameter connection point, and can handle a maximum copper wire cross-section of 95mm².
