Fixed Earthing Terminal MM10 M12 V4A L245 With Accessories - 478041

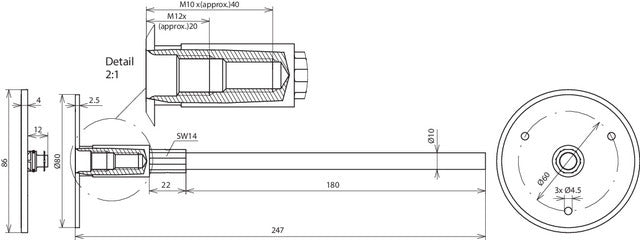

This item is a fixed earthing terminal that complies with EN 62561-1, serving as a corrosion-free link between the down conductor and structural elements, such as building reinforcement or the earth-termination system. It is designed to provide protective and functional equipotential bonding, making it ideal for installation in the formwork. The terminal features an M type with a press-fitted connecting shaft of 10 mm, along with M10 / 12 connection thread. Its AISI 316 (V4A) stainless steel construction offers a length of 50mm, bolt size (M..) 10, a connecting shaft of 180mm, an 80mm diameter of connection plate, and a steel connection tab.
- Regular price
- £29.15
Description
This item is a fixed earthing terminal that complies with EN 62561-1, serving as a corrosion-free link between the down conductor and structural elements, such as building reinforcement or the earth-termination system. It is designed to provide protective and functional equipotential bonding, making it ideal for installation in the formwork. The terminal features an M type with a press-fitted connecting shaft of 10 mm, along with M10 / 12 connection thread. Its AISI 316 (V4A) stainless steel construction offers a length of 50mm, bolt size (M..) 10, a connecting shaft of 180mm, an 80mm diameter of connection plate, and a steel connection tab.
