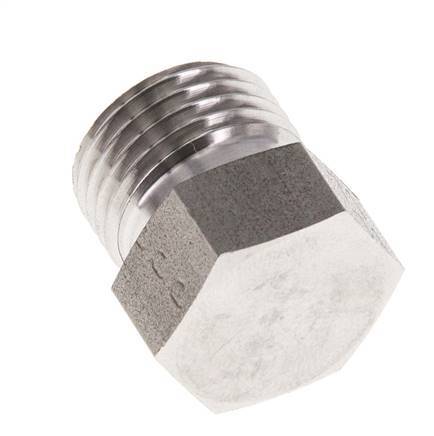

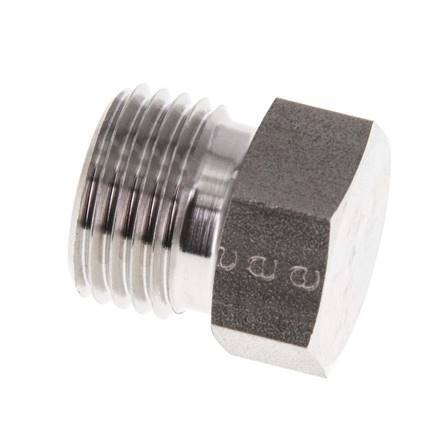

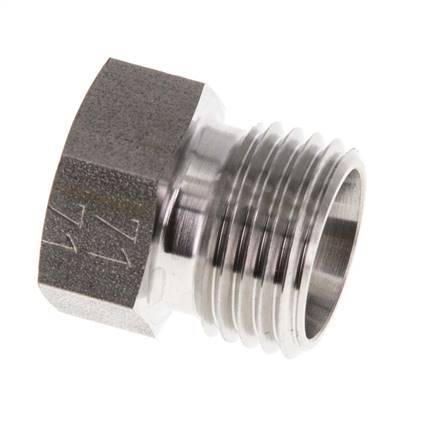

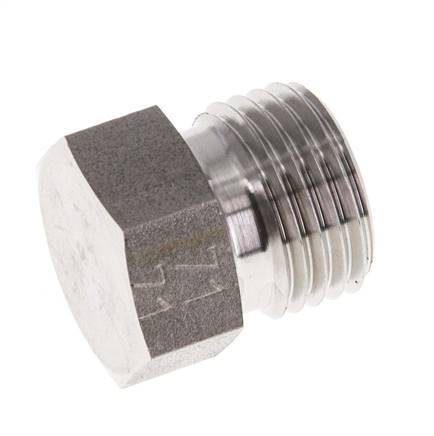

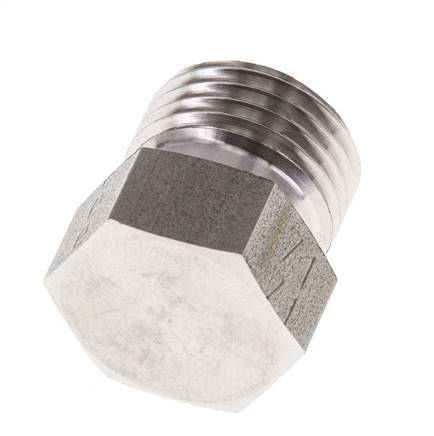

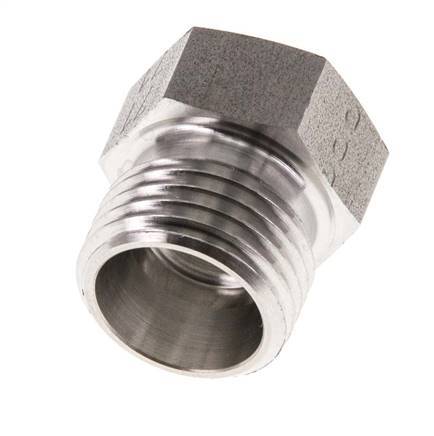

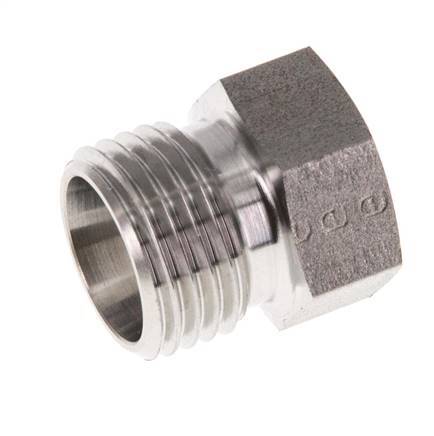

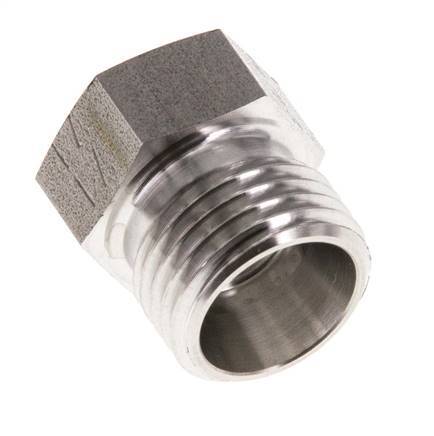

10L Stainless steel Closing Plug for Tubes 315 Bar DIN 2353
This stainless steel closing plug is designed with a cutting ring connection point. It is the plug, so it has no output port. Max pressure of 315 bar (4569 psi). Rated for an L (light) load class. It is made in accordance with the ISO 8434-1 (DIN 2353).
- Regular price
- £10.35
Description
This closing plug is designed with a cutting ring connection point. It is the plug, so it has no output port. It is made out of stainless steel (1.4571). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). According to the DIN 2353, it has an L (light) load class. It is made in accordance with the ISO 8434-1 (DIN 2353).
FL1 series
The FL1 series consists of fittings with 1 connection port, so they are plugs (also called blind fittings), designed for cutting rings and/or threaded connections. Made out of brass, steel, or stainless steel for pipe sizes (outer diameter) ranging from 4 - 42 mm. They are designed to stop the media flow.
