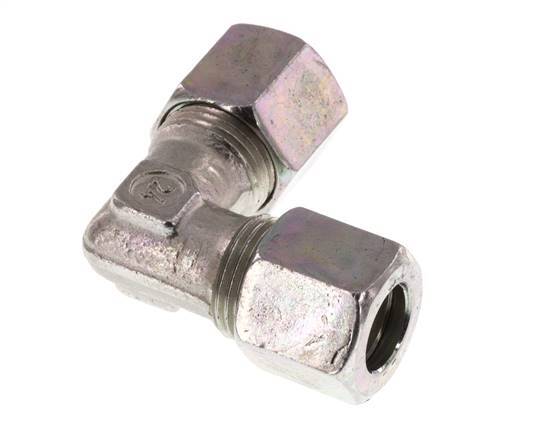

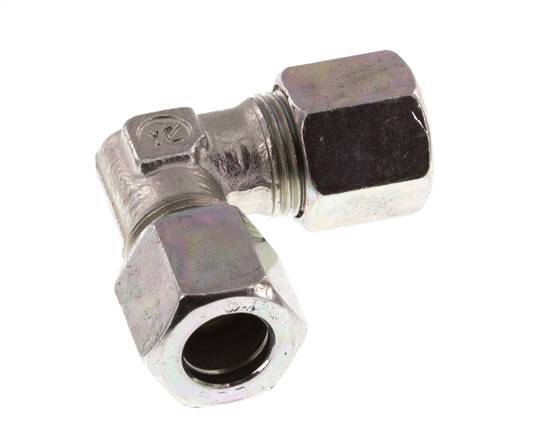

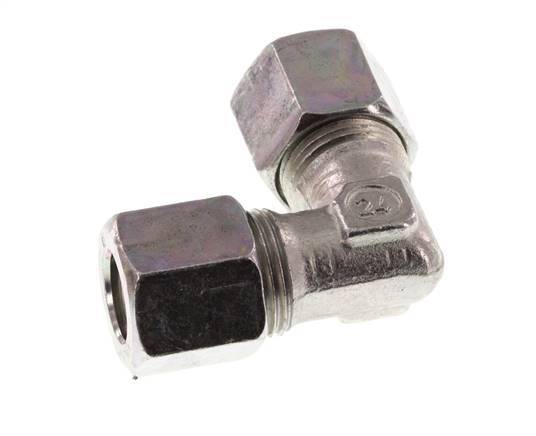

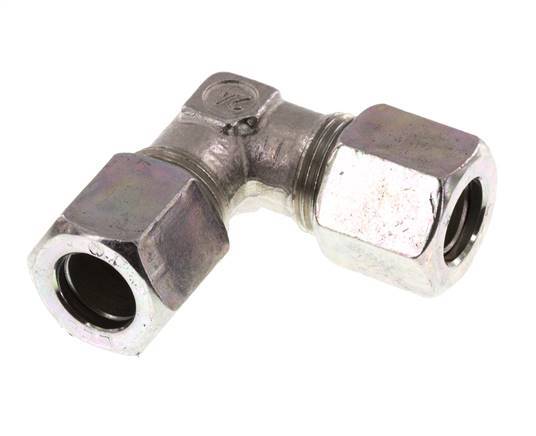

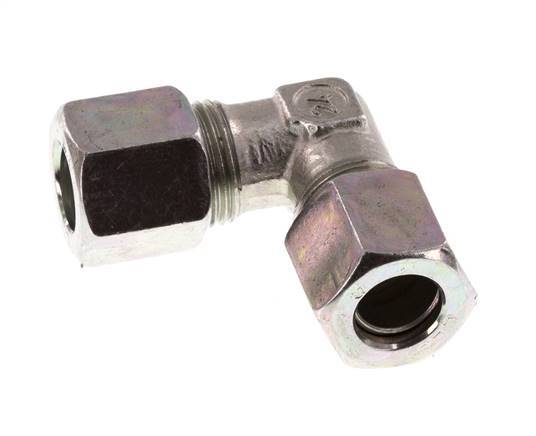

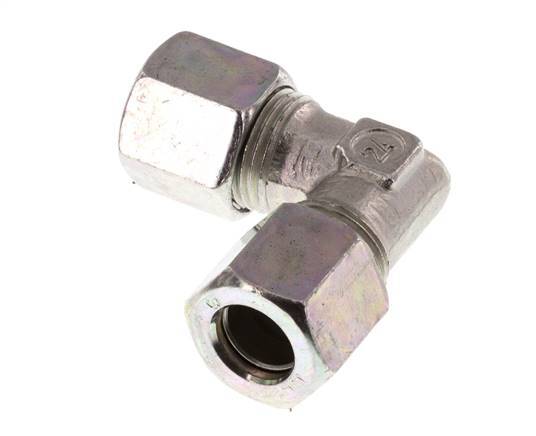

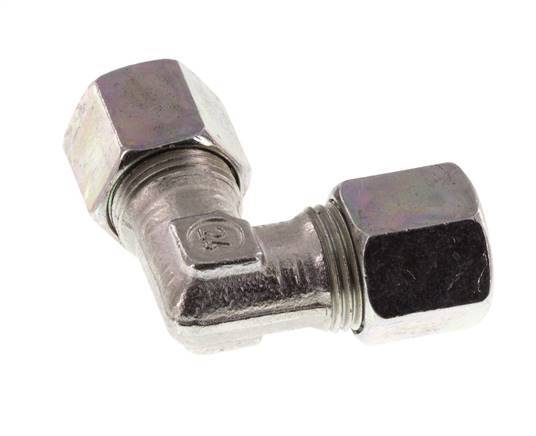

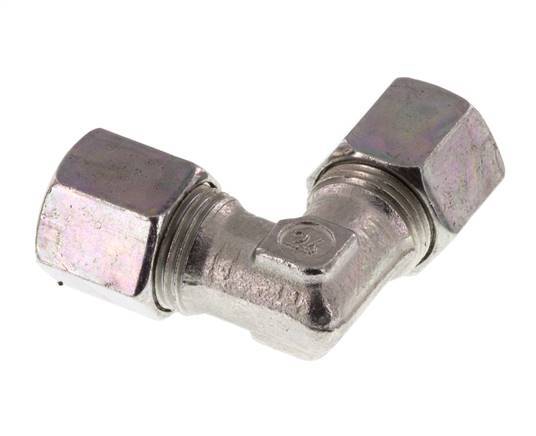

8LL Zinc plated Steel 90 deg Elbow Cutting ring 100 Bar DIN 2353

8LL Zinc plated Steel 90 deg Elbow Cutting ring 100 Bar DIN 2353
8LL Zinc plated Steel 90 deg Elbow Cutting ring 100 Bar DIN 2353
8LL Zinc plated Steel 90 deg Elbow Cutting ring 100 Bar DIN 2353
8LL Zinc plated Steel 90 deg Elbow Cutting ring 100 Bar DIN 2353
8LL Zinc plated Steel 90 deg Elbow Cutting ring 100 Bar DIN 2353
8LL Zinc plated Steel 90 deg Elbow Cutting ring 100 Bar DIN 2353
8LL Zinc plated Steel 90 deg Elbow Cutting ring 100 Bar DIN 2353
8LL Zinc plated Steel 90 deg Elbow Cutting ring 100 Bar DIN 2353
Image may vary slightly
See specifications for accurate information.
Reference: FL2E-C-EZ-08-LL
Brand: Tameson

This steel elbow screw connection is designed with cutting ring connections. Connection 1 is a 8 mm cutting ring. Connection 2 is a 8 mm cutting ring. The input and the output are at a 90° angle. Suitable for temperatures from -40 °C to 120 °C (-40 °F to 248 °F). Max pressure of 100 bar (1450 psi). Rated for an LL (very light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

View all
Regular price
£4.32
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 8 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This elbow screw connection is designed with cutting ring connections. Connection 1 is a 8 mm cutting ring. Connection 2 is a 8 mm cutting ring. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 100 bar (1450 psi). The input and the output are at a 90° angle. According to the DIN 2353, it has an LL (very light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

Cons:

  • Since it has a cutting ring connection, it can only be used once

FL2E-C series

The FL2E-C series are elbow fittings designed for either compression or cutting rings. They have 2 ports and a bend angle of 90 degrees. Made out of either brass, steel, or stainless steel they have a load class of L (light), LL (very light), or S (heavy).
