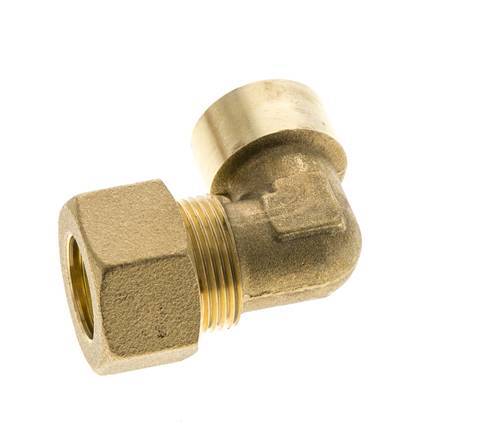

G 1/2'' x 18mm Brass 90 deg Elbow Compression Fitting 67 Bar DIN EN 1254-2
This brass elbow screw connection is designed with a female connection point to a compression ring fitting. Connection 1 has female G 1/2 inch threads. Connection 2 is a 18 mm compression ring. The input and the output are at a 90° angle. Suitable for temperatures from -60 °C to 300 °C (-76 °F to 572 °F). Max pressure of 67 bar (972 psi). It is made in accordance with the DIN EN 1254-2.
- Regular price
- £8.33
Description
This elbow screw connection is designed with a female connection point to a compression ring fitting. Connection 1 has female G 1/2 inch threads. Connection 2 is a 18 mm compression ring. It is an elbow fitting. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 67 bar (972 psi). The input and the output are at a 90° angle. It is made in accordance with the DIN EN 1254-2. They have a 3-part design.
Cons:
- Since it has a compression ring connection, it can only be used once
FL2E-FO series
The FL2E-FO series are elbow fittings with one female connection point and one compression ring connection point at a 90 degree angle. They are made out of brass. Female thread range of G 1/8 up to 1/2 inch and a compression ring fitting size range of 4 to 18 mm.
