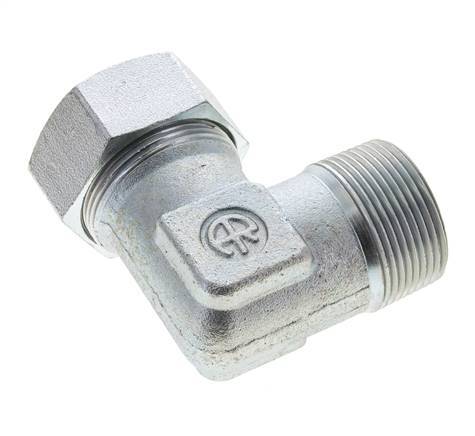

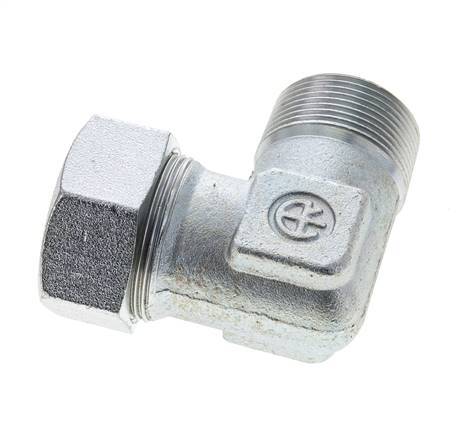

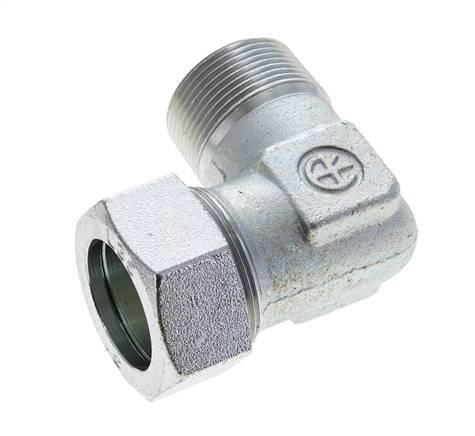

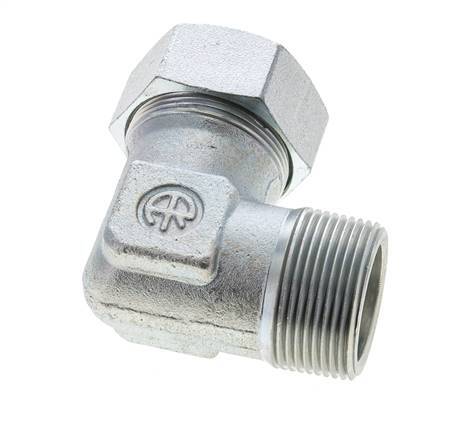

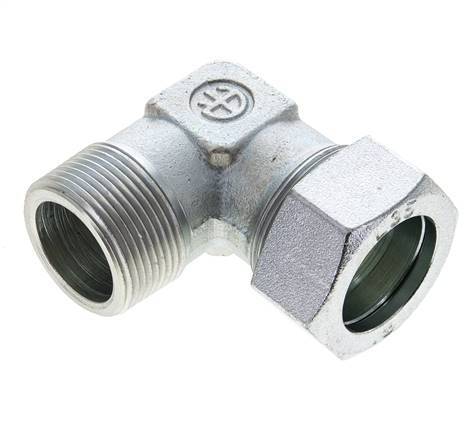

1 1/4'' NPT Male x 35L Zinc plated Steel 90 deg Elbow Cutting ring 160 Bar DIN 2353

1 1/4'' NPT Male x 35L Zinc plated Steel 90 deg Elbow Cutting ring 160 Bar DIN 2353
Image may vary slightly
See specifications for accurate information.
Reference: FL2E-MC-EZ-114N-35-L
Brand: Tameson

This steel elbow screw in connection is designed with female threads and a cutting ring connection. Connection 1 has male NPT 1 1/4 inch threads. Connection 2 is a 35 mm cutting ring. The input and the output are at a 90° angle. Suitable for temperatures from -40 °C to 120 °C (-40 °F to 248 °F). Max pressure of 160 bar (2321 psi). Rated for an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

View all
Regular price
£38.66
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This elbow screw in connection is designed with female threads and a cutting ring connection. Connection 1 has male NPT 1 1/4 inch threads. Connection 2 is a 35 mm cutting ring. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 160 bar (2321 psi). The input and the output are at a 90° angle. According to the DIN 2353, it has an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.

Cons:

  • Since it has a cutting ring connection, it can only be used once

FL2E-MC series

The FL2E-MC series are elbow fittings with male threads and then either a compression ring or a cutting ring connection point. They are at a 90 degree bend and made out of brass, steel, or stainless steel.
