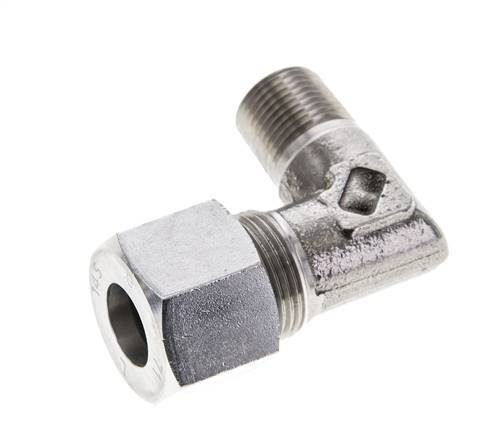

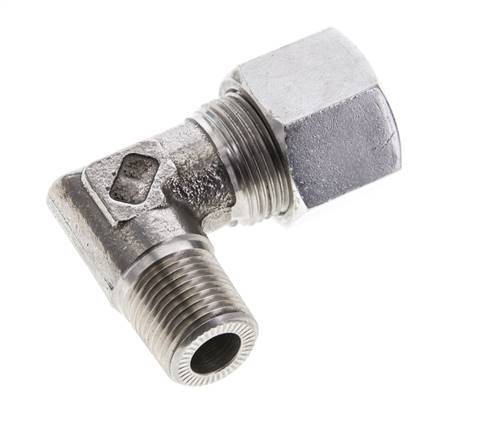

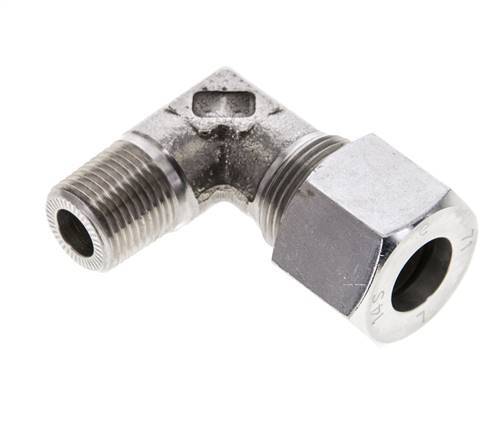

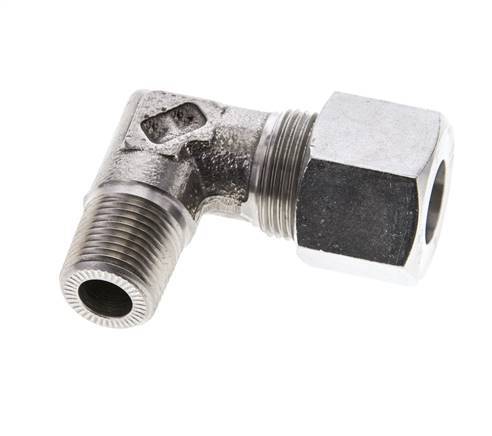

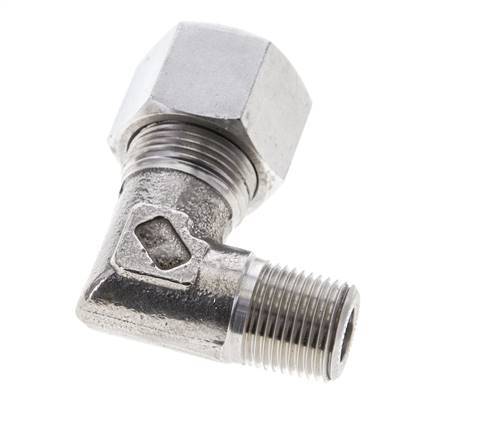

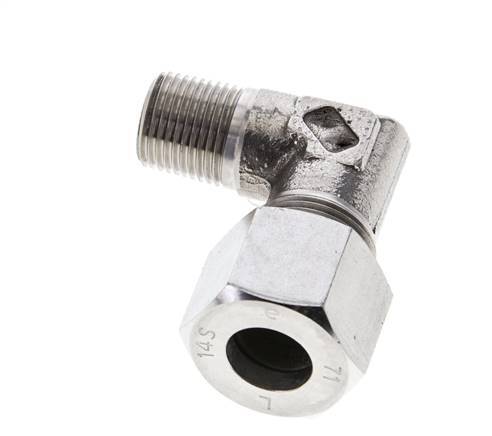

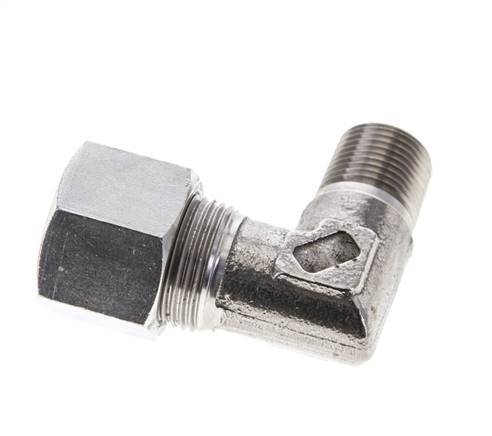

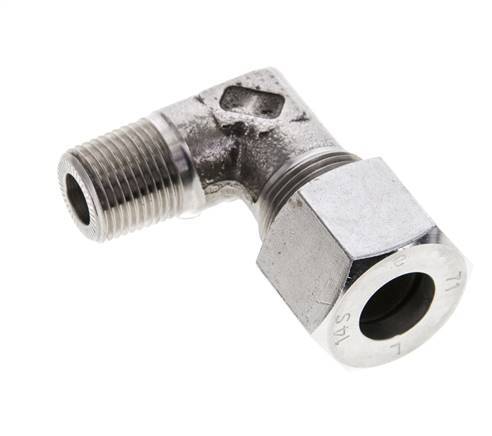

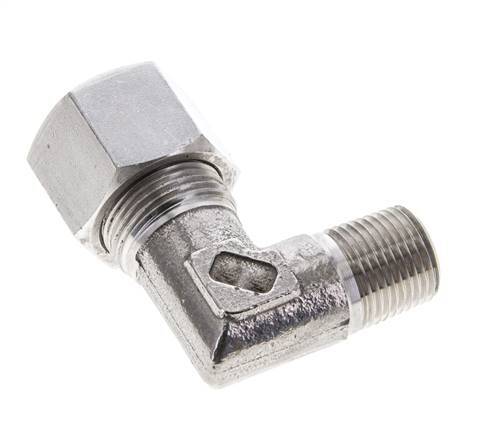

3/8'' NPT Male x 14S Stainless steel 90 deg Elbow Cutting ring 630 Bar DIN 2353

3/8'' NPT Male x 14S Stainless steel 90 deg Elbow Cutting ring 630 Bar DIN 2353
Image may vary slightly
See specifications for accurate information.
Reference: FL2E-MC-ST-038N-14-S
Brand: Tameson

This stainless steel elbow screw in connection is designed with female threads and a cutting ring connection. Connection 1 has male NPT 3/8 inch threads. Connection 2 is a 14 mm cutting ring. The input and the output are at a 90° angle. Suitable for temperatures from -60 °C to 400 °C (-76 °F to 752 °F). Max pressure of 630 bar (9138 psi). Rated for an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

View all
Regular price
£49.50
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This elbow screw in connection is designed with female threads and a cutting ring connection. Connection 1 has male NPT 3/8 inch threads. Connection 2 is a 14 mm cutting ring. It is an elbow fitting. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi). The input and the output are at a 90° angle. According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.

Cons:

  • Since it has a cutting ring connection, it can only be used once

FL2E-MC series

The FL2E-MC series are elbow fittings with male threads and then either a compression ring or a cutting ring connection point. They are at a 90 degree bend and made out of brass, steel, or stainless steel.
