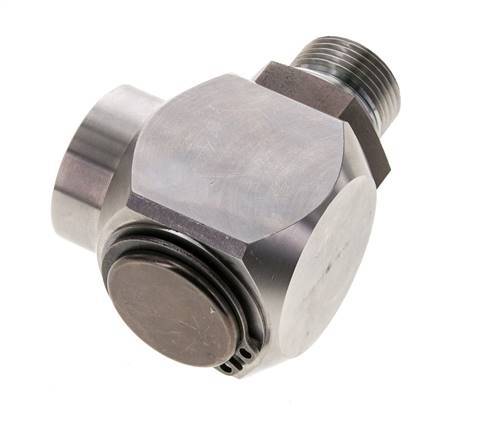

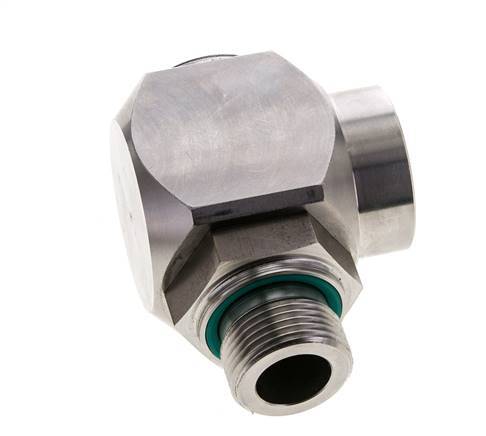

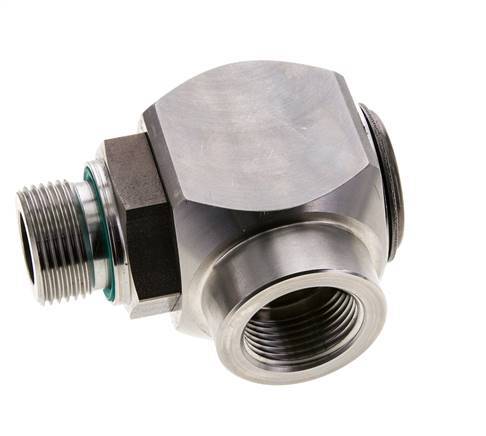

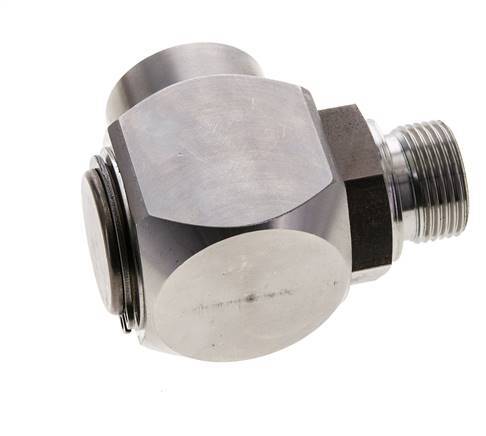

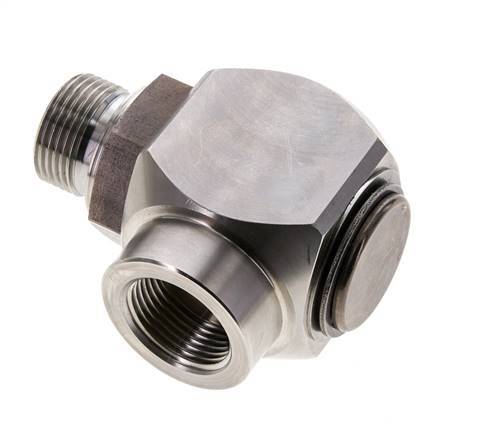

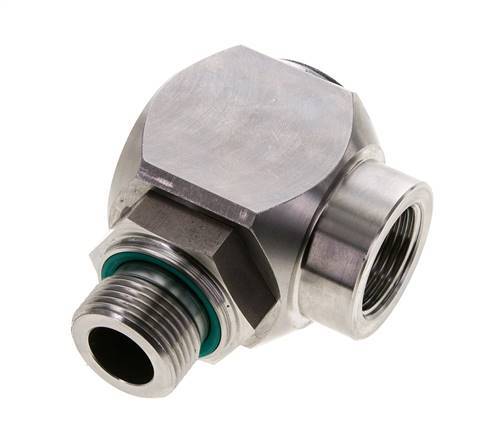

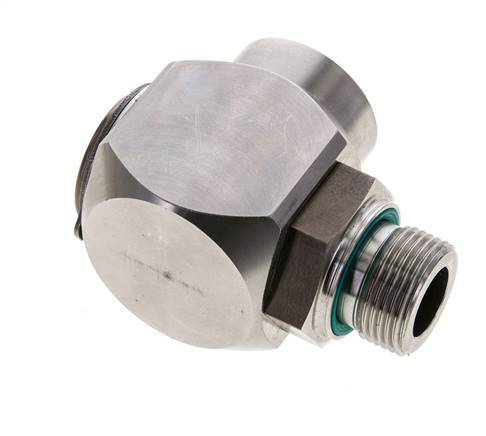

G 3/4'' M/F Stainless steel 90 deg Elbow Swivel Joint High-pressure 250 Bar - Hydraulic
This stainless steel high-pressure elbow swivel joint is designed with a female and a male connection point. Connection 1 has male G 3/4 inch threads. The sealing is FKM / PTFE. The input and the output are at a 90° angle. It is rotatable. Suitable for temperatures from -20 °C to 120 °C (-4 °F to 248 °F). Max pressure of 250 bar (3626 psi).
- Regular price
- £683.57
Description
This high-pressure elbow swivel joint is designed with a female and a male connection point. Connection 1 has male G 3/4 inch threads. It comes with a gasket to ensure a proper seal can be made. It is an elbow fitting. It is made out of stainless steel. It has a FKM / PTFE seal. It is suitable for media within a temperature range of -20 °C to 120 °C (-4 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 250 bar (3626 psi). The input and the output are at a 90° angle. It can withstand 1 rotations per minute.
FL2E-MF-R series
The FL2E-MF-R series are elbow fittings with male threads and female threads that are rotable between 0.5 and 10 rotatations per minue. They are bent at 90 degrees and made out of steel and stainless steel.
