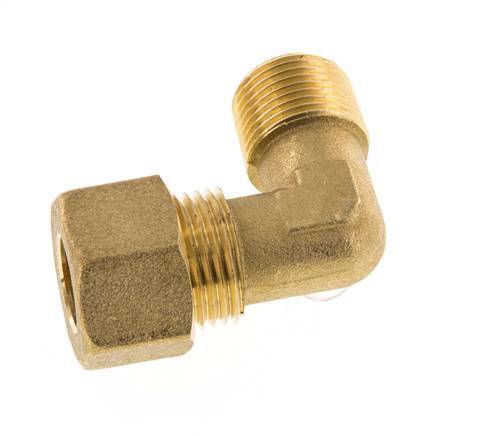

R 3/8'' Male x 12mm Brass 90 deg Elbow Compression Fitting 75 Bar DIN EN 1254-2
This brass elbow screw in connection is designed with female threads and a compression ring connection. Connection 1 has R 3/8 inch threads. Connection 2 is a 12 mm compression ring. The input and the output are at a 90° angle. Suitable for temperatures from -60 °C to 300 °C (-76 °F to 572 °F). Max pressure of 75 bar (1088 psi). It is made in accordance with the DIN EN 1254-2.
- Regular price
- £5.30
Description
This elbow screw in connection is designed with female threads and a compression ring connection. Connection 1 has R 3/8 inch threads. Connection 2 is a 12 mm compression ring. It is an elbow fitting. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 75 bar (1088 psi). The input and the output are at a 90° angle. It is made in accordance with the DIN EN 1254-2. They have a 3-part design.
Cons:
- Since it has a compression ring connection, it can only be used once
FL2E-MC series
The FL2E-MC series are elbow fittings with male threads and then either a compression ring or a cutting ring connection point. They are at a 90 degree bend and made out of brass, steel, or stainless steel.
