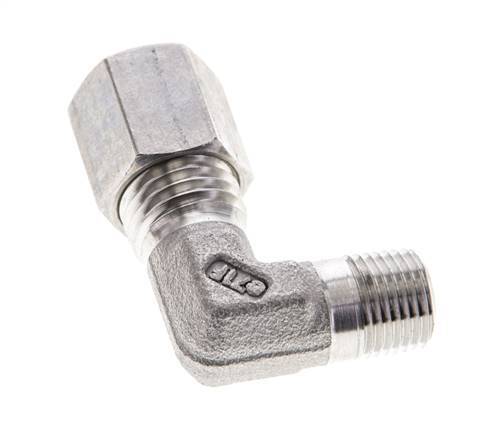

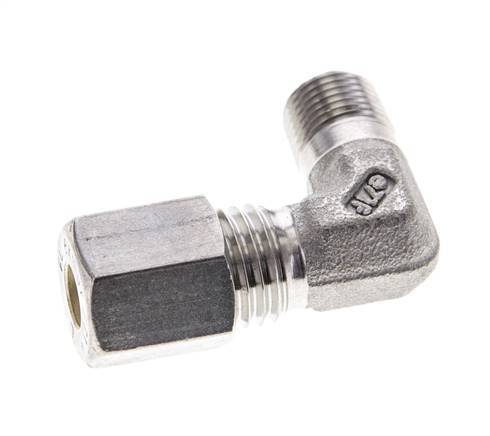

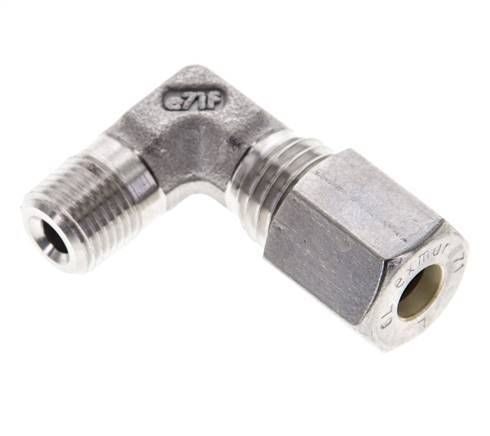

1/8'' NPT Male x 6L Stainless steel 90 deg Elbow Compression Fitting 315 Bar DIN 2353
This stainless steel elbow screw in connection is designed with female threads and a compression ring connection. Connection 1 has male NPT 1/8 inch threads. Connection 2 is a 6 mm compression ring. The input and the output are at a 90° angle. Suitable for temperatures from -60 °C to 400 °C (-76 °F to 752 °F). Max pressure of 315 bar (4569 psi). Rated for an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £22.41
Description
This elbow screw in connection is designed with female threads and a compression ring connection. Connection 1 has male NPT 1/8 inch threads. Connection 2 is a 6 mm compression ring. It is an elbow fitting. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). The input and the output are at a 90° angle. According to the DIN 2353, it has an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.
Cons:
- Since it has a compression ring connection, it can only be used once
FL2E-MC series
The FL2E-MC series are elbow fittings with male threads and then either a compression ring or a cutting ring connection point. They are at a 90 degree bend and made out of brass, steel, or stainless steel.
