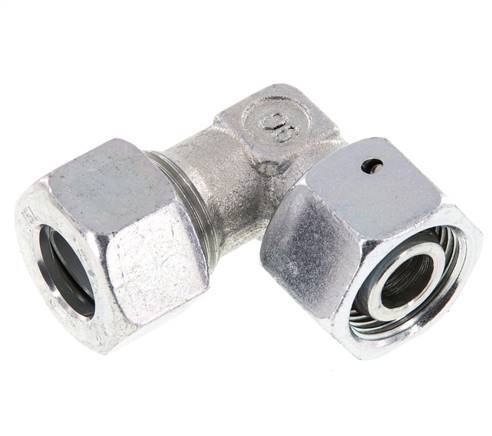

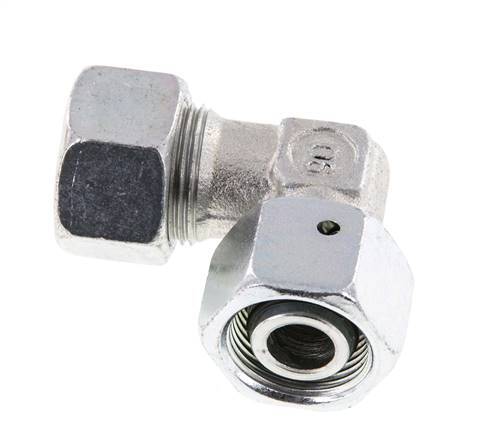

M22x1.5 x 15L Zinc plated Steel Adjustable 90 deg Elbow Fitting with Sealing cone and O-ring 315 Bar DIN 2353

M22x1.5 x 15L Zinc plated Steel Adjustable 90 deg Elbow Fitting with Sealing cone and O-ring 315 Bar DIN 2353
M22x1.5 x 15L Zinc plated Steel Adjustable 90 deg Elbow Fitting with Sealing cone and O-ring 315 Bar DIN 2353
M22x1.5 x 15L Zinc plated Steel Adjustable 90 deg Elbow Fitting with Sealing cone and O-ring 315 Bar DIN 2353
M22x1.5 x 15L Zinc plated Steel Adjustable 90 deg Elbow Fitting with Sealing cone and O-ring 315 Bar DIN 2353
M22x1.5 x 15L Zinc plated Steel Adjustable 90 deg Elbow Fitting with Sealing cone and O-ring 315 Bar DIN 2353
M22x1.5 x 15L Zinc plated Steel Adjustable 90 deg Elbow Fitting with Sealing cone and O-ring 315 Bar DIN 2353
M22x1.5 x 15L Zinc plated Steel Adjustable 90 deg Elbow Fitting with Sealing cone and O-ring 315 Bar DIN 2353
M22x1.5 x 15L Zinc plated Steel Adjustable 90 deg Elbow Fitting with Sealing cone and O-ring 315 Bar DIN 2353
Image may vary slightly
See specifications for accurate information.
Reference: FL2E-NC-EZN-22-15-LO
Brand: Tameson

This steel elbow screw connection is designed with a cutting ring connection point and a union nut connection point. Connection 1 is a 22 mm union nut. Connection 2 is a 15 mm cutting ring. The sealing is NBR. The input and the output are at a 90° angle. Suitable for temperatures from -35 °C to 100 °C (-31 °F to 212 °F). Max pressure of 315 bar (4569 psi). Rated for an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

View all
Regular price
£7.57
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 8 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This elbow screw connection is designed with a cutting ring connection point and a union nut connection point. Connection 1 is a 22 mm union nut. Connection 2 is a 15 mm cutting ring. It comes with a gasket to ensure a proper seal can be made. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It has a NBR seal. It is suitable for media within a temperature range of -35 °C to 100 °C (-31 °F to 212 °F). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). The input and the output are at a 90° angle. According to the DIN 2353, it has an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

Cons:

  • Since it has a cutting ring connection, it can only be used once

FL2E-NC series

The FL2E-NC series are elbow fittings with a union nut and then either a compression ring or cutting ring connection point. They are at a 90 degree bend and made out of steel or stainless steel.
