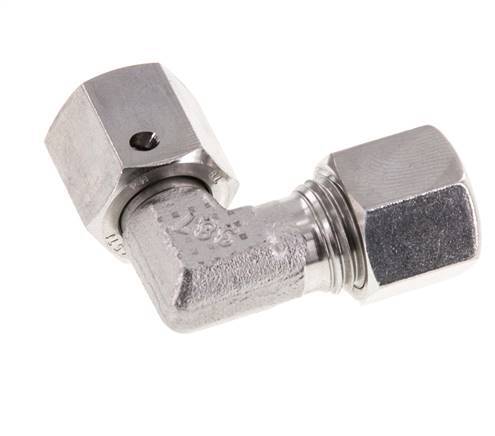

M14x1.5 x 8L Stainless steel Adjustable 90 deg Elbow Fitting with Sealing cone and O-ring 315 Bar DIN 2353
This stainless steel elbow screw connection is designed with a cutting ring connection point and a union nut connection point. Connection 1 is a 14 mm union nut. Connection 2 is a 8 mm cutting ring. The sealing is FKM / PTFE. The input and the output are at a 90° angle. Suitable for temperatures from -20 °C to 200 °C (-4 °F to 392 °F). Max pressure of 315 bar (4569 psi). Rated for an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £28.80
Description
This elbow screw connection is designed with a cutting ring connection point and a union nut connection point. Connection 1 is a 14 mm union nut. Connection 2 is a 8 mm cutting ring. It comes with a gasket to ensure a proper seal can be made. It is an elbow fitting. It is made out of stainless steel (1.4571). It has a FKM / PTFE seal. It is suitable for media within a temperature range of -20 °C to 200 °C (-4 °F to 392 °F). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). The input and the output are at a 90° angle. According to the DIN 2353, it has an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
Cons:
- Since it has a cutting ring connection, it can only be used once
FL2E-NC series
The FL2E-NC series are elbow fittings with a union nut and then either a compression ring or cutting ring connection point. They are at a 90 degree bend and made out of steel or stainless steel.
