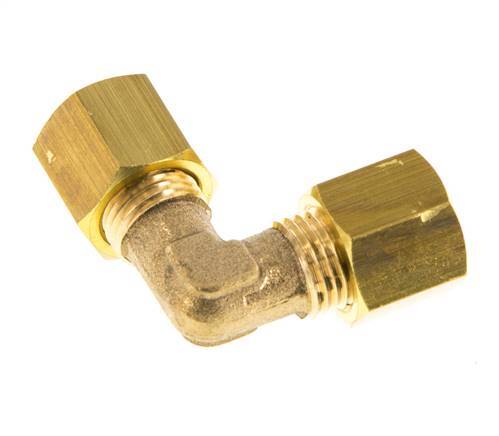

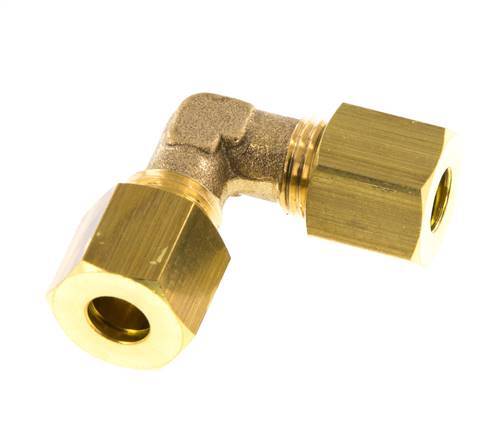

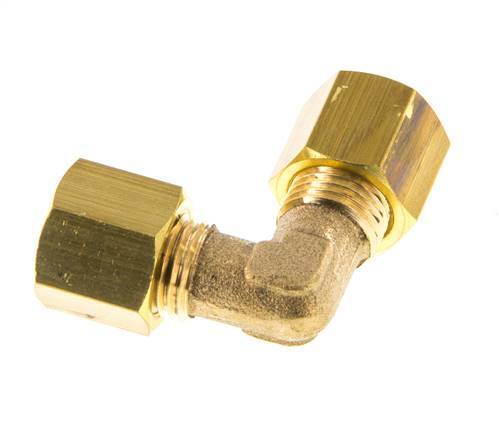

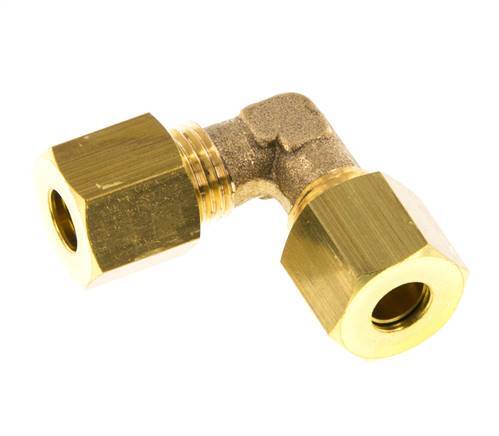

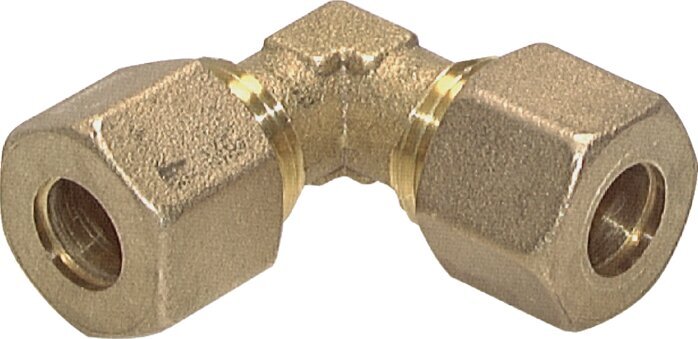

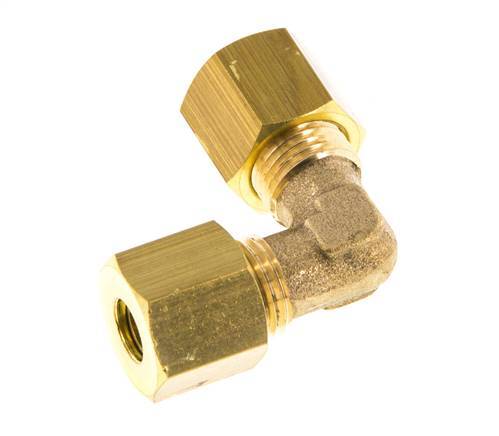

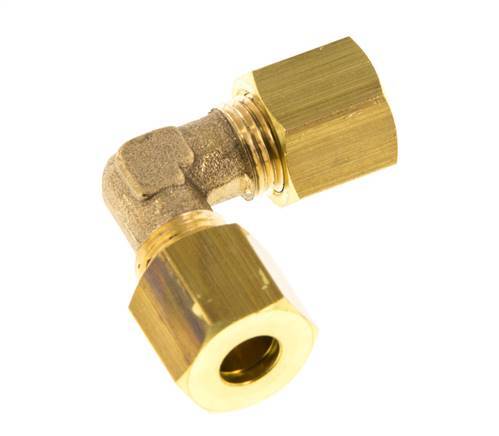

6mm Brass 90 deg Elbow Compression Fitting 150 Bar DIN EN 1254-2 [2 Pieces]

6mm Brass 90 deg Elbow Compression Fitting 150 Bar DIN EN 1254-2 [2 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: F2PCM-X2
Brand: Tameson

This brass elbow screw connection is designed with cutting ring connections. Connection 1 is a 6 mm compression ring. Connection 2 is a 6 mm compression ring. The input and the output are at a 90° angle. Suitable for temperatures from -60 °C to 300 °C (-76 °F to 572 °F). Max pressure of 150 bar (2176 psi). It is made in accordance with the DIN EN 1254-2.

Contains 2 pieces

View all
Regular price
£7.14
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 9 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This elbow screw connection is designed with cutting ring connections. Connection 1 is a 6 mm compression ring. Connection 2 is a 6 mm compression ring. It is an elbow fitting. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 150 bar (2176 psi). The input and the output are at a 90° angle. It is made in accordance with the DIN EN 1254-2.

Cons:

  • Since it has a compression ring connection, it can only be used once

FL2E-C series

The FL2E-C series are elbow fittings designed for either compression or cutting rings. They have 2 ports and a bend angle of 90 degrees. Made out of either brass, steel, or stainless steel they have a load class of L (light), LL (very light), or S (heavy).
