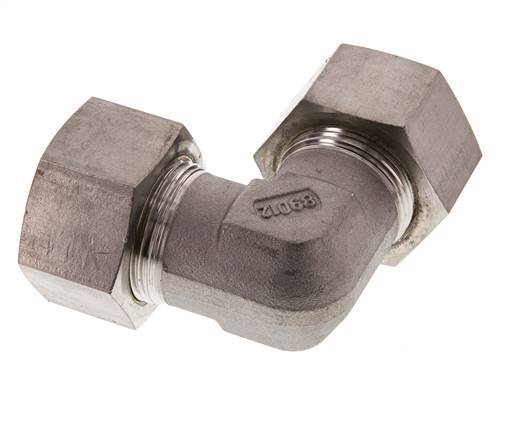

25S Stainless steel 90 deg Elbow Compression Fitting 400 Bar DIN 2353
This stainless steel elbow screw connection is designed with cutting ring connections. Connection 1 is a 25 mm compression ring. Connection 2 is a 25 mm compression ring. The input and the output are at a 90° angle. Suitable for temperatures from -60 °C to 400 °C (-76 °F to 752 °F). Max pressure of 400 bar (5802 psi). Rated for an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £203.86
Description
This elbow screw connection is designed with cutting ring connections. Connection 1 is a 25 mm compression ring. Connection 2 is a 25 mm compression ring. It is an elbow fitting. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). The input and the output are at a 90° angle. According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
Cons:
- Since it has a compression ring connection, it can only be used once
FL2E-C series
The FL2E-C series are elbow fittings designed for either compression or cutting rings. They have 2 ports and a bend angle of 90 degrees. Made out of either brass, steel, or stainless steel they have a load class of L (light), LL (very light), or S (heavy).
