Reference: FL2S-C-ST-06-LL
Brand: Tameson

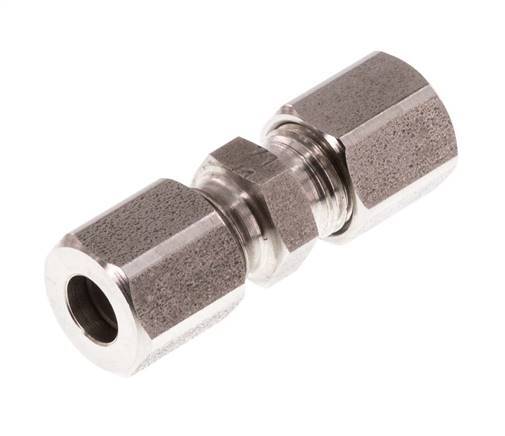

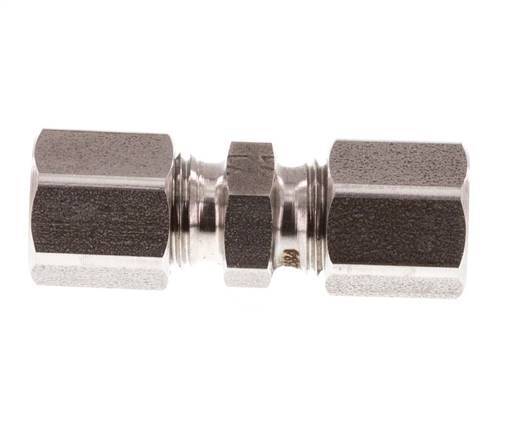

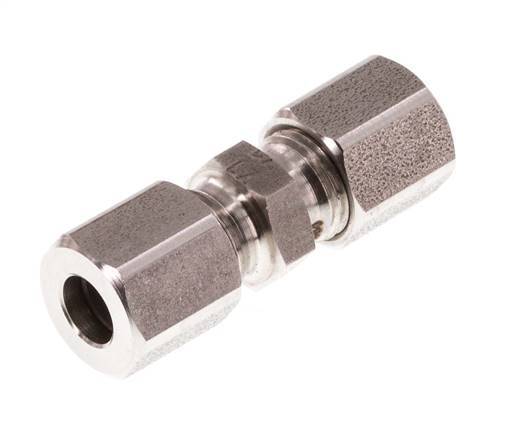

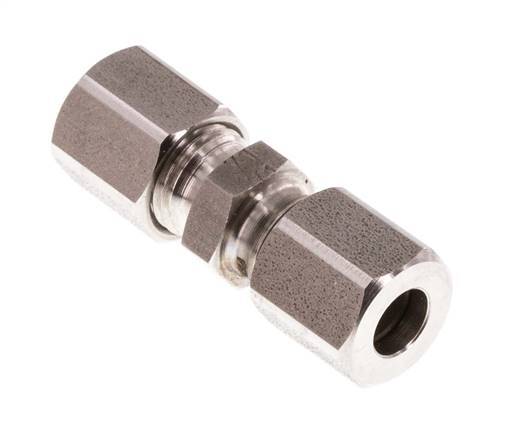

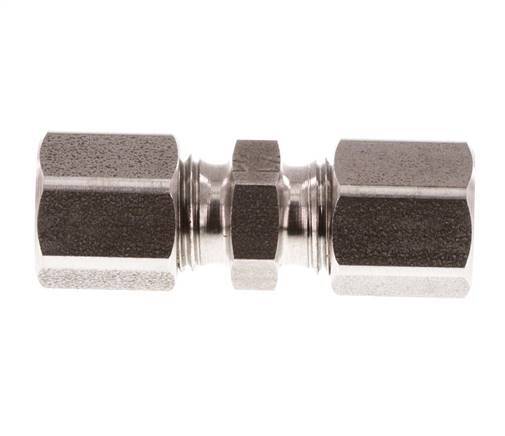

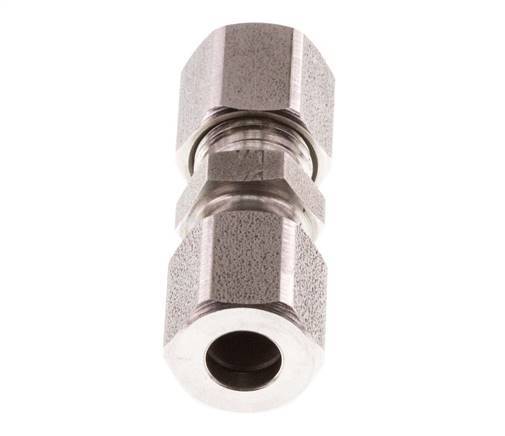

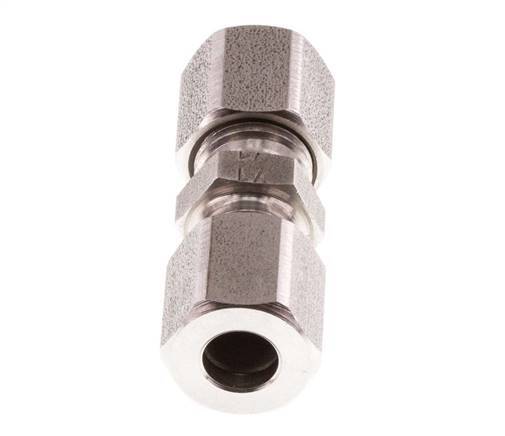

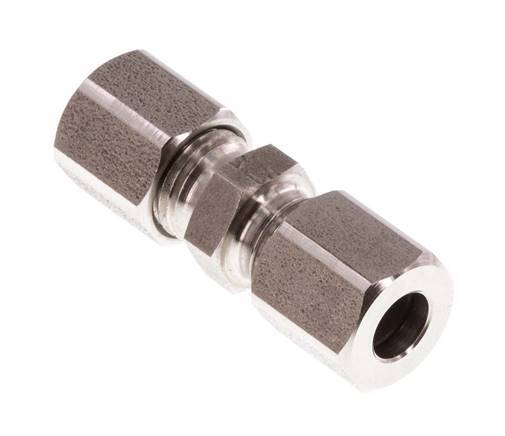

This stainless steel straight screw connection is designed with two cutting ring connection points. Connection 1 is a 6 mm cutting ring. Connection 2 is a 6 mm cutting ring. Suitable for temperatures from -60 °C to 400 °C (-76 °F to 752 °F). Max pressure of 100 bar (1450 psi). Rated for an LL (very light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

View all
Regular price
£19.01
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads

This straight screw connection is designed with two cutting ring connection points. Connection 1 is a 6 mm cutting ring. Connection 2 is a 6 mm cutting ring. It is a straight fitting. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 100 bar (1450 psi). According to the DIN 2353, it has an LL (very light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

Cons:

  • Since it has a compression ring connection, it can only be used once

FL2S-C series

The FL2S-C series are straight fittings designed with either 2 compression ring connection points or 2 cutting ring connection points. They are made out of steel.
