Reference: FL2S-FC-ST-114G-30-S
Brand: Tameson

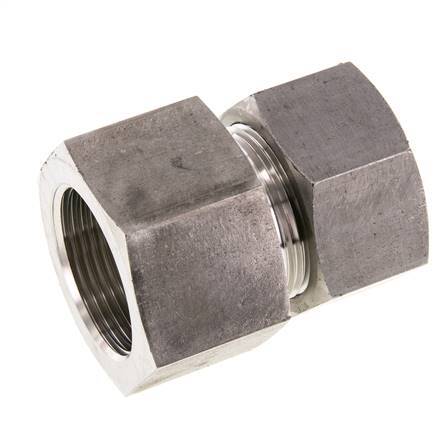

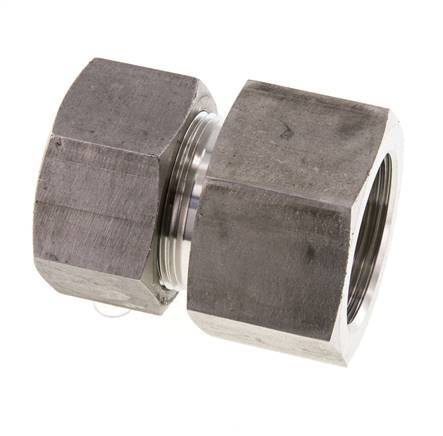

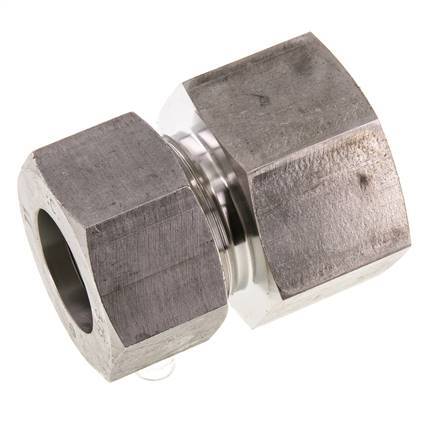

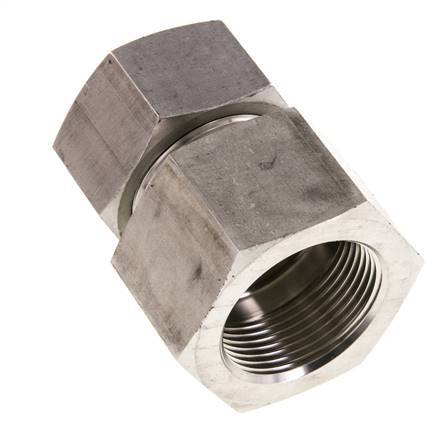

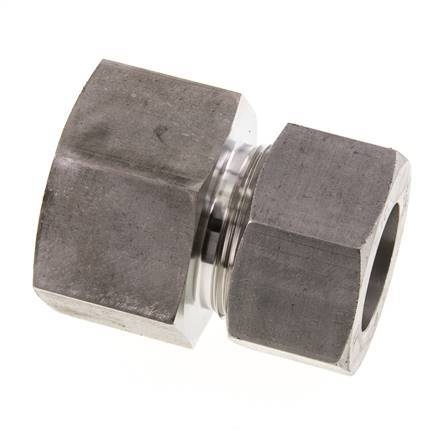

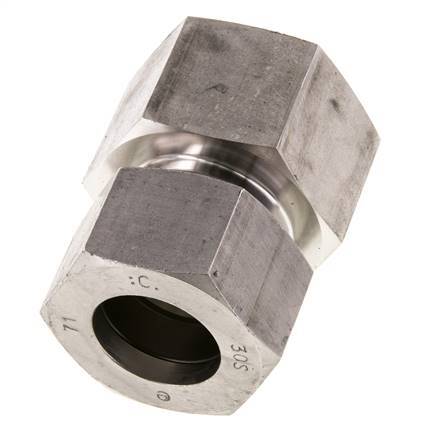

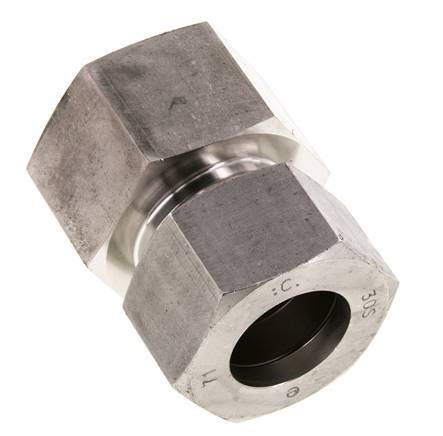

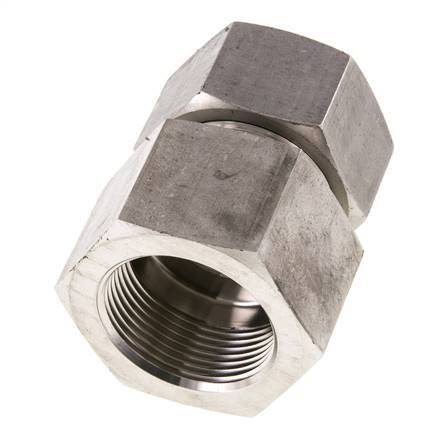

This stainless steel straight screwed-on screw connections is designed with female threads and a cutting ring connection point. Connection 1 has female G 1 1/4 inch threads. Connection 2 is a 30 mm cutting ring. Suitable for temperatures from -60 °C to 400 °C (-76 °F to 752 °F). Max pressure of 400 bar (5802 psi). Rated for an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

View all
Regular price
£138.19
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This straight screwed-on screw connections is designed with female threads and a cutting ring connection point. Connection 1 has female G 1 1/4 inch threads. Connection 2 is a 30 mm cutting ring. It is a straight fitting. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.

Cons:

  • Since it has a cutting ring connection, it can only be used once

FL2S-FC series

The FL2S-FC series are straight fittings with one female connection point and then either a compression ring or cutting ring connection point. Made out of brass, steel, and stainless steel they are a 3-part design.
