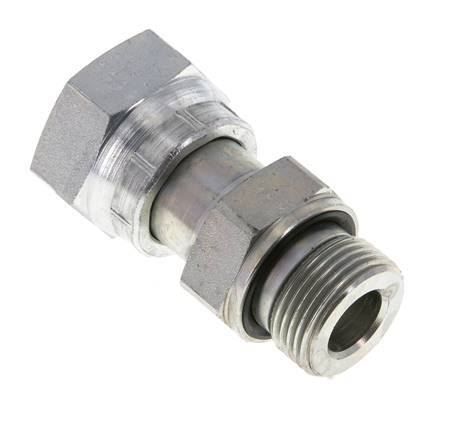

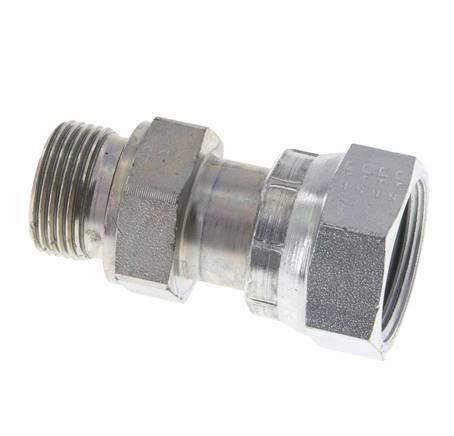

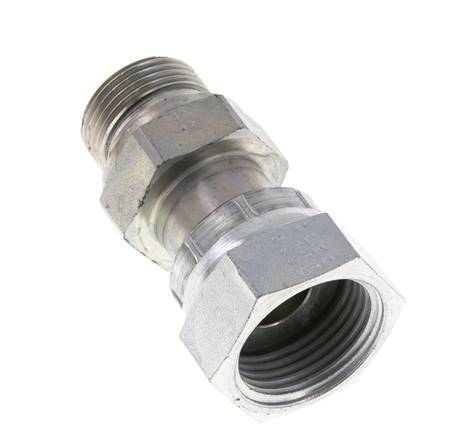

UN 1-3/16''-12 x G 3/4'' F/M Zinc plated Steel Reducing Adapter ORFS 400 Bar - Hydraulic

UN 1-3/16''-12 x G 3/4'' F/M Zinc plated Steel Reducing Adapter ORFS 400 Bar - Hydraulic
Image may vary slightly
See specifications for accurate information.
Reference: FL2S-FM-EZE-103U-034G-O
Brand: Tameson

This steel straight ORFS screwed connection is designed with male g threads and a female orfs connection. Connection 1 has ORFS female UN 1-3/16inch-12 threads. Connection 2 has male G 3/4 inch threads. The sealing is elastomer. Max pressure of 400 bar (5802 psi).

View all
Regular price
£30.64
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This straight ORFS screwed connection is designed with male G threads and a female ORFS connection. Connection 1 has ORFS female UN 1-3/16inch-12 threads. Connection 2 has male G 3/4 inch threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It has a elastomer seal. At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi).

FL2S-FM-O series

The FL2S-FM-O series are straight fittings with male G threads and a female ORFS connection point. They are made out of steel.
