G 1/2'' F/M Zinc plated Steel Swivel Joint 400 Bar - Hydraulic - High-pressure

G 1/2'' F/M Zinc plated Steel Swivel Joint 400 Bar - Hydraulic - High-pressure
Image may vary slightly
See specifications for accurate information.
Reference: FL2S-FM-EZFP-012G-R
Brand: Tameson

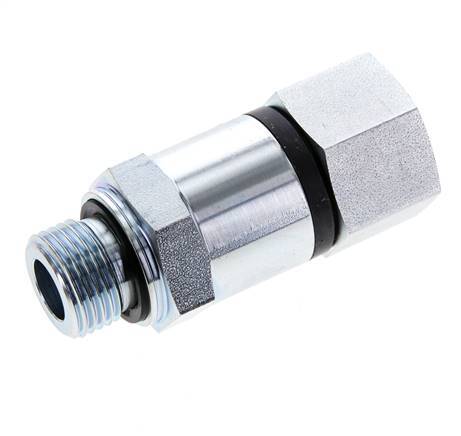

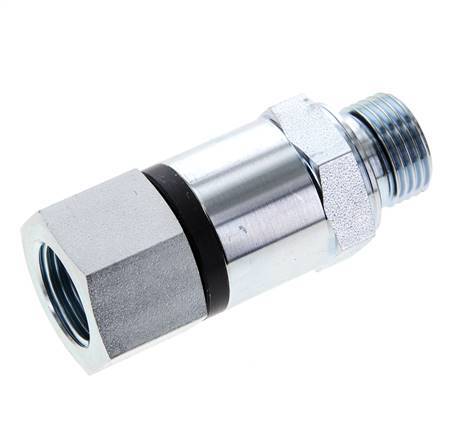

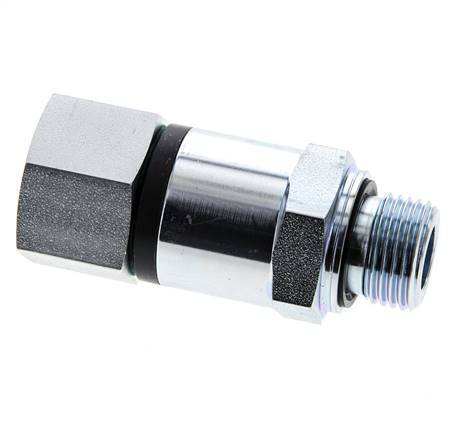

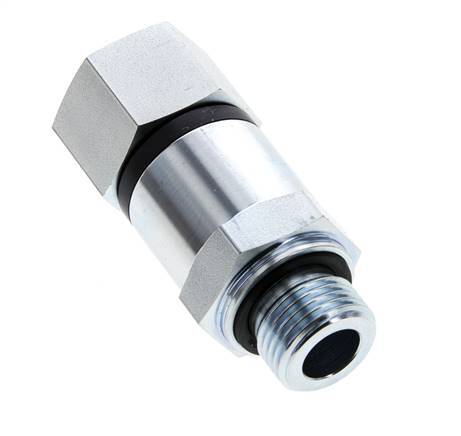

This steel high-pressure rotary joint is designed with female g threads and male g threads. Connection 1 has female G 1/2 inch threads. Connection 2 has male G 1/2 inch threads. The sealing is FKM / PTFE. It is rotatable. Suitable for temperatures from -20 °C to 120 °C (-4 °F to 248 °F). Max pressure of 400 bar (5802 psi).

View all
Regular price
£204.16
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This high-pressure rotary joint is designed with female G threads and male G threads. Connection 1 has female G 1/2 inch threads. Connection 2 has male G 1/2 inch threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It has a FKM / PTFE seal. It is suitable for media within a temperature range of -20 °C to 120 °C (-4 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). It can withstand 5 rotations per minute.

FL2S-FM-R series

The FL2S-FM-R series are straight fittings with female G threads and male G threads. They are meantu for high pressure applications (up to 500 bar) and made from steel or stainless steel.
