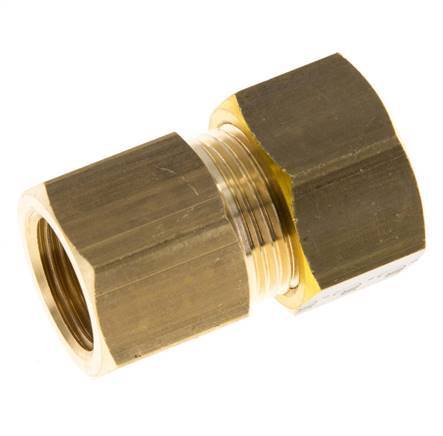

G 3/8'' x 15mm Brass Straight Compression Fitting 82 Bar DIN EN 1254-2
This brass straight screwed-on screw connections is designed with female threads and a compression ring connection point. Connection 1 has female G 3/8 inch threads. Connection 2 is a 15 mm compression ring. Suitable for temperatures from -60 °C to 300 °C (-76 °F to 572 °F). Max pressure of 82 bar (1189 psi). It is made in accordance with the DIN EN 1254-2.
- Regular price
- £15.97
Description
This straight screwed-on screw connections is designed with female threads and a compression ring connection point. Connection 1 has female G 3/8 inch threads. Connection 2 is a 15 mm compression ring. It is a straight fitting. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 82 bar (1189 psi). It is made in accordance with the DIN EN 1254-2. They have a 3-part design.
Cons:
- Since it has a compression ring connection, it can only be used once
FL2S-FC series
The FL2S-FC series are straight fittings with one female connection point and then either a compression ring or cutting ring connection point. Made out of brass, steel, and stainless steel they are a 3-part design.
